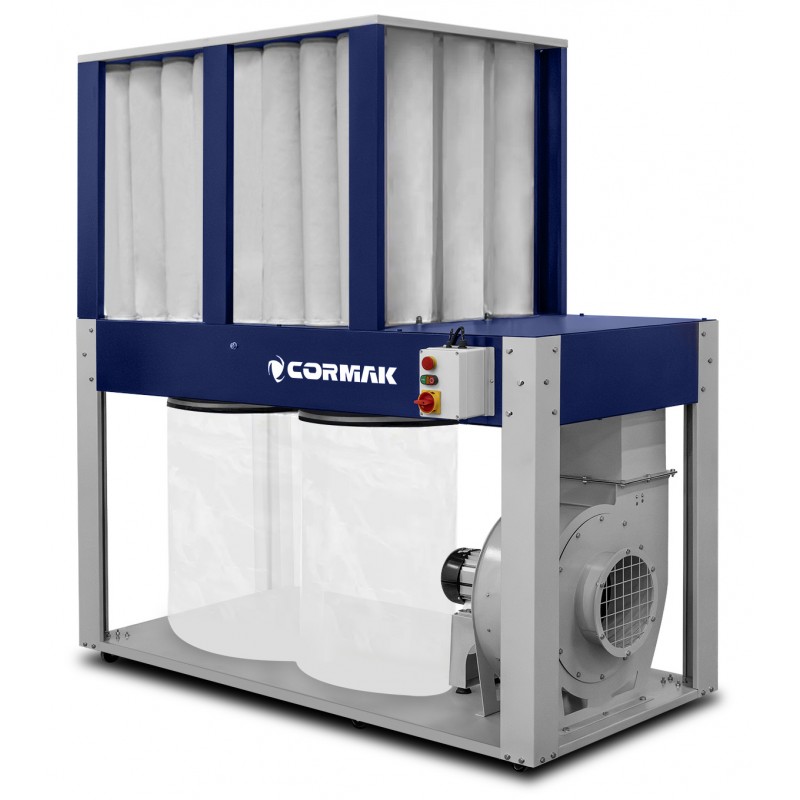

Professional Industrial Dust Extractor DCV7500E – maximum performance and safety in dust extraction

DCV7500E is a high-performance industrial dust extractor of the premium class, engineered for demanding production facilities. With its reliable design, exceptional suction capacity, and advanced filtration efficiency, this unit is ideal for large woodworking workshops that expect clean air, operational stability, and continuous extraction performance.

Main advantages

• Extraction capacity: 7,500 m³/h – ideal for operating multiple machines simultaneously.
• Large filtration area: 18 m² – efficient capture of fine dust particles.
• 5-micron polyester filters – ensuring clean air in the production area.
• Sturdy steel frame – resistant to vibration and continuous operation.
• Dynamically balanced chip fan – quiet and stable performance.

Design and technology

The DCV7500E model features a 280 mm suction inlet that provides a high airflow rate. The metal impeller with optimised blade geometry improves extraction efficiency while reducing noise levels. Its sealed suction system prevents air leakage and ensures effective separation of chips, sawdust, and fine dust particles.

Precision and performance

The DCV7500E woodworking dust extractor operates with an air velocity of 28–32 m/s, guaranteeing efficient extraction even under fluctuating workloads. Equipped with a 5.5 kW motor running at 3,000 rpm, it maintains constant performance throughout long production cycles, regardless of the number of connected machines.

Applications

DCV7500E is ideal as a central extraction system for production plants and woodworking shops operating machines such as:

• belt and wide-belt sanders,
• panel and format saws,
• spindle moulders,
• edgebanders and planers,
• automated processing lines.

It is not intended for use with wet materials or in potentially explosive environments.

Standard equipment

• 35 polyester filters (5 microns)
• 280 mm suction inlet
• Hermetically sealed waste containers

Optional equipment*

• HEPA filter for finer dust particles
• Automatic filter cleaning system
• Ceiling-mounted ducting system

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Technical data

Choose the proven DCV7500E dust extraction solution and improve the air quality and cleanliness of your production environment today.
