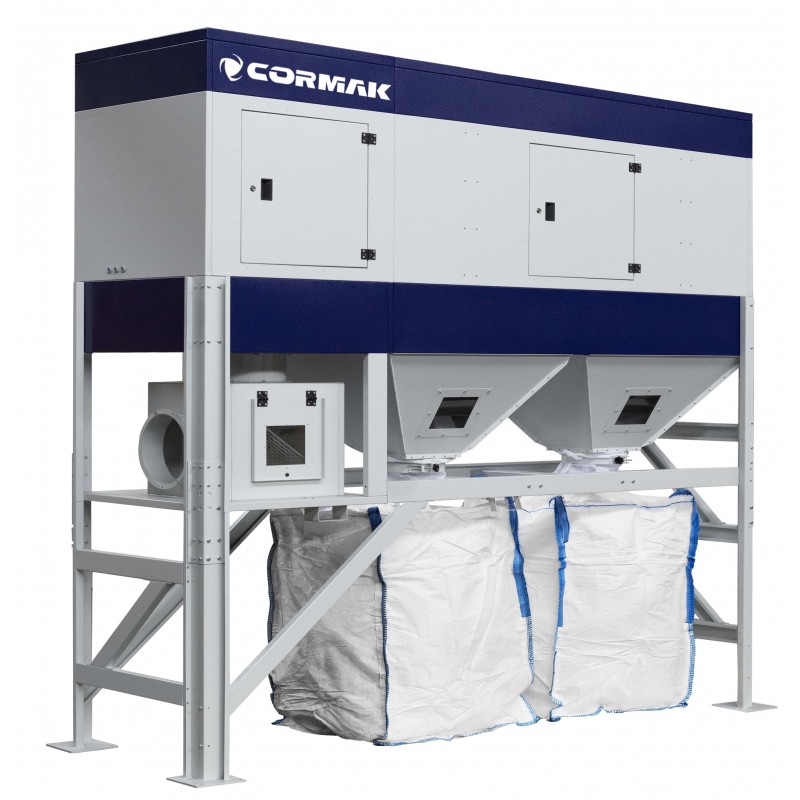

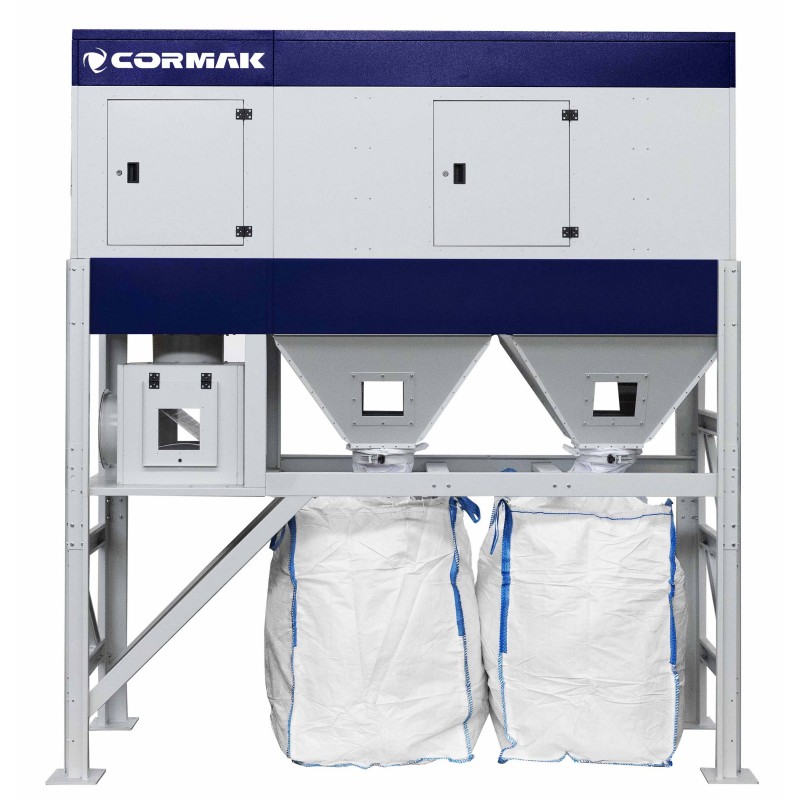

Industrial Wood Dust and Chip Extractor CORMAK SCV15000TC VIBER BIG-BAG

SCV15000TC VIBER BIG-BAG – top-class industrial extractor for intensive operation

Professional industrial extractor SCV15000TC VIBER BIG-BAG is a high-performance and reliable dust extraction system designed for large woodworking plants and industrial production lines. Equipped with two high-capacity BIG-BAG bags, it guarantees maximum operational continuity and simplified handling while reducing downtime. It is an ideal sawdust extractor and dust extraction solution for machines requiring highly efficient dust removal.

Main advantages of the machine

• Capacity 15000 m³/h – ensures effective extraction even in the most demanding industrial applications.
• 18.5kW power – high-efficiency S1 motor for continuous operation in demanding conditions.
• VIBER system – automatic filter shaking guaranteeing long filter service life.
• TC housing – full acoustic insulation reducing noise and vibration.
• Two BIG-BAG bags – significantly increased waste capacity and more convenient unloading.
• REHEAT – heat recovery system from exhaust air, reducing energy losses.
• DAMAGE PROTECT – mechanical protection of the impeller and suction duct against damage caused by the intake of large elements.

Design and technology

The SCV15000TC VIBER BIG-BAG model is based on a rigid steel construction designed for intensive operation in demanding industrial environments. The chip extraction fan with a balanced impeller and aerodynamically optimised blades ensures constant high efficiency with a low noise level. The filtration unit consists of 117 polyester filter cartridges with a filtration surface adapted to intensive dust extraction processes.

Precision and performance

Thanks to high vacuum and a large inlet diameter (400 mm), the extractor effectively removes chips, dust and sawdust from multiple workstations simultaneously. The design is suitable for operation as a central extraction system, allowing integration with a complete production line. High energy efficiency and the automatic filter cleaning system reduce the need for frequent servicing, lowering operating costs.

Application

SCV15000TC VIBER BIG-BAG is a woodworking and industrial extractor recommended for operation with:

• panel saws and sliding table saws,
• wide belt sanders,
• edge banders and CNC routers,
• automatic processing lines for wood and wood-based materials.

Standard equipment

• Automatic VIBER filter shaking system
• Polyester filters (117 pcs)
• Sound-insulated TC housing
• DAMAGE PROTECT protection system
• Control cabinet with main switch
• Two BIG-BAG bags with supports

Technical parameters

Invest in reliability, performance and safety – choose the SCV15000TC VIBER BIG-BAG industrial extractor from CORMAK and optimise dust extraction in your facility today!
