Category: Industrial DCV Dust, Chip and Shaving Extractors

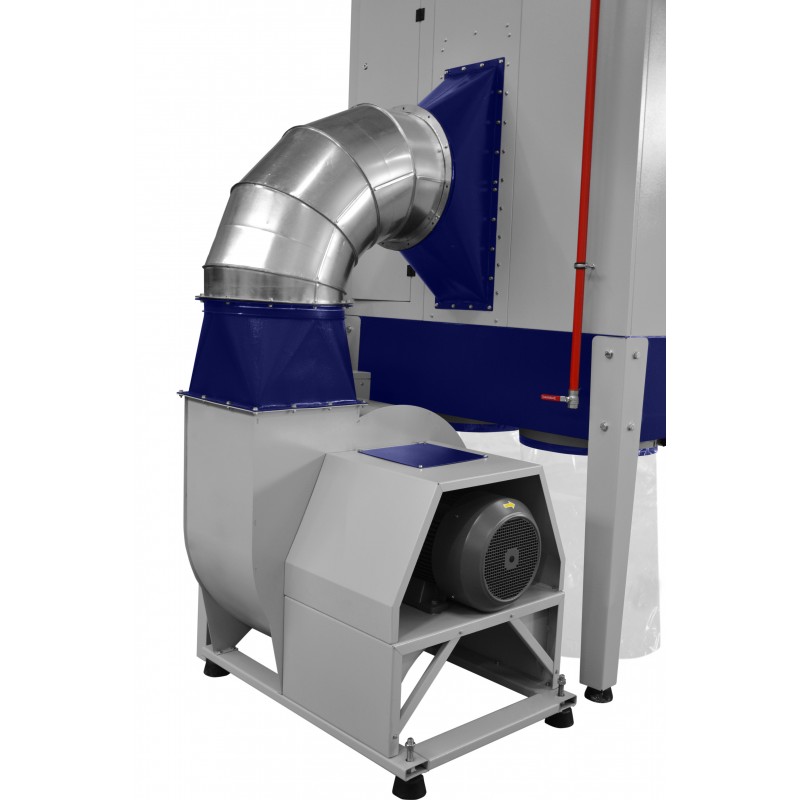

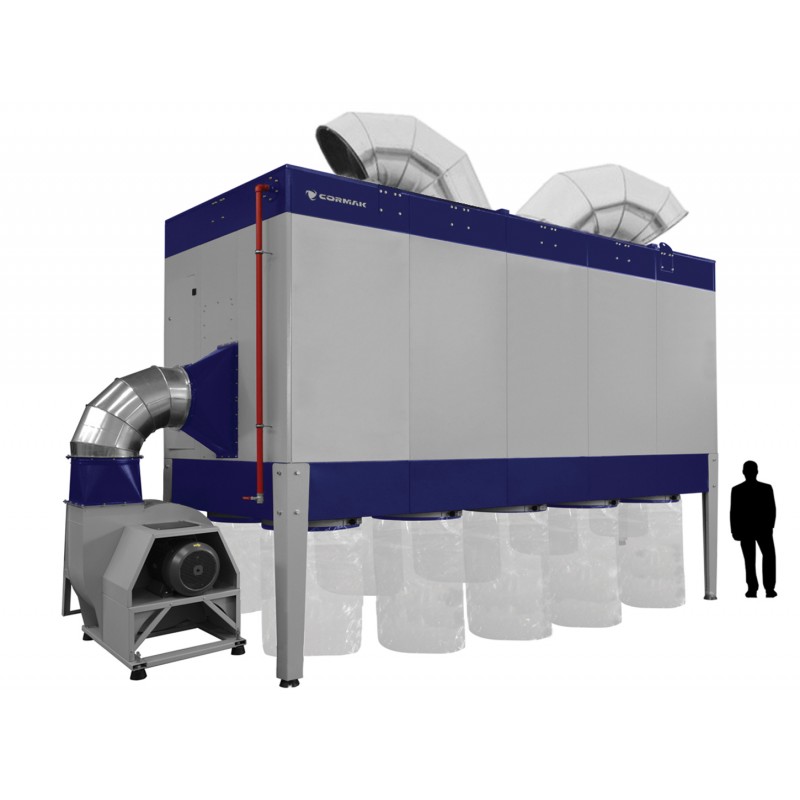

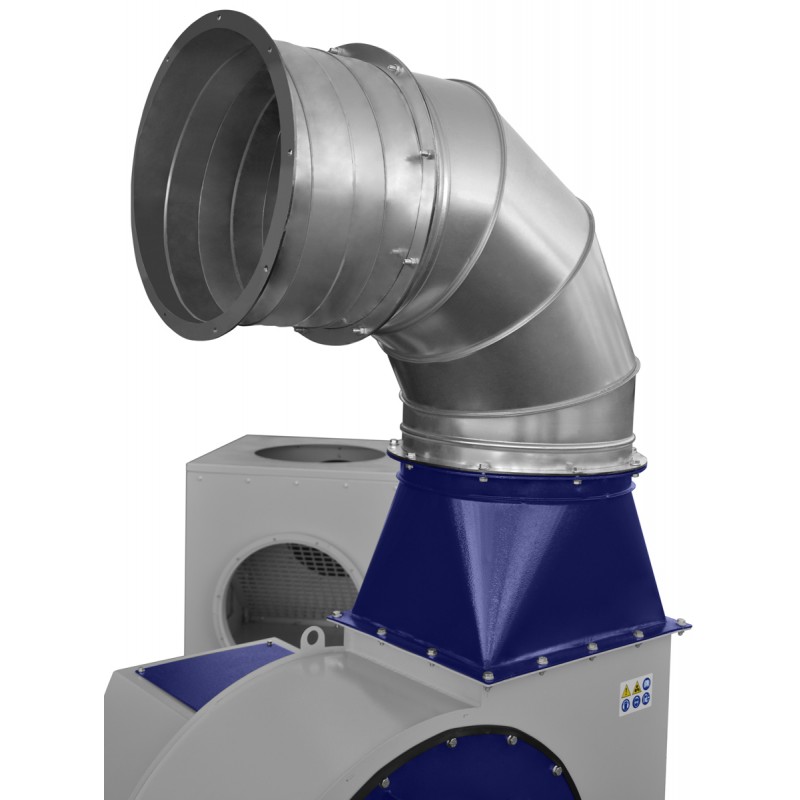

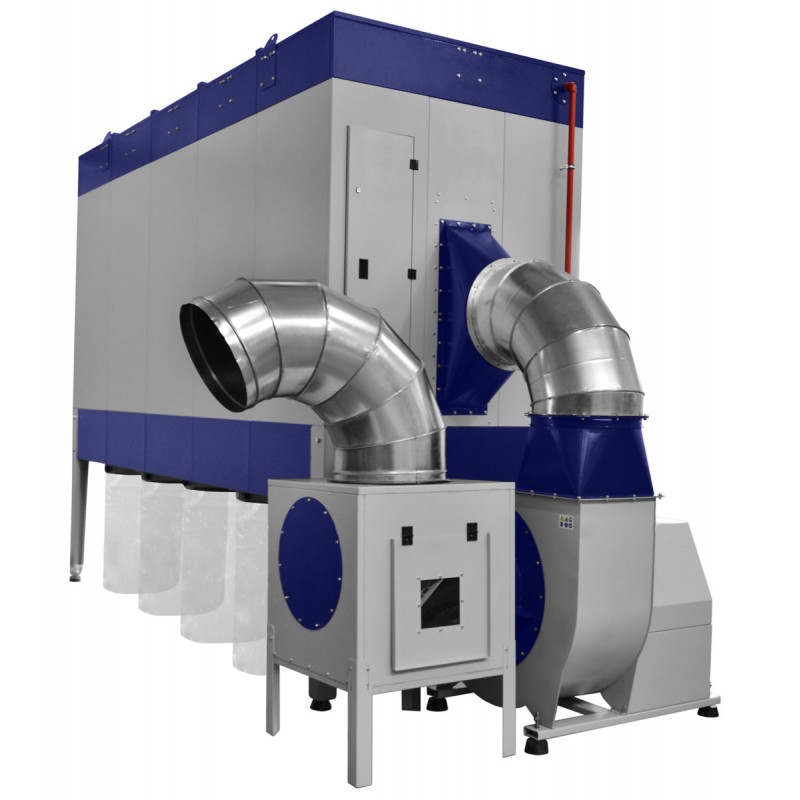

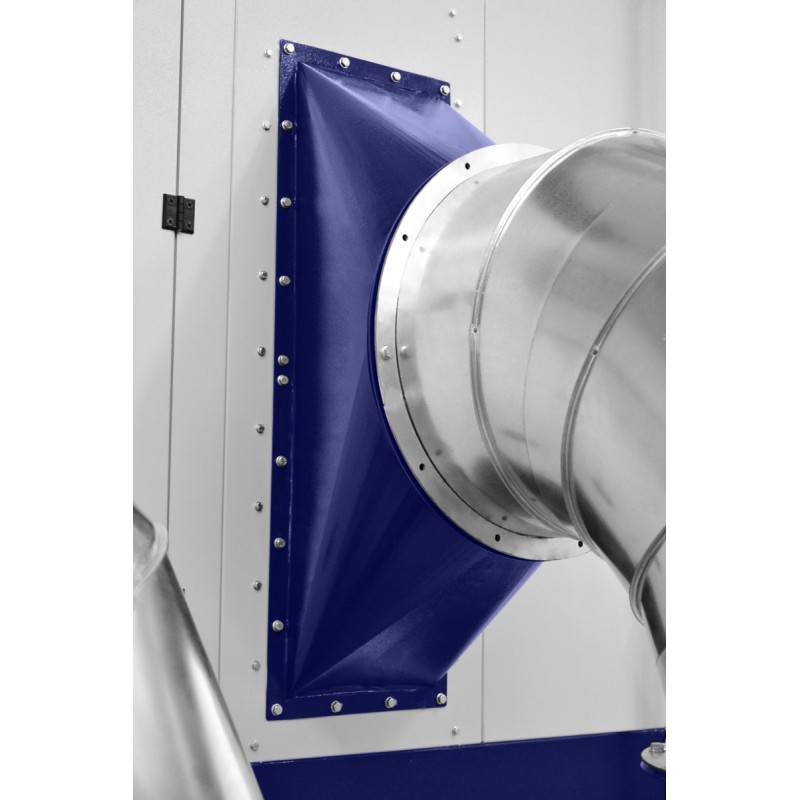

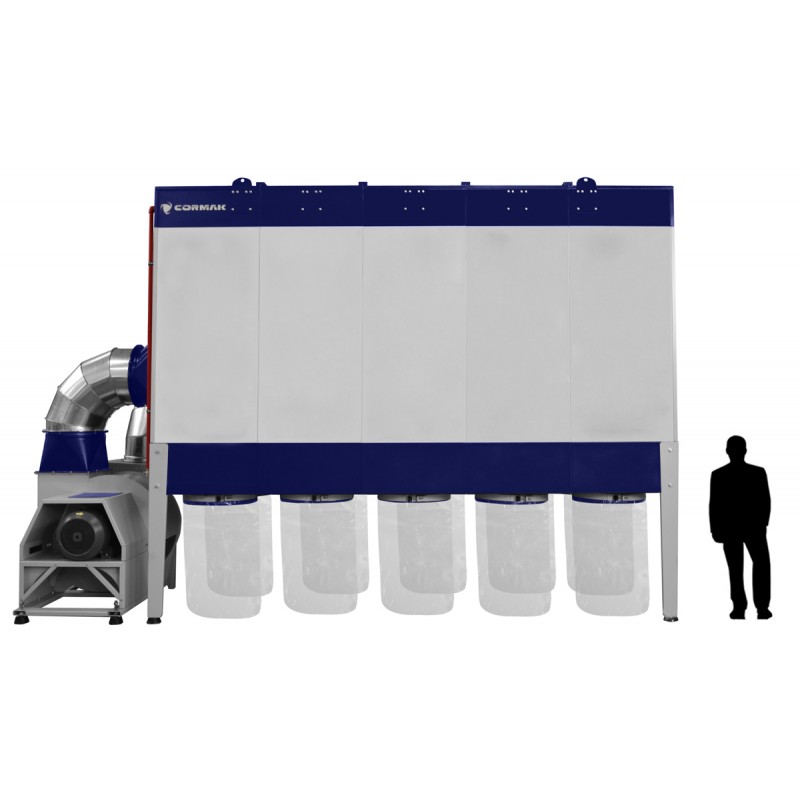

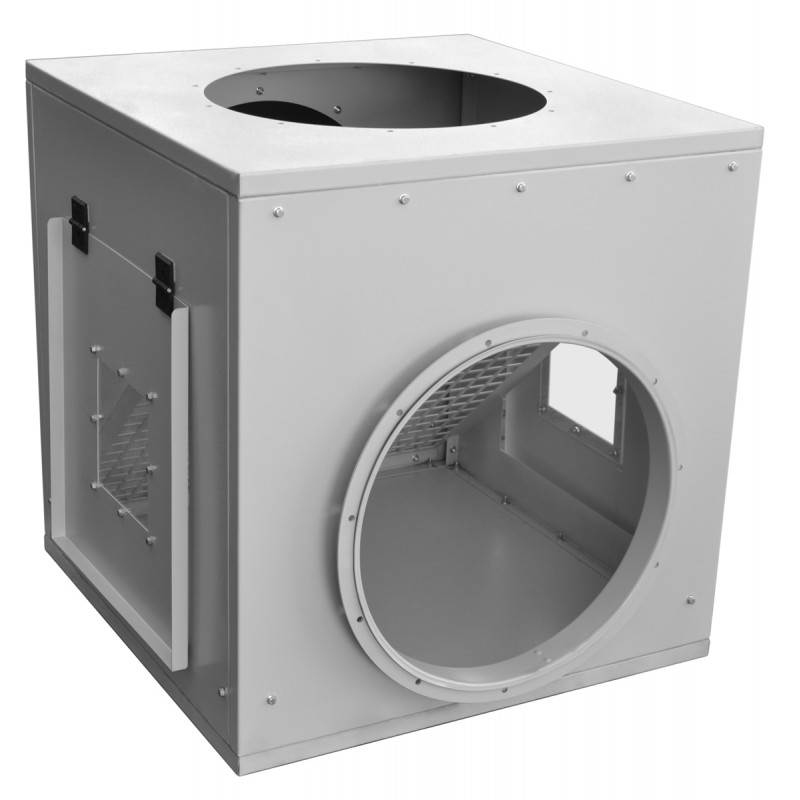

Industrial Chip and Dust Extractor CORMAK DCV21750

Reference:
dc15000 PREMIUM
Manufacturer: CORMAK

CORMAK DCV21750 is a professional industrial dust and chip extraction system designed for use in large joinery workshops and the woodworking industry. Its high-performance design ensures effective removal of waste generated during the operation of woodworking machines.

With a high extraction capacity of 21,750m³/h, the unit is ideally suited for use as a central dust extraction system serving multiple workstations simultaneously.

tax included €17,493.00
excl. tax €14,700.00
This product is in stock; however, due to its weight exceeding 1,000 kg, it cannot be shipped internationally using our standard delivery service. To discuss available shipping options and delivery terms, please contact our Export Department.
Contact Export Department
tax included €17,493.00
excl. tax €14,700.00
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Industrial Chip and Dust Extractor CORMAK DCV21750
excl. tax €14,700.00
tax included €17,493.00

Related categories

Dust, Chip and Shaving Extractors Industrial DCV Dust, Chip and Shaving Extractors Products Woodworking Machines

Description

Advantages of DC chip extractors

  • The purpose of the Vibra Motor shaking system is to maintain constant parameters during operation and to monitor the correct functioning of the extractor.
  • Heavy-duty construction enhanced with a radial fan guarantees maximum vacuum performance.
  • Extractor designed for dry dust and chips.
  • Thanks to its sealed system, it can be used both indoors and outdoors.
  • Adapted for both positive pressure systems (fans operating on the dirty air side) and negative pressure systems (fans operating on the clean air side).
  • The sound-insulated housing and specially profiled fan blades ensure quiet, efficient operation while reducing power consumption.
  • Flexible and durable seals are applied at key points to improve system tightness and prevent heat loss at connection joints.
  • Multifunctional modular design allows flexible configuration of the extraction system.
  • Warm air recovery system.
  • Control cabinet equipped with an intuitive control panel for monitoring filter contamination levels.
  • For finer particle filtration, an additional filter such as HEPA should be used.
  • It is prohibited to use this extractor in explosive atmospheres.
  • The extractor is not designed for wet materials (e.g. wet sawdust).


Industrial Chip and Dust Extractor CORMAK DCV21750


Technical parameters

MOTOR POWER

25 HP / 400 V, 50 Hz

EXTRACTION CAPACITY

21,750 m3/h

INLET/OUTLET DIAMETER

 400 / 400 mm

SUCTION SPEED

28 m/s

NUMBER OF FILTERS

 2 × 48

NUMBER OF WASTE BAGS

 8

DIMENSIONS (L×W×H)

 4,600 × 1,700 × 3,500 mm

WEIGHT

 1,400 kg
