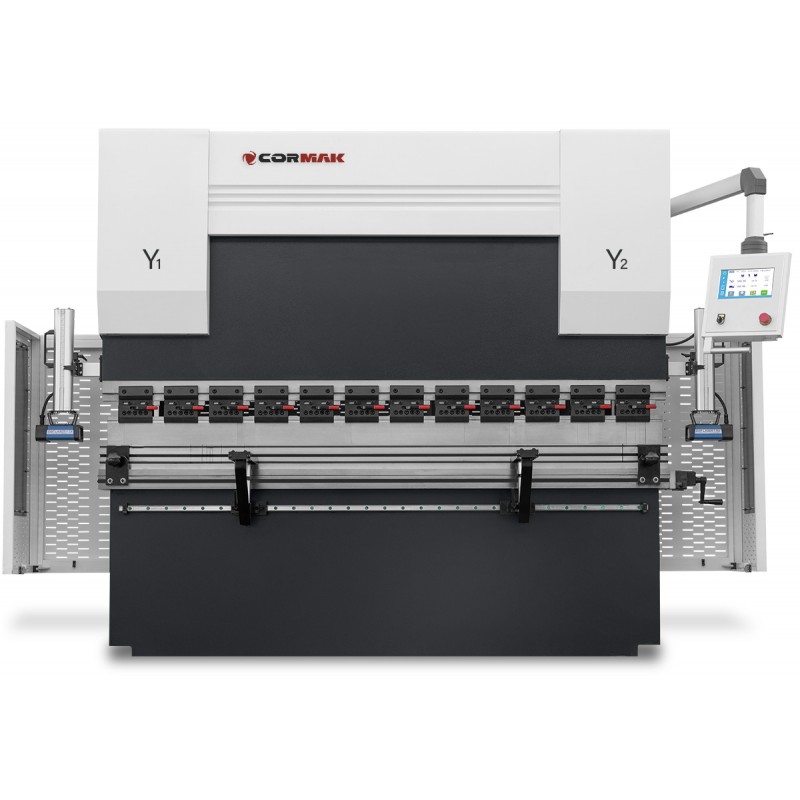

The presented configuration is the most frequently chosen by our customers – a proven and efficient solution for serial production.

Main Features:

• Front supports: 2 pcs on linear guides, providing stability during bending operations.

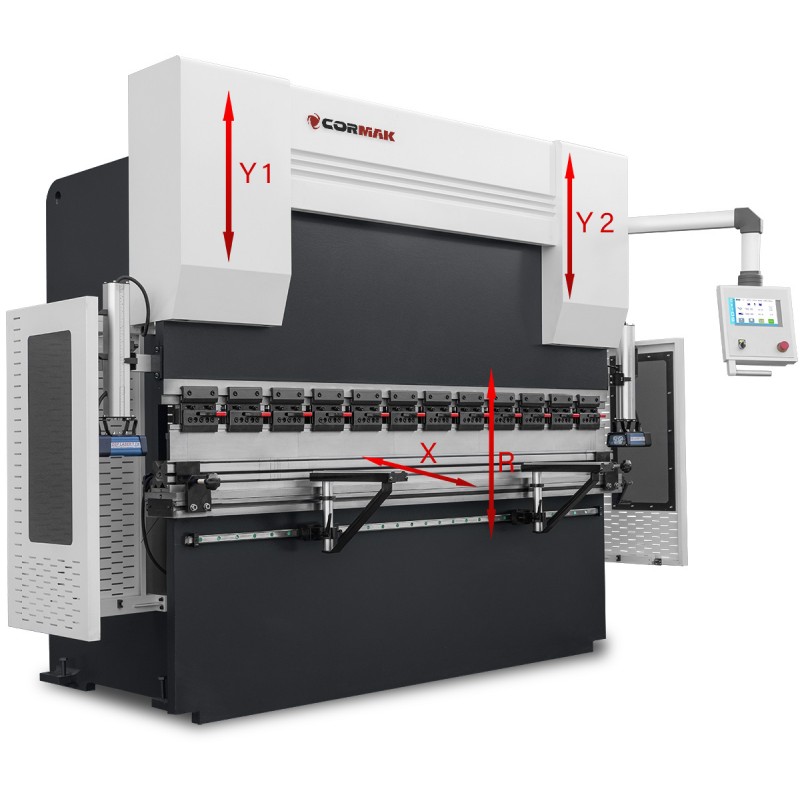

• Backgauge adjustment (X-axis): automatic

• Beam adjustment (Y1, Y2 axes): automatic

• Height adjustment of fingers (R-axis): manual (option*)

• Double-sided punch clamping: quick-release AMADA type, allowing fast tool changes.

Available configurations are customised to production needs and the type of processed workpieces – machine specifications are determined individually according to the application and technological requirements.

Technical parameters

Manual or automatic height adjustment of backgauges. R-axis facilitates bending of larger radii, e.g. with a step bending system.

For satisfactory step bending results, it is necessary to make some calculations based on key parameters related to the bending process:

• Arc length – the distance between the ends of the curved sheet, measured along the inner side of the bend;
• Number of bends – the number of individual bends required to achieve the desired radius; the greater the number of bends, the smaller the angle of each bend, resulting in a smoother arc;
• Distance between bends – the spacing between consecutive bends performed during the process.

Although the step bending process may seem complex, CORMAK machines and software are advanced enough to handle most of the calculations automatically, greatly assisting the operator.

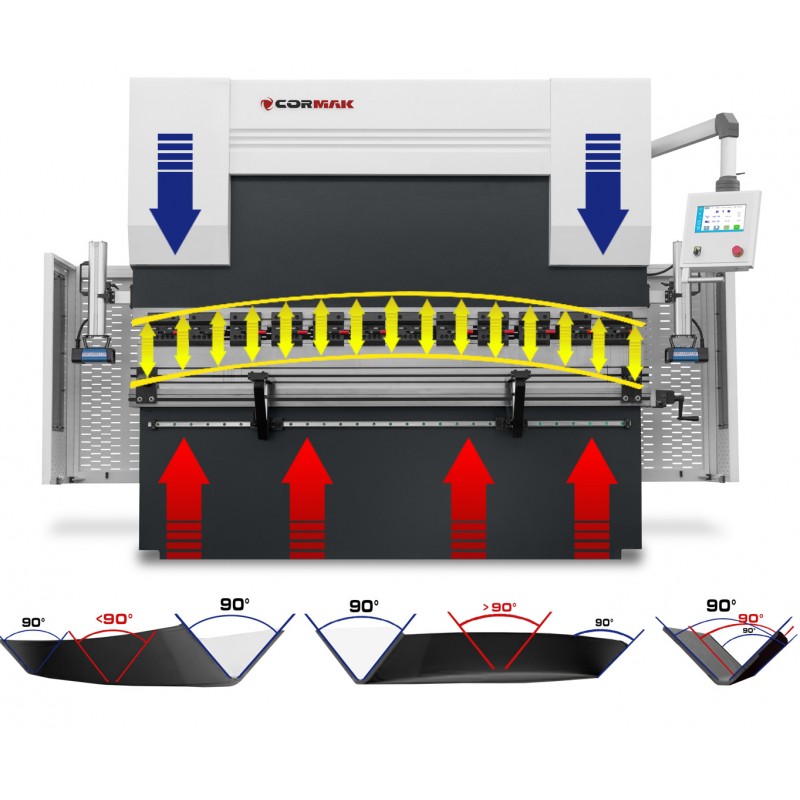

Automatic crowning compensation

Ensures a constant bending angle along the entire bending length – (option*)

Manual crowning compensation (option*)

Ensures a constant bending angle along the entire bending length – (option*)

High-quality components:

• Electrical components from Schneider / Delta / Eaton



Control and functionality:

CR-41 CNC

• Equipped with a 10-inch touchscreen, mounted on a movable arm, ensuring comfortable operation across the entire working area.
• Programmability: up to 2,000 programs with 30 steps each, allowing flexible adjustment to various tasks.
• Ergonomic operation: intuitive interface with English abbreviations makes machine setup and work easy and fast.

The machine combines advanced technology with ease of use, making it an ideal choice both for precise manual operations and efficient serial production. High-quality components and advanced safety systems ensure reliability and operator safety.

Safety

Laser safety system

Included as standard: a top-class laser safety system protecting the operator and more than doubling the bending process speed.

No compromises on safety! Top-quality hydraulic connections and safety valves designed for maximum reliability.

Beware of pseudo-safety systems such as gate or light curtains, as they do not comply with CE standards and may endanger workers. As an employer, you are responsible for your employees’ safety!

Safety guards compliant with CE

Ergonomics and additional features:

• Mobile controller on a movable arm
• LED lighting: improves comfort and work safety
• Supports on linear guides

Our press brakes are equipped with advanced protection systems, including clear markings, side guards, rear safety gates and easily accessible emergency stops.

Each machine is supplied with a clear and detailed user manual.

A CE declaration alone does not ensure full safety – the key is the systems your machine is equipped with!

SCO – Oil Cooling System

Standard feature ensuring stable machine operating parameters even during prolonged, continuous operation.

Tool clamping system:

• Standard: segmented, four-sided, multi-groove dies and sectional punches
• The basic system used in CORMAK press brakes is a manual AMADA (European) type quick-change clamping system.
• Punches are side-mounted and locked with screws.

Choice of die and punch

The final bending result depends on the correct selection of die and punch.
CORMAK press brakes continuously measure the bending angle and can automatically compensate deviations during the process for optimal results.

Depending on press force, sectional punches and dies may vary in length.

Included with the machine

Telephone consultations with a specialist

You can always count on professional support from our specialist.

Terms of cooperation

• 24-month warranty period.
• The machine is brand new.
• Warranty and post-warranty service provided by the supplier.

Training and Machine Commissioning

It is possible to arrange professional training and machine commissioning carried out by a Cormak technician — this service is priced individually.

Contact our advisor to get more information.
