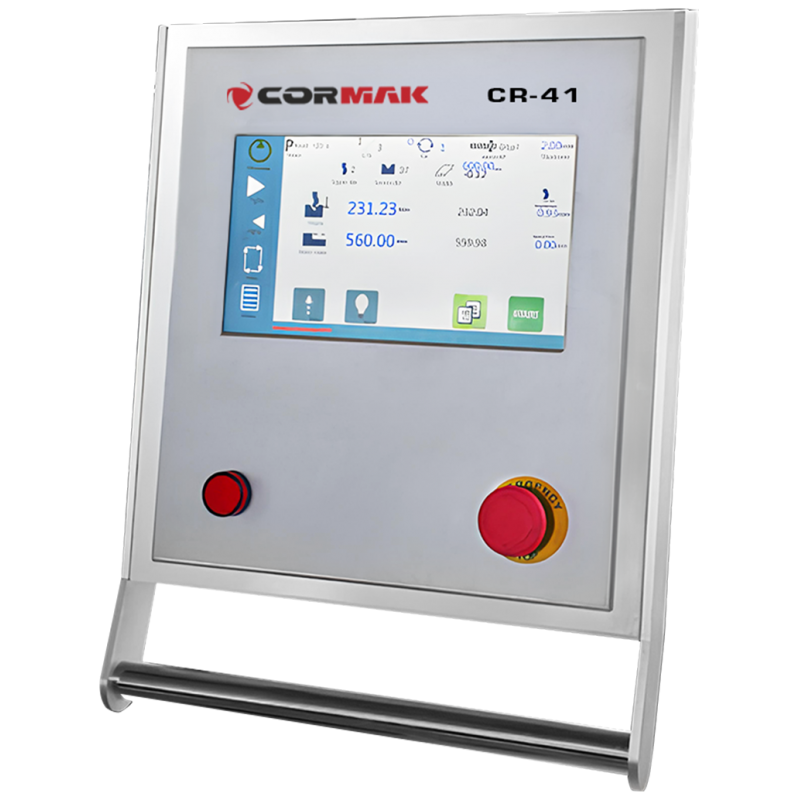

CORMAK press brakes are advanced machines that enable precise sheet metal bending with properly selected punches and dies. The range includes models equipped with CORMAK CR-41 controllers offering a wide variety of functions for carrying out even the most demanding bending tasks.
The presented configuration is the most frequently chosen by customers – a proven and efficient choice for serial production
Available configurations are tailored to production requirements and the type of processed components – the machine specification is defined individually depending on the application and technological needs.
| Max. bending thickness (S235) | up to 4.0 mm |
| Nominal pressure | 800 kN |
| Maximum bending length | 2500 mm |
| Throat depth | 250 mm |
| Maximum ram stroke | 98 mm |
| Maximum opening height | 385 mm |
| Distance between uprights | 2000 mm |
| Back gauge travel | 500 mm |
| Motor power | 5.5 kW |
| Length | 2600 mm |
| Width | 1450 mm |
| Height | 2300 mm |
| Weight | 4900 kg |

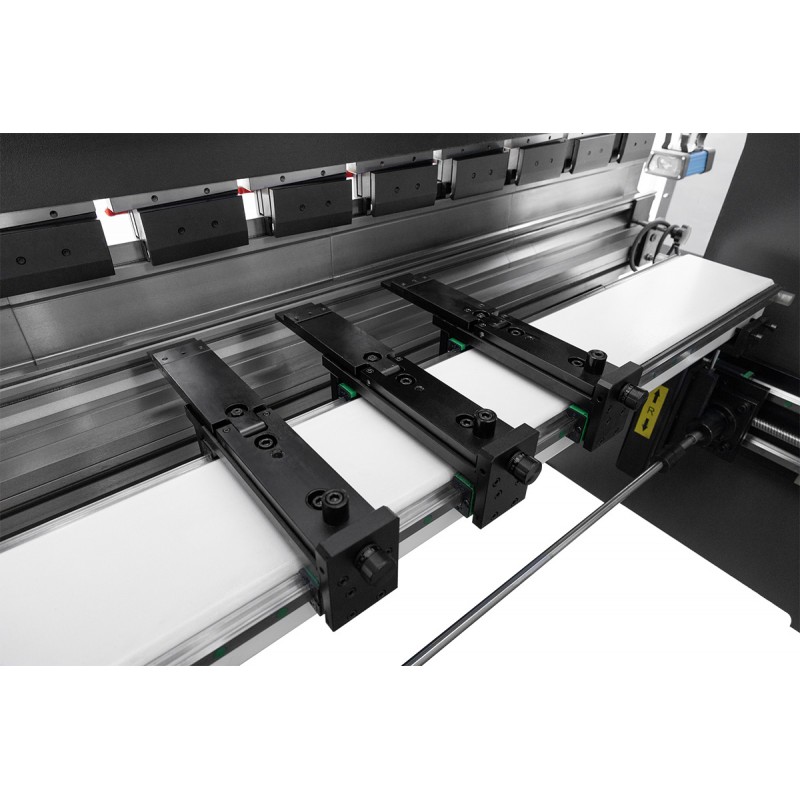

Manual or automatic height adjustment of backstops. The R axis makes bending larger radii easier, e.g. using a step bending system.
To achieve a satisfactory step bending effect, certain calculations are required, based on several essential parameters of the bending process:
Although step bending may seem complex, CORMAK machines and software are advanced enough to automate many operations, making the operator’s work easier and faster.
Ensures the same bending angle along the entire bending length – (option*)
Ensures the same bending angle along the entire bending length – (option*)
The machine combines advanced technology with intuitive control, making it ideal for both precise manual tasks and efficient serial production. Premium components and advanced safety systems ensure reliability and operator safety.
Standard high-end laser protection system ensures operator safety and doubles bending efficiency.
Top-class hydraulic connections and CE-certified safety valves ensure long-term reliability and compliance with European safety standards.
CORMAK press brakes are equipped with a full set of safety features — clear hazard markings, side and rear guards, emergency stops, and ergonomic lighting for operator comfort.
Each machine is supplied with a clear and detailed user manual.
Standard system ensuring stable operating parameters even during extended use.
The proper selection of tools—punch and die—is key to achieving optimal bending results.
CORMAK press brakes automatically monitor bending accuracy and compensate deviations in real time for consistent results.
Depending on press force, split punches and dies may differ in length.
You can always rely on assistance from our specialist.
It is possible to arrange professional training and machine commissioning carried out by a Cormak technician — this service is priced individually.
Contact our advisor to get more information.
