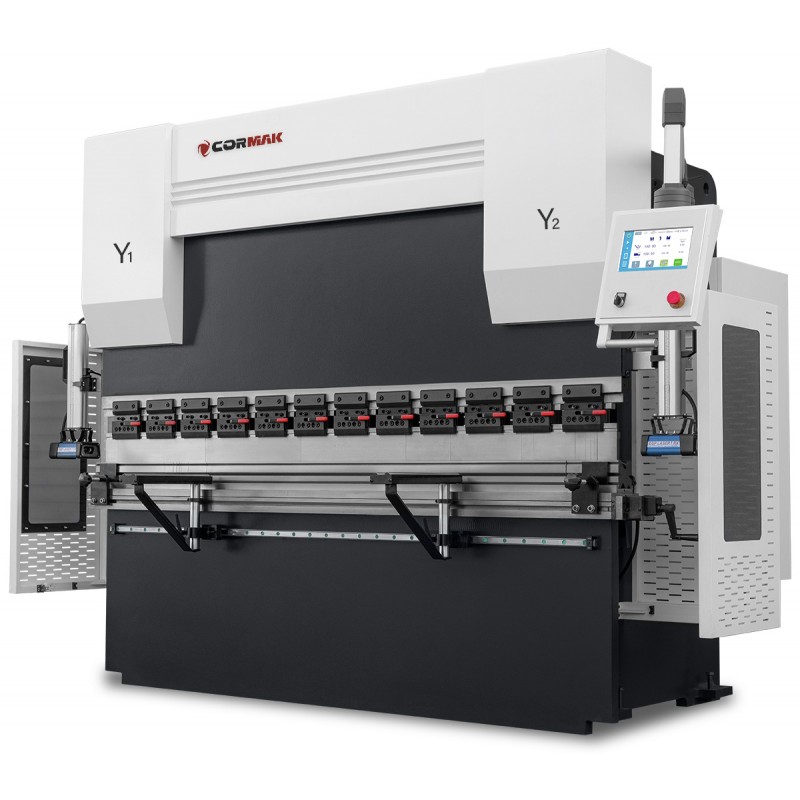

CORMAK press brakes are advanced machines designed for precise sheet metal bending using appropriately selected punches and dies. Our range includes models equipped with CORMAK CR-41 controllers, offering a wide range of functions for even the most demanding bending operations.
The configuration presented is the one most frequently selected by customers – a proven and efficient choice for series production.
Available configurations are tailored to production requirements and the types of workpieces being processed – machine specifications are determined individually according to the application and technological requirements.
| Maximum sheet metal bending thickness (S235) | up to 3.0mm |
| Nominal pressing force | 630kN |
| Maximum sheet metal bending length | 2,000mm |
| Throat depth | 250mm |
| Maximum ram stroke | 120mm |
| Maximum opening height | 385mm |
| Distance between uprights | 1,600mm |
| Backgauge travel | 600mm |
| Motor power | 5.5kW |
| Length | 2,200mm |
| Width | 1,200mm |
| Height | 2,600mm |
| Weight | 3,200kg |

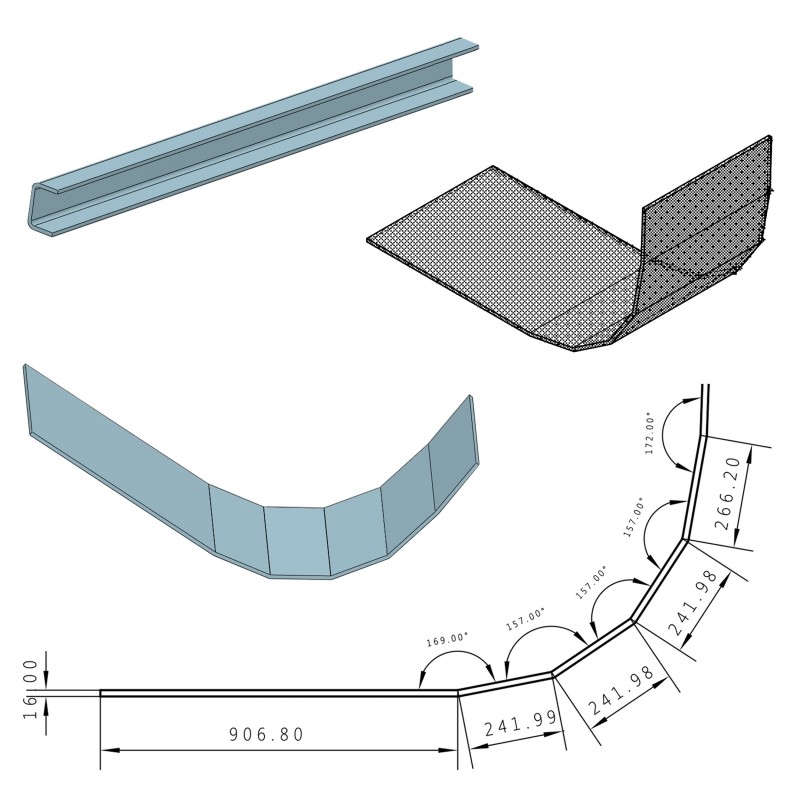

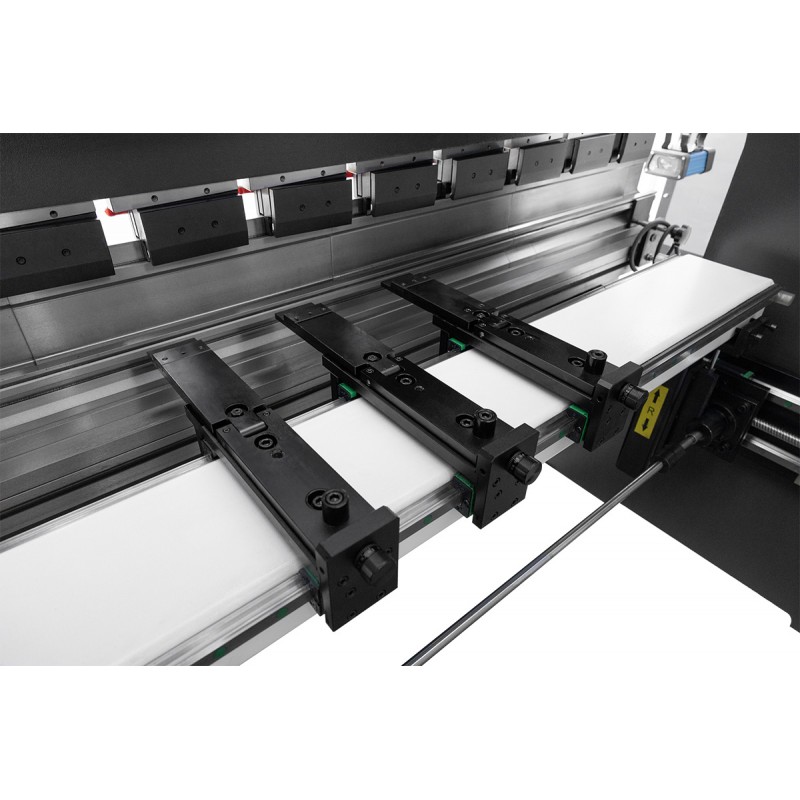

Manual or automatic backgauge height adjustment. The R-axis facilitates bending larger radii, for example using step bending.
To achieve a satisfactory result in step bending, certain calculations are required. These depend on several key parameters related to the bending process:
Although the entire step bending process may seem relatively complex, CORMAK machines and software are sufficiently advanced to handle many aspects of the process automatically, reducing the operator's workload.

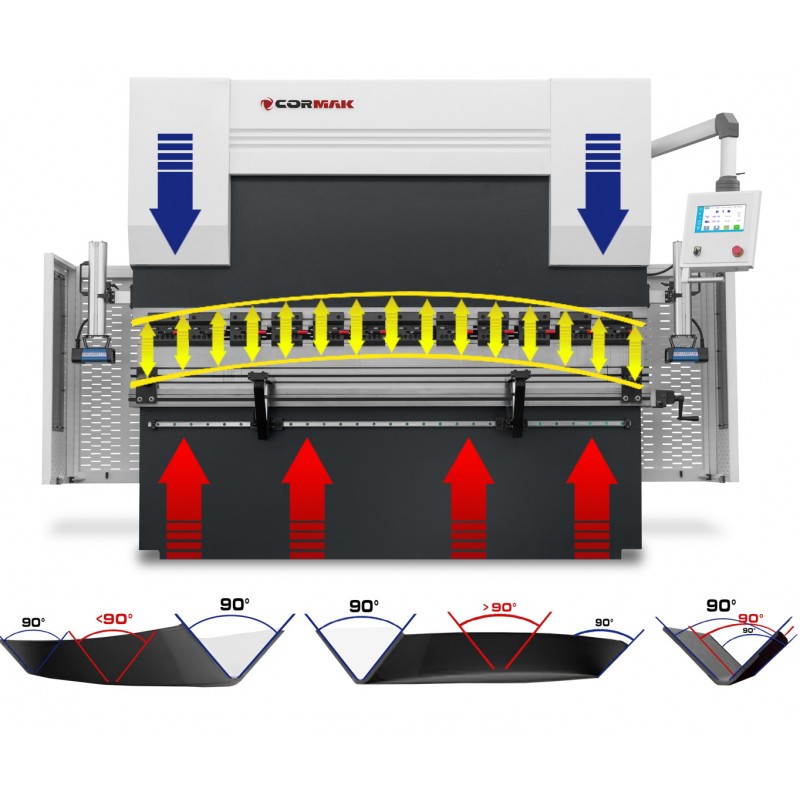

Maintains a consistent bending angle along the entire bending length – (option*)
Maintains a consistent bending angle along the entire bending length – (option*)
The machine combines advanced technology with ease of operation, making it an ideal choice for both precise manual tasks and efficient series production. High-quality components and advanced safety features ensure reliability and operational safety.

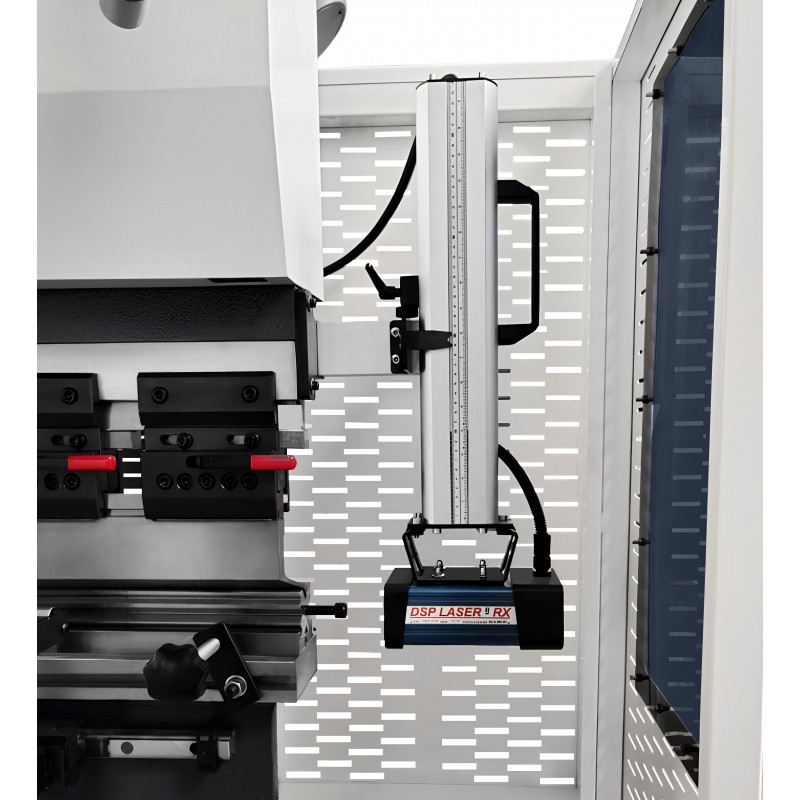

Our machines are equipped as standard with a high-grade laser safety system that protects the operator and more than doubles the speed of the bending process.
We do not compromise on safety! High-grade hydraulic connections and safety valves.
Beware of inadequate safety solutions such as light barriers or light curtains, which may not comply with CE requirements and may put workers' health at risk. As an employer, you are responsible for your employees' safety!
We prioritise the safety of our customers and their teams, which is why our press brakes are equipped with a range of advanced safety features. These include clear safety markings, side guards, a rear safety gate and easily accessible emergency stop switches.
Each machine is supplied with a clear and detailed user manual.
The fact that a machine has a CE declaration does not automatically mean it is safe. The safety systems fitted to the machine are what matter!
Our standard equipment includes a system that ensures stable machine operating parameters even after prolonged continuous use.
Selecting the appropriate press brake tooling, including the die and punch, is also essential for achieving the desired final result.
CORMAK press brakes continuously measure bending parameters and can, for example, correct deviations during the process to achieve the best possible result.
Depending on the press brake's bending force, segmented punches and dies may vary in length.
Professional training and commissioning by a CORMAK technician can be arranged and are subject to an individual quotation.
Contact our advisor for more information.
You can always count on assistance from a specialist.
*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.
