The presented configuration is the most frequently chosen by customers – a proven and efficient choice for series production
Main Features:
-
Front supports: 2 pieces on linear guides, ensuring stability during bending operations
-
Back gauge adjustment (X axis): automatic
-

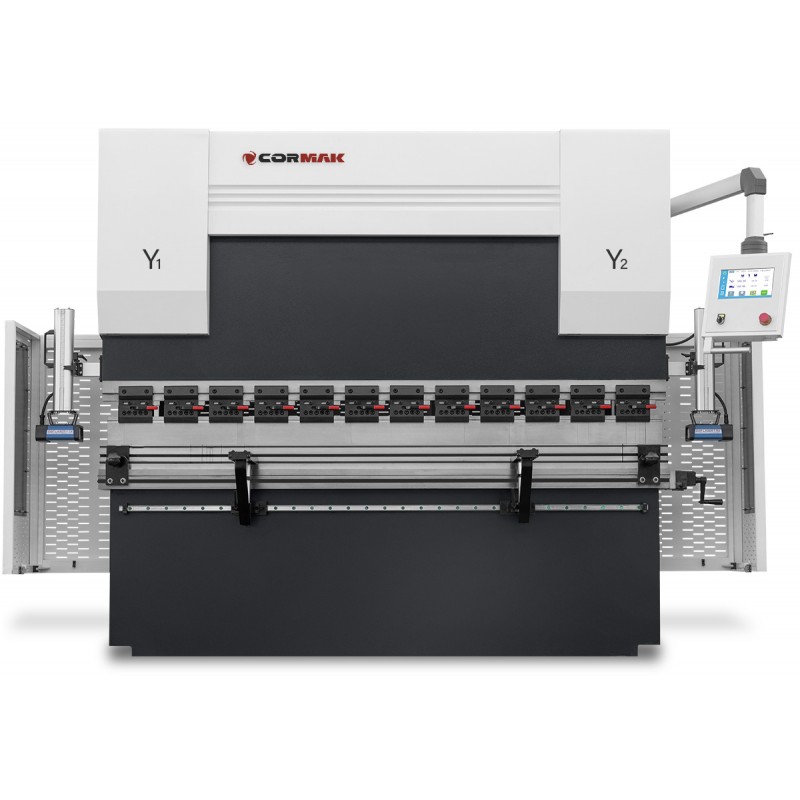

Beam adjustment (Y1, Y2 axes): automatic
-
Finger height adjustment (R axis): manual (option*)
-
Double-sided punch clamping: quick AMADA-type system allowing fast tool changes
Available configurations are adapted to production needs and the type of processed components – the machine specification is determined individually depending on the application and technological requirements.
Technical parameters
| Max. bending thickness (S235) |
up to 4.0 mm |
| Nominal pressure |
630 kN |
| Maximum bending length |
3100 mm |
| Throat depth |
250 mm |
| Maximum ram stroke |
120 mm |
| Maximum opening height |
370 mm |
| Distance between uprights |
2700 mm |
| Back gauge travel |
600 mm |
| Motor power |
5.5 kW |
| Length |
3300 mm |
| Width |
1400 mm |
| Height |
2200 mm |
| Weight |
5100 kg |

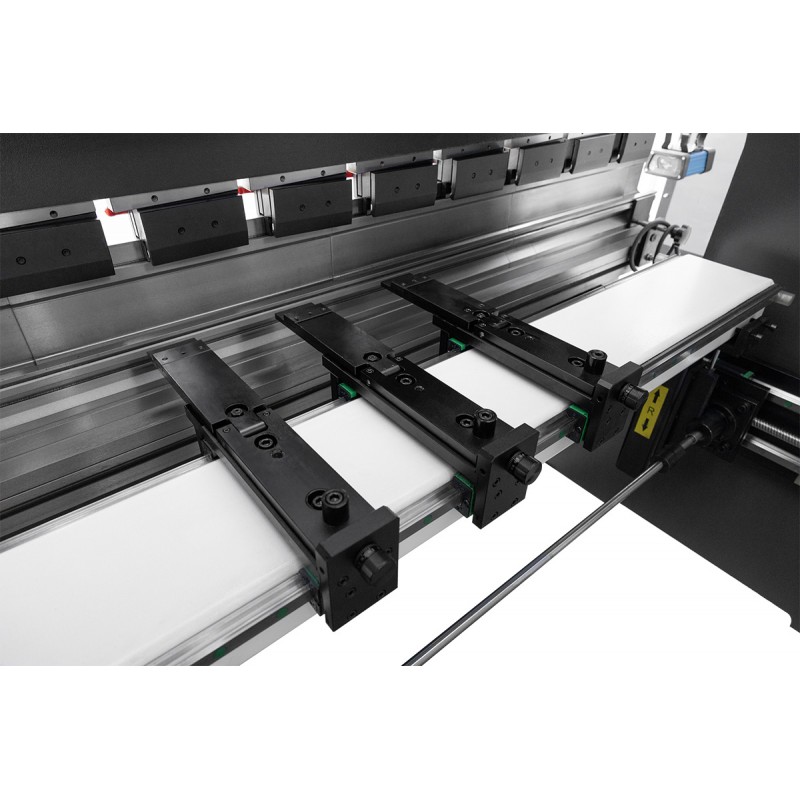

Manual or automatic height adjustment of backstops. R axis facilitates bending of larger radii, e.g. by step bending system.
For a satisfactory step bending effect, certain calculations are necessary, requiring knowledge of a few key parameters of the bending process:
- Arc length – the distance between the ends of the curved part of the sheet measured along the inner side of the bend;
- Number of bends – the number of single bends required to obtain the desired radius; the greater the number of bends, the smaller the angle of each bend, resulting in a smoother arc;
- Distance between bends – the spacing between individual bends performed during the process.
Although the step bending process may seem complex, CORMAK machines and software are advanced enough to automate most of it, relieving the operator of many tasks.

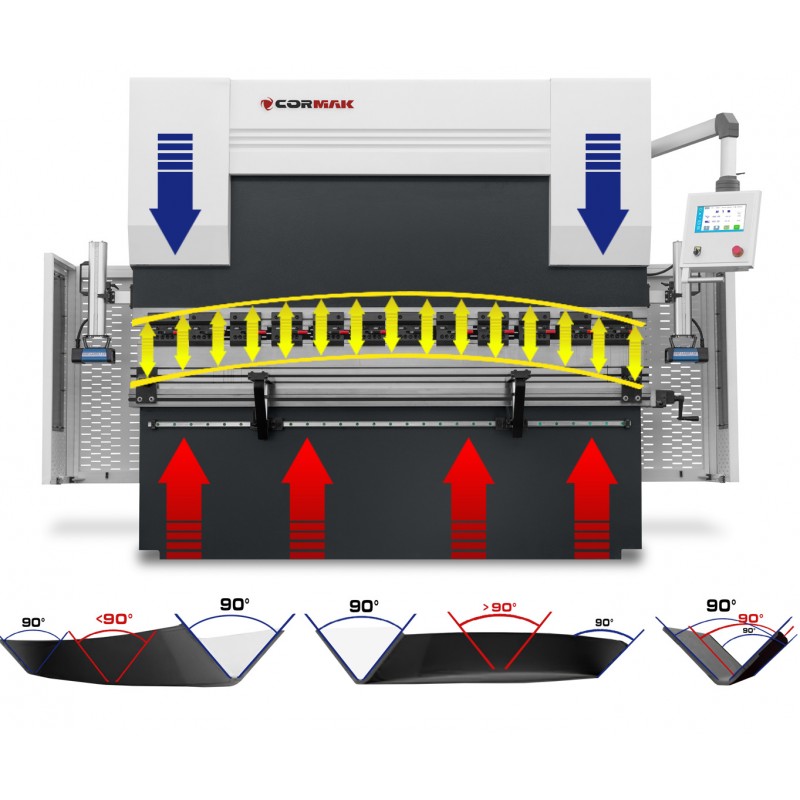

Automatic crowning compensation
Ensures consistent bending angle across the entire working length – (option*)
Manual crowning compensation (option*)
Ensures consistent bending angle across the entire working length – (option*)
High-quality components:
- Electrical system components from Schneider/Delta/Eaton
Control and functionality:
CR-41 CNC
- Equipped with a 10-inch touchscreen, mounted on a movable arm allowing freedom of operation across the working area
- Programmability: ability to store up to 2,000 programs, each with 30 steps, allowing flexible adaptation to various bending tasks
- Ergonomic operation: intuitive menu with English abbreviations for quick start-up
The machine combines advanced technology with ease of use, making it ideal for both precision manual tasks and efficient serial production. High-quality components and advanced safety systems ensure reliability and operator safety.
Safety
Laser safety system
Standard with us: a high-end laser safety system protecting the operator and more than doubling the bending process speed.
We do not compromise on safety! Top-class hydraulic connections and safety valves ensure reliable performance.
Beware of pseudo-protection such as gates or light curtains, as they may not comply with CE standards and can endanger operators’ health. Remember, as an employer, you are responsible for worker safety!
CE-compliant safety guards
Ergonomics and additional features:
- Mobile controller on movable arm
- LED lighting: improves working comfort and safety
- Supports on linear guides
We care about the safety of our customers and their teams; therefore, our press brakes are equipped with multiple protective systems including clear safety markings, side guards, rear safety gates and easily accessible emergency stops.
Every machine is supplied with a clear and detailed user manual.
CE declaration alone does not guarantee safety — what matters are the systems the machine is equipped with!
SCO – Oil Cooling System
Standard system ensuring stable machine operating parameters even after long, continuous use.
Punch and die clamping:
- Standard split four-sided multi-groove dies and split punches
- The basic system used in CORMAK press brakes is the manual AMADA (European) type quick-change system, allowing rapid tool replacement
- Punches are mounted from the side of the machine and secured with bolts
Die and punch selection
The final bending result depends greatly on the correct selection of tools — punch and die.
CORMAK press brakes continuously measure bending parameters and can automatically compensate deviations during operation to ensure optimal results.
Depending on the press force, split punches and dies may differ in length.
Included with the machine
Telephone consultations with a specialist
You can always count on support from our specialist.
Terms of cooperation
- 24-month warranty
- Machine is brand new
- Warranty and post-warranty service provided by the seller
Training and Machine Commissioning
It is possible to arrange professional training and machine commissioning carried out by a Cormak technician — this service is priced individually.
Contact our advisor to get more information.
Contact us
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
▶
