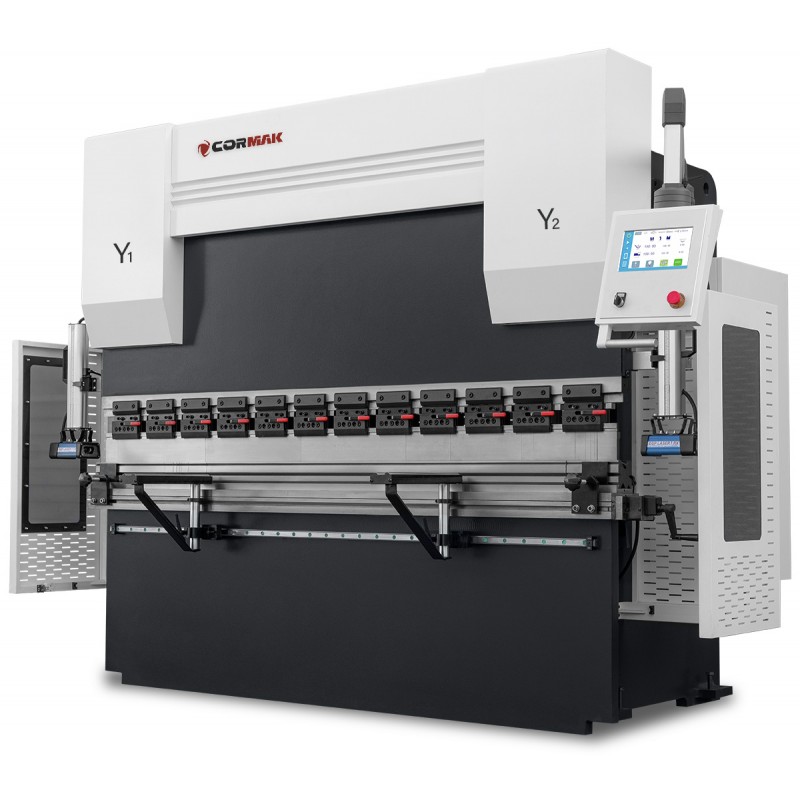

The presented configuration is the most frequently chosen equipment by customers – a proven and efficient solution for serial production
Main Features:
-
Front supports: 2 units on linear guides, ensuring stability during bending operations
-
Backgauge adjustment (X axis): automatic
-
Beam adjustment (Y1, Y2 axes): automatic
-
Finger height adjustment (R axis): manual (servo drive oprion*)
-
Punch clamping double-sided: quick-change AMADA type mounting, enabling fast tool changes
Available configurations are adapted to production needs and the type of processed components – machine specifications are determined individually depending on the application and technological requirements.
Technical parameters
| Max. bending thickness (S235) |
up to 6.0 mm |
| Nominal pressure |
1,250 kN |
| Maximum bending length |
4,000 mm |
| Throat depth |
320 mm |
| Maximum ram stroke |
120 mm |
| Maximum opening height |
390 mm |
| Distance between frames |
3,250 mm |
| Backgauge travel |
500 mm |
| Motor power |
7.5 kW |
| Length |
4,100 mm |
| Width |
1,550 mm |
| Height |
2,450 mm |
| Weight |
9,300 kg |
Manual or automatic adjustment of backgauge height. The R axis facilitates bending of larger radii, e.g. using the step-bending system.
To achieve a satisfactory step-bending result, it is necessary to perform certain calculations that require knowledge of several key parameters related to the bending process, including:
- Arc length – the distance between the ends of the curved section of the sheet, measured on the inner side of the bend;
- Number of bends – the number of individual bends required to obtain a bent sheet with a specific radius; the greater the number of bends, the smaller the individual bend angle and the smoother the arc;
- Distance between bends – the spacing between individual bends performed during the process.
Although the entire step-bending process may seem quite complex, CORMAK machines and software are already so advanced that in many aspects they fully support the operator.

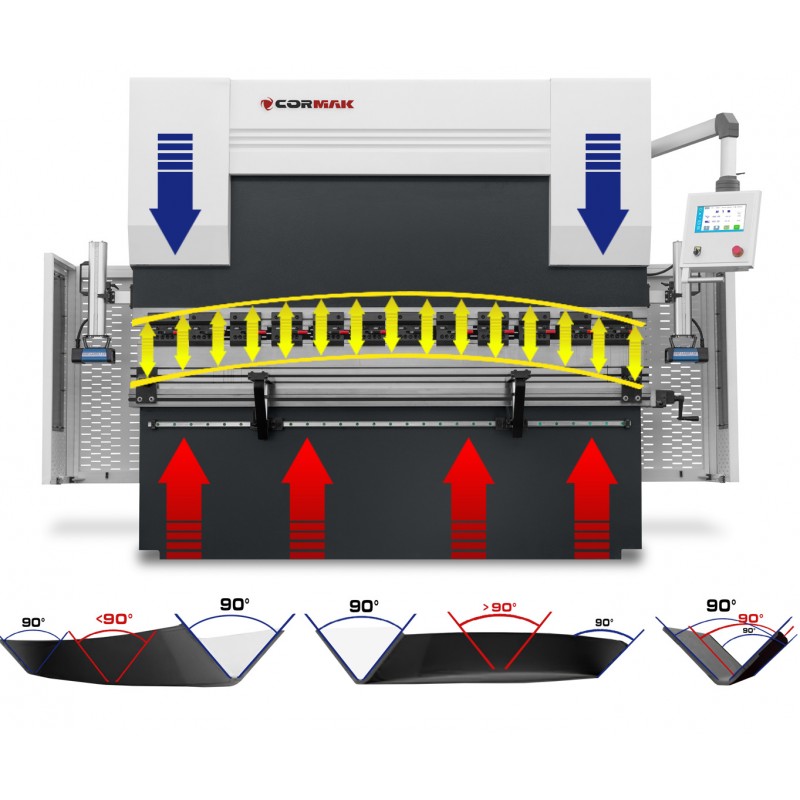

Automatic deflection compensation
Ensures a consistent bending angle along the entire bending length – (oprion*)
Manual deflection compensation (oprion*)
Ensures a consistent bending angle along the entire bending length – (oprion*)
High-quality components:
- Electrical system components by Schneider/Delta/Eaton
Control and Functionality:
CR-41 CNC
- equipped with a 10-inch touchscreen mounted on a movable arm, providing freedom of operation across the entire working area of the machine
- Programmability: ability to store up to 2,000 programmes, with 30 steps each, allowing flexible adaptation to various tasks
- Ergonomic operation: intuitive menu with English shortcuts enables quick familiarisation
The machine combines advanced technology with ease of operation, making it an ideal choice for both precise manual tasks and efficient serial production. High-quality components and advanced safety systems guarantee reliability and safe operation.
Safety
Laser safety system
As standard, a top-class laser safety system that protects the operator and more than doubles the bending speed.
We do not compromise on safety! High-class hydraulic connections and safety valves.
Warning against pseudo safety systems such as gates or light curtains, as they do not comply with CE requirements and may pose a risk to operators.
CE-compliant safety guards
Ergonomics and Additional Features:
- Mobile controller on a movable arm
- LED lighting: improves working comfort and safety
- Supports on linear guides
We care about the safety of our customers and their teams, which is why our press brakes are equipped with a range of advanced safety features. These include clear markings, side guards, rear safety gate and easily accessible emergency stop switches.
Each machine is supplied with a clear and detailed user manual.
The fact that a machine has CE certification does not automatically mean it is safe. What matters is which systems it is equipped with.
SCO – Oil cooling system
As standard, a system ensuring stable machine operating parameters even during long, continuous operation.
Punch and die clamping:
- As standard, segmented multi-groove four-sided dies and segmented punches
- The basic system used in CORMAK press brakes is the manual AMADA-type (European) system, enabling quick tool changes
- Punches are mounted from the side of the machine and locked with screws
Selection of die and punch
Due to the final result, proper selection of press brake tooling – the die and punch – is also important.
CORMARK press brakes continuously perform bending measurements and can, for example, correct deviations during the process to achieve the most optimal result.
Depending on the press force, segmented punches and dies may vary in length.
Included with the machine
Telephone consultations with a specialist
You can always count on specialist support.
Terms of cooperation
- Warranty period: 24 months.
- The machine is brand new
- Warranty and post-warranty service provided by the seller
Training and Machine Commissioning
It is possible to arrange professional training and machine commissioning carried out by a Cormak technician — this service is priced individually.
Contact our advisor to get more information.
Contact us
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
▶
