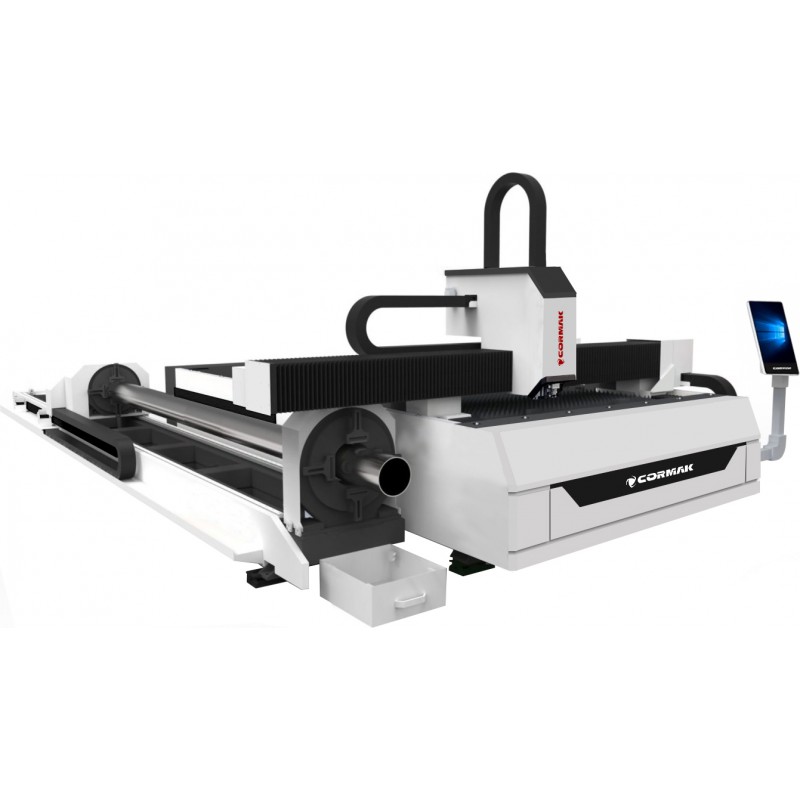

Fibre Laser Cutter CORMAK FIBER LF3015EPTR 2000W with Tube and Profile Attachment, Exchange Table and 240mm Chuck

Laser cutters are modern machines distinguished by numerous advantages. They are not only an excellent and much more cost-effective alternative to CO₂ technology, but also offer many benefits that allow production to be expanded (by up to 70%) and its quality improved. FIBER technology enables cutting of sheets and other materials of varying thicknesses, from very thin to very thick. The wavelength in the FIBER laser is 1.064 micrometres. These properties result in an intensity that is 100 times higher than that of CO₂ machines of similar power.

MAIN ADVANTAGES OF THE LASER

• maintenance-free fibre optics
• no wearing components
• the fibre laser source occupies around one-third less space
• high energy efficiency – 100,000 h operating life
• universal application (special steels, mild and stainless steel, copper, brass, aluminium, titanium)

Fibre laser

• increases work efficiency by 80%
• reduces service costs by 70%
• saves 80% of energy
• minimises gas consumption
• saves 30% of floor space







Dual application and cost savings

The LF3015EPR fibre laser cutter not only cuts sheet metal but also tubes and profiles. It offers multiple applications and saves more than 50% of floor space, effectively increasing productivity.

Exchange worktable

The exchange worktable consists of an upper and lower platform, the movement and exchange of which are controlled by the controller. The machine can perform platform exchange within 15 seconds.

Electric clamping chuck

The chuck grips the profile in two directions and automatically aligns it. The diagonal adjustment range is 20–240 mm.

Welded bed made of rectangular profiles

The bed structure has an internal honeycomb-like layout made of multiple welded rectangular tubes. Inside the tubes are reinforcements that increase bed strength as well as the rigidity and stability of the guide rail to effectively prevent deformation. High strength, stability and tensile resistance ensure 20 years of operation without distortion.

Automatic pipe support

Equipped with an intelligent pipe support assembly that eliminates deformation problems during the cutting of long pipes.

Raytools cutting head

Technical parameters

Cutting parameters

Actual parameters may vary depending on technical conditions and materials used.

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
