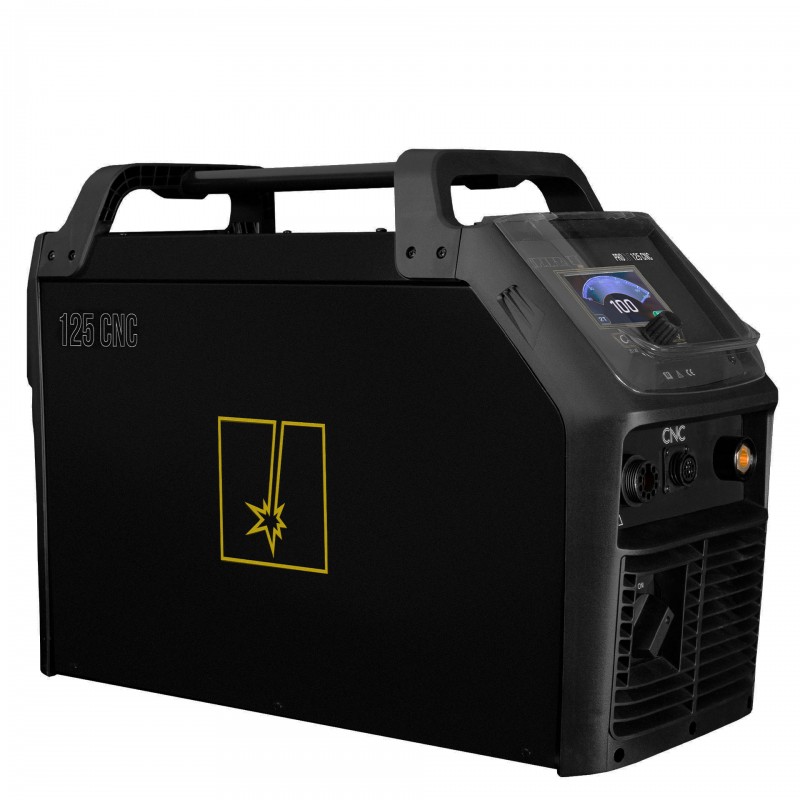

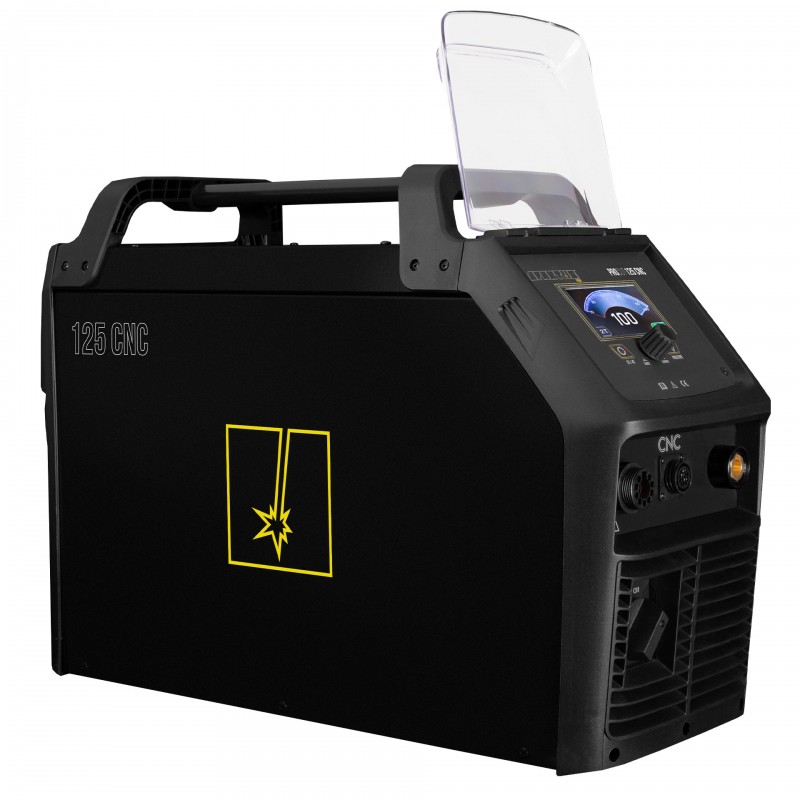

SPARTUS® ProCUT 125CNC is an advanced plasma cutter with an integrated CNC control socket, designed for cutting metals and other electrically conductive materials. The machine is powered by a three-phase 400V supply, ensuring reliability and efficiency.
SPARTUS® ProCUT 125CNC is a technologically advanced plasma cutting machine equipped with an integrated CNC control socket. It is dedicated to cutting metals and all electrically conductive materials, powered by a three-phase 400V supply.
Thanks to the latest technology, the machine offers a professional power source with a high 100% duty cycle and 100A cutting current. The maximum cutting thickness is 55 mm.
The innovative non-contact pilot arc ignition system, operating without high-frequency HF, ensures the highest cutting quality and extended consumable lifespan.

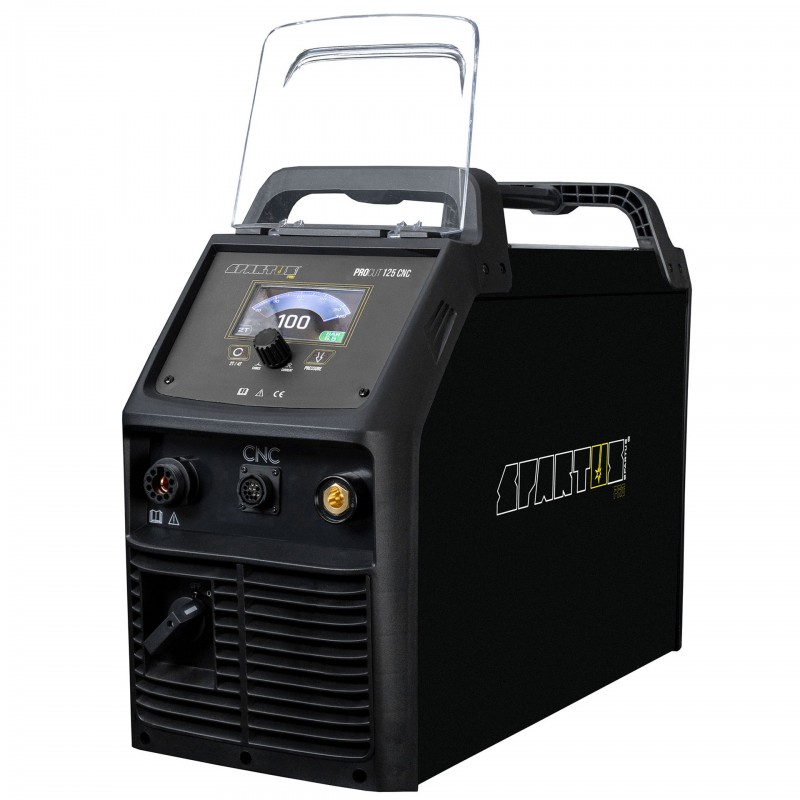

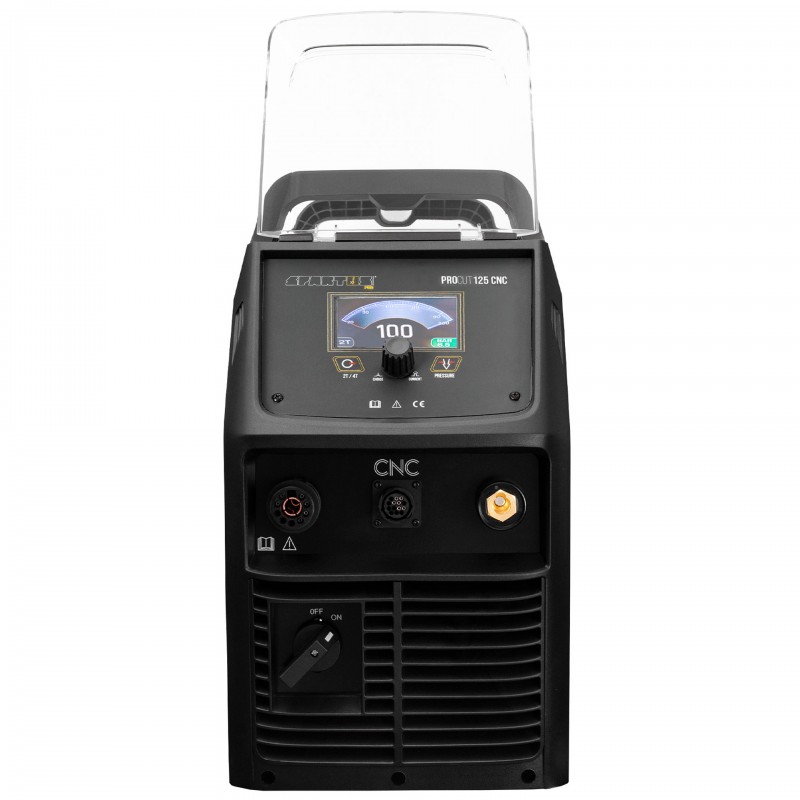

The intuitive control panel with an LCD display allows smooth adjustment of cutting current and precise pressure settings. Additionally, the cutter is equipped with a 2T / 4T operating mode switch, enhancing its functionality.
SPARTUS® ProCUT 125CNC is a reliable tool, ideal for use in production facilities, industry, and as a power source for CNC plasma tables.
| Supply voltage | ~3 × 400V ± 10% 50 / 60 Hz | ||
| Cutting current [A] | 20 – 100 | ||
| Max. cutting thickness [mm] | 55 | ||
| Duty cycle [%] | 100 | ||
| PLASMA PARAMETERS |
|||
| Output voltage [V] | 88 - 106 | ||
| Recommended working pressure [bar] | 5.5 | ||
| Air consumption [l/min] | 250 | ||
| Post-gas | YES | ||
| Non-contact arc ignition without HF | YES | ||
| 2T / 4T | YES | ||
| OTHER PARAMETERS |
|||
| Current consumption [A] | 28 | ||
| Power factor (cosφ) | 0.76 | ||
| Efficiency η [%] | 85 | ||
| Insulation class | H | ||
| Protection class | IP21S | ||
| Weight [kg] | 32 | ||
| Dimensions [mm] | 770 × 270 × 490 | ||
