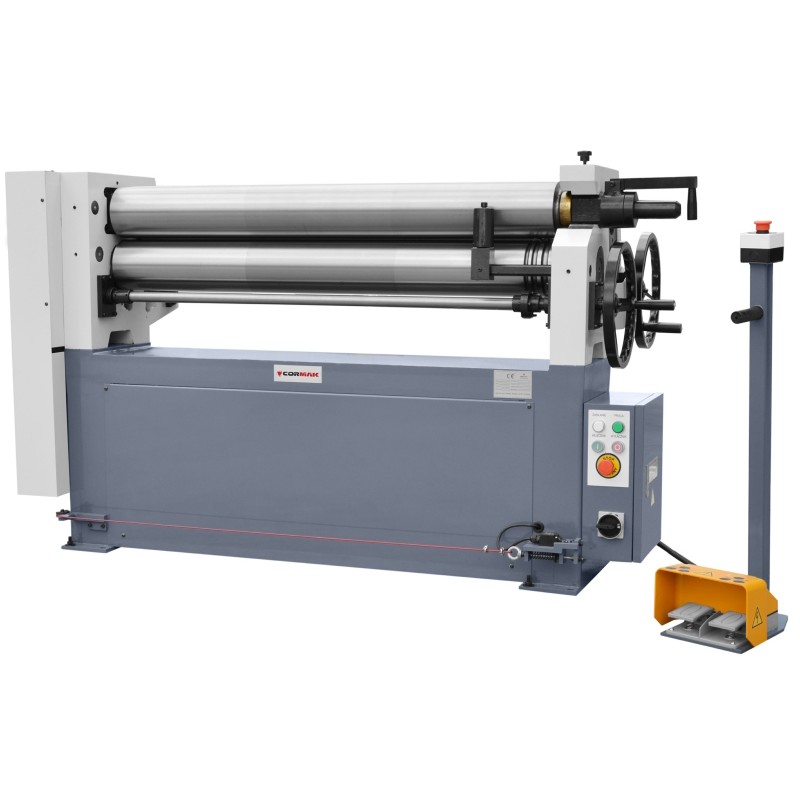

The three-roller electromechanical roller ESR 2070×2.5 mm with asymmetric rollers is designed for producing cylindrical and conical shells of various diameters. This machine is intended for bending sheet metal up to 2.5 mm thick and 2,070 mm long, with a top roller diameter of 120 mm. It is ideal for users seeking a machine that combines medium performance with low operating cost, offering simplicity and functionality.

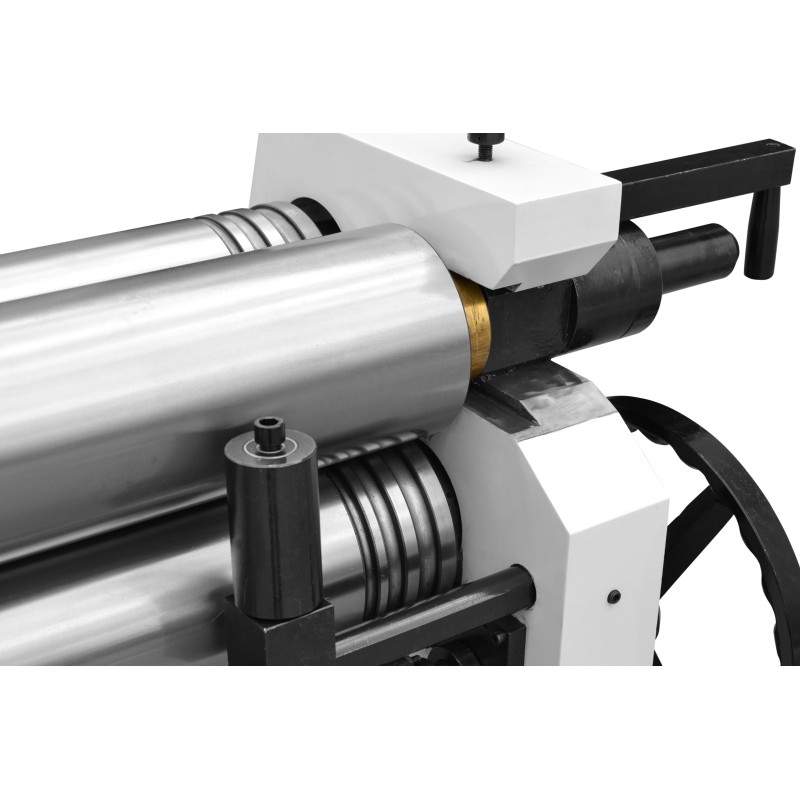

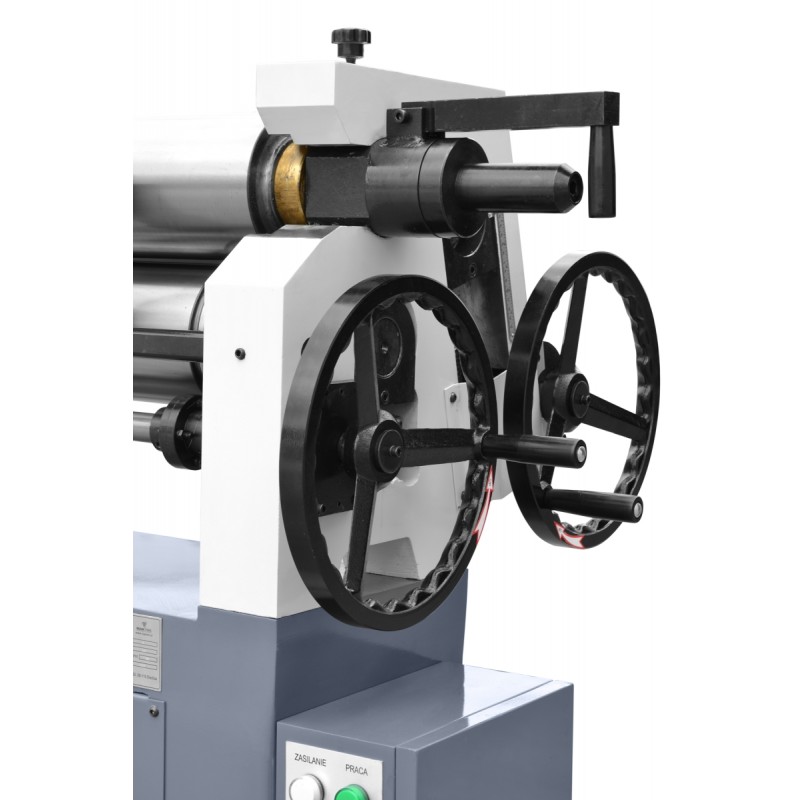

The chain drive transfers rotation from the electric motor to the rollers. The upper roller is foldable, which facilitates the removal of finished products. The foldable roller is equipped with a lock preventing accidental opening during operation.
| Model: | ESR 2070×2.5 mm |
| Maximum working width: | 2,070 mm |
| Maximum material thickness: | 2.5 mm |
| Roller diameter: | 120 mm |
| Motor power: | 2.5 kW |
| Dimensions (L/W/H): | 2,600 × 600 × 1,040 mm |
| Weight approx.: | 1,200 kg (±2%) |
