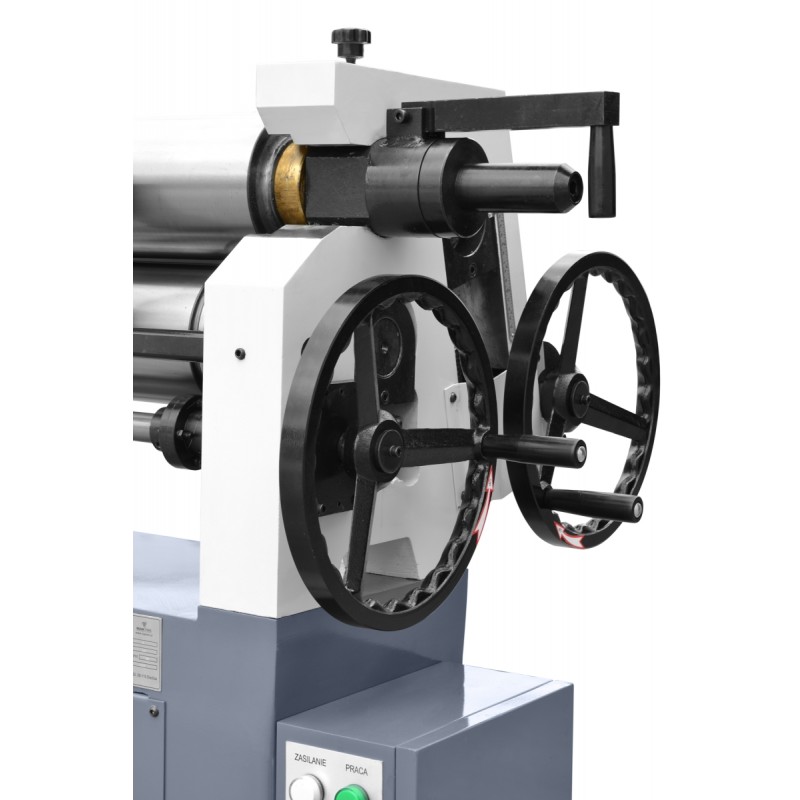

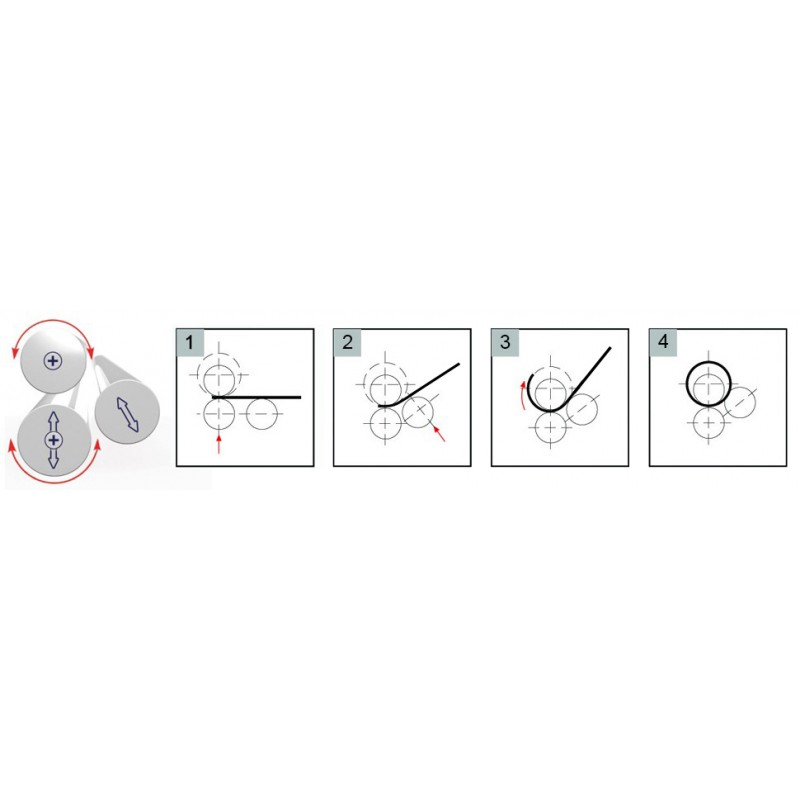

The three-roller electromechanical roller ESR 1550×3.5 mm with asymmetric rollers is designed for producing cylindrical and conical shells of various diameters. This machine is intended for bending sheet metal up to 3.5 mm thick and 1,550 mm long, with a top roller diameter of 120 mm. It is ideal for users seeking a machine with medium performance and low operating cost, combining simplicity with functionality.

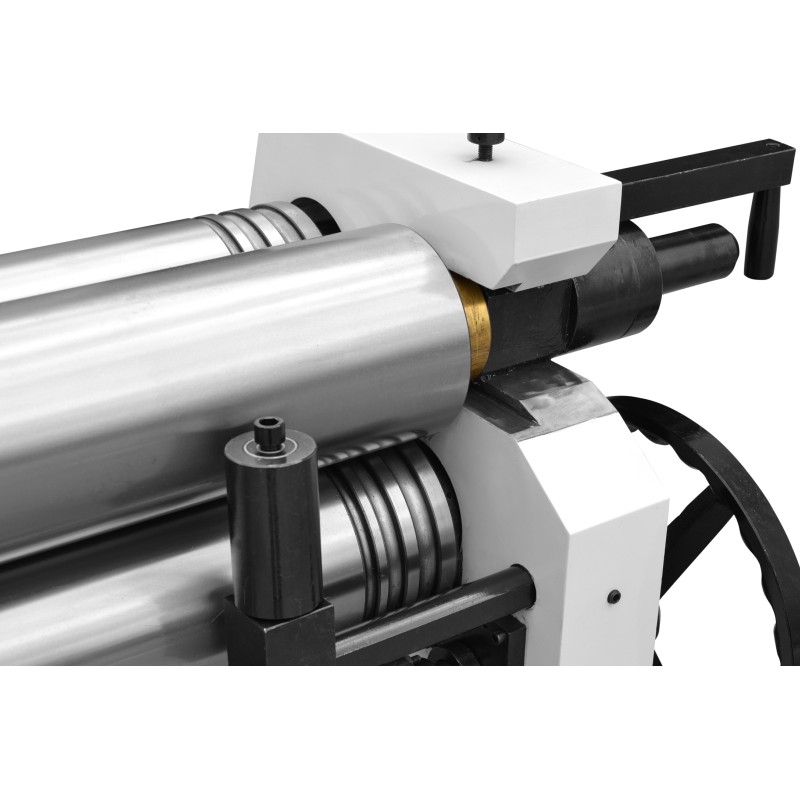

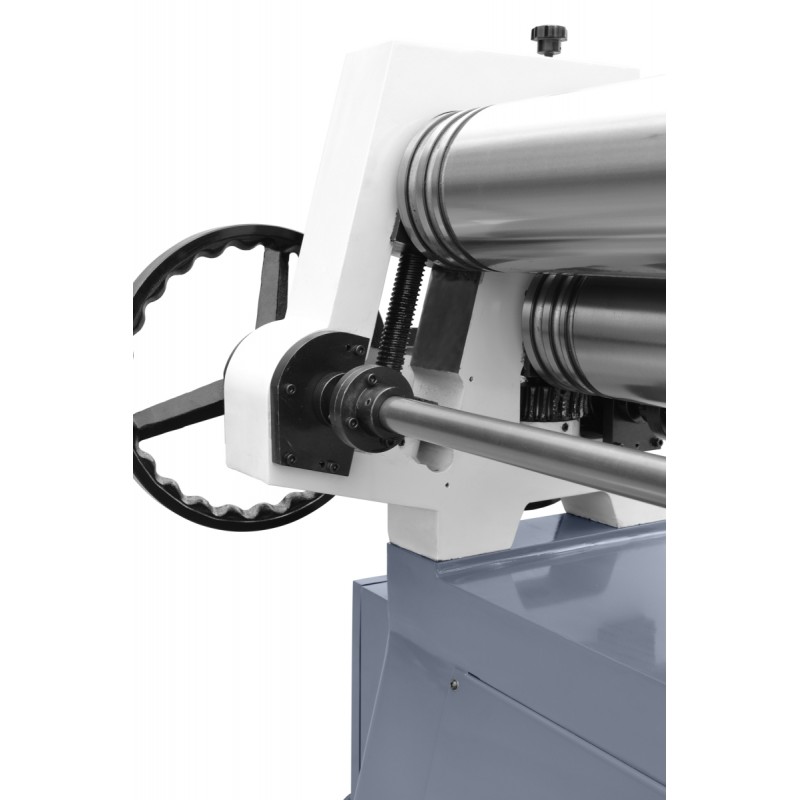

The chain drive transfers rotation from the electric motor to the rollers. The upper roller is foldable, which facilitates the removal of finished products. The foldable roller is equipped with a lock to prevent accidental opening during operation.
| Model: | ESR 1550×3.5 mm |
| Maximum working width [mm] | 1,550 mm |
| Maximum material thickness [mm] | 3.5 mm |
| Roller diameter [mm] | 120 mm |
| Motor power [kW] | 2.2 kW |
| Dimensions (L/W/H): | 2,100 × 570 × 1,040 mm |
| Weight approx. | 935 kg (±2%) |
