Category: ESR Mechanical Bending Rolls

Sheet Metal Roller CORMAK ESR 1300×1.5

Reference:
esr1300
Manufacturer: CORMAK

The electromechanical roller ESR 1300×1.5 mm with asymmetric rollers is designed for producing cylindrical and conical shells of various diameters. This machine is intended for bending sheet metal up to 1.5 mm thick and 1,300 mm long, with a top roller diameter of 75 mm. The three-roller benders from this series are particularly popular due to their simple yet functional construction.

tax included €1,932.54
excl. tax €1,623.98
Available
tax included €1,932.54
excl. tax €1,623.98
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Sheet Metal Roller CORMAK ESR 1300×1.5
excl. tax €1,623.98
tax included €1,932.54

Related categories

ESR Mechanical Bending Rolls Mechanical Plate Rolling Machines Products Rolling Mills & Plate Bending Machines Sheet Metalworking Machines

Description

Machine Description:

    • Asymmetric roller arrangement

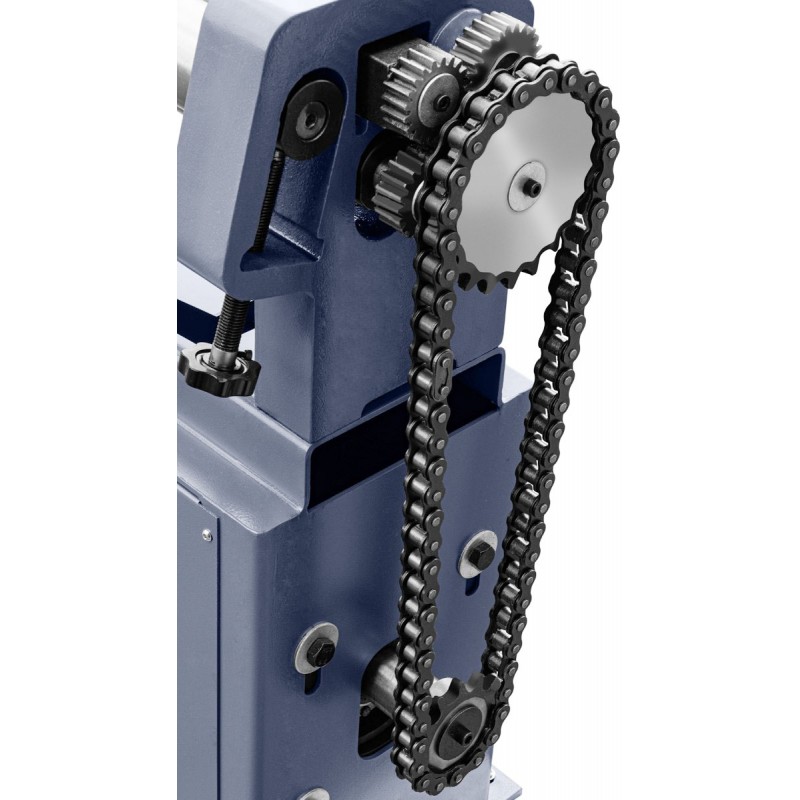

    • The lower and upper rollers rotate through a system of gears and a chain drive powered by an electric motor
    • The upper and lower rollers rotate in both directions
    • Lower and side rollers with height adjustment (manually adjustable)
    • Possibility of conical bending

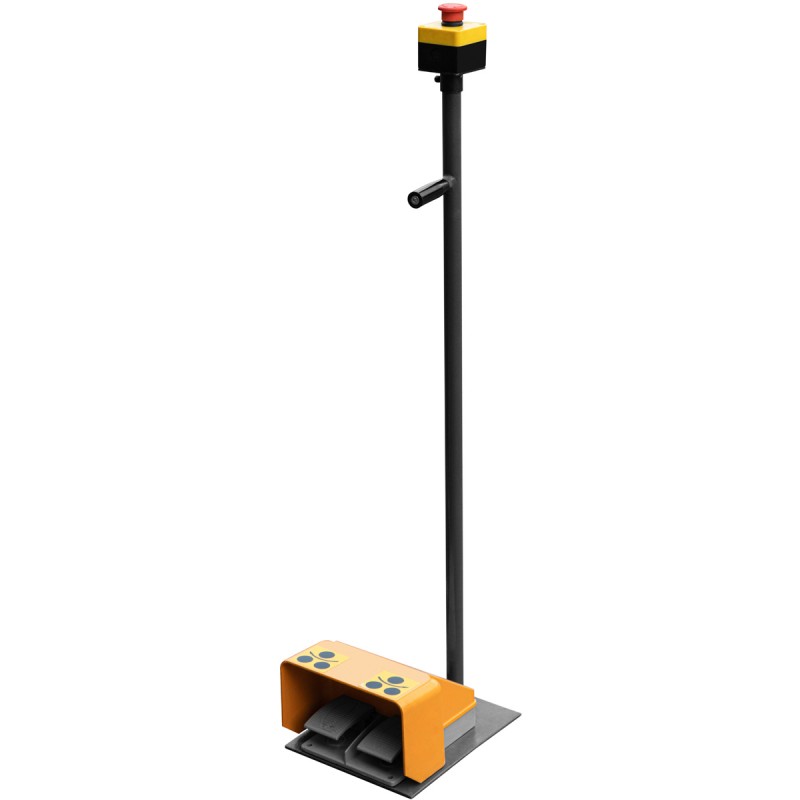

    • Foot controller with emergency stop button

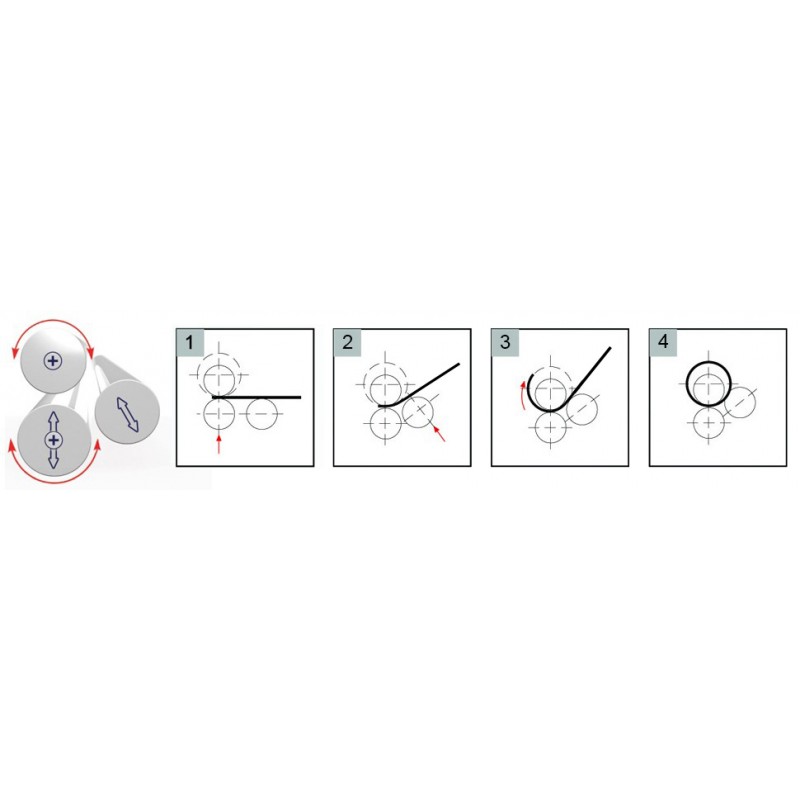

                  Processing Diagram:

                  Sheet Metal Roller CORMAK ESR1300×1.5 mm

                  Technical Data:

                  Model: ESR1300×1.5 mm
                  Maximum working width: 1,300 mm
                  Maximum material thickness: 1.5 mm
                  Roller diameter: 75 mm
                  Motor power: 0.75 kW
                  Dimensions (L/W/H): 1,710 × 500 × 1,100 mm
                  Weight approx. 340 kg (±2%)

                  Standard Equipment:

                  • Foot controller for operation
                  • User manual
                  • CE declaration of conformity
