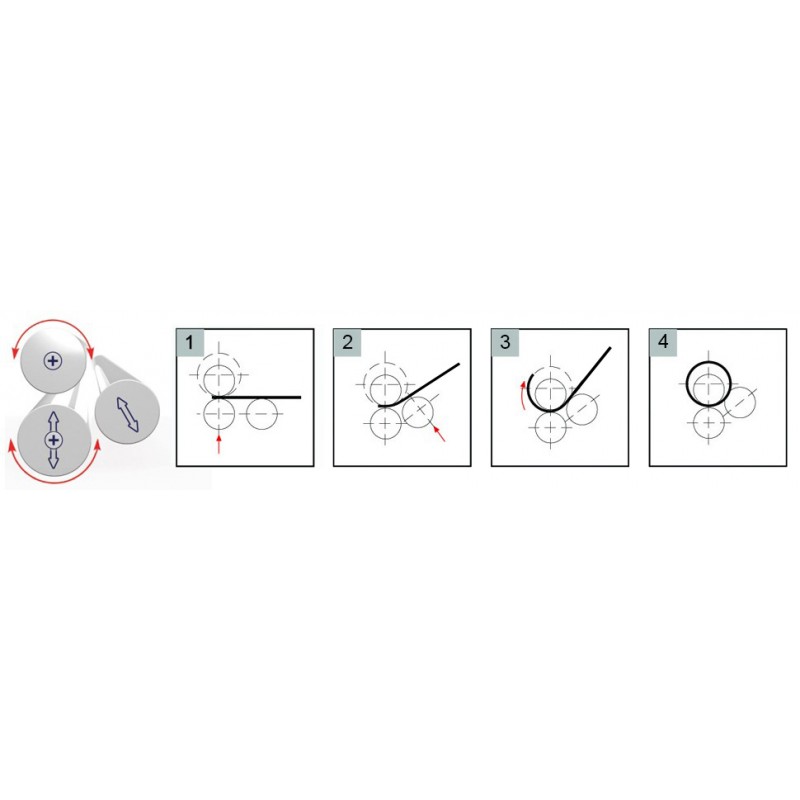

The three-roller electromechanical roller ESR 2020×3.5 mm with asymmetric rollers is designed for producing cylindrical and conical shells of various diameters. This machine is intended for bending sheet metal up to 3.5 mm thick and 2,020 mm long, with a top roller diameter of 125 mm. It is ideal for users seeking a machine offering medium performance and low operating cost, combining simplicity with functionality.
The chain drive transfers rotation from the electric motor to the rollers. The upper roller is foldable, which facilitates the removal of finished products. The foldable roller is equipped with a lock to prevent accidental opening during operation.
| Model: | ESR 2020×3.5 mm |
| Maximum working width: | 2,020 mm |
| Maximum material thickness: | 3.5 mm |
| Roller diameter: | 125 mm |
| Motor power: | 3.0 kW |
| Dimensions (L/W/H): | 2,530 × 640 × 1,050 mm |
| Weight approx.: | 1,230 kg (±2%) |
