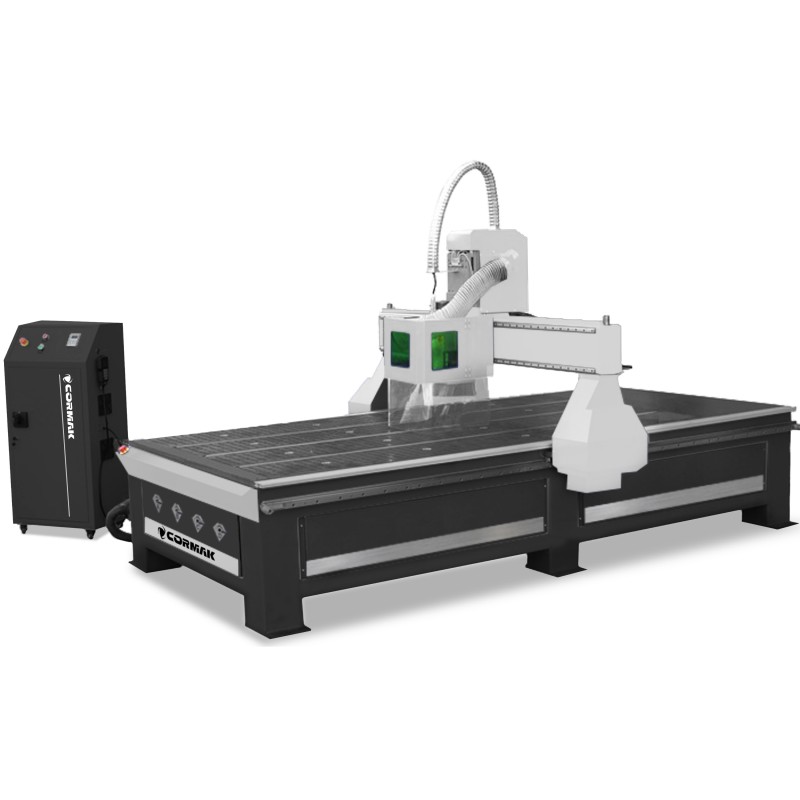

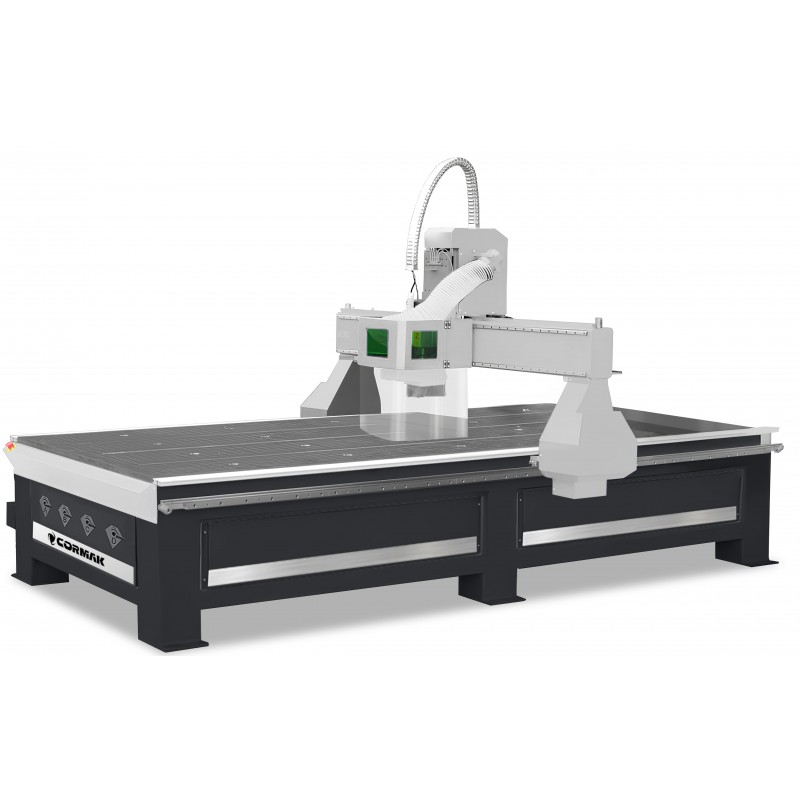

CNC Milling Machine / CNC Router CORMAK C1525 PREMIUM (1500x2500) with Hybrid Table

Construction

• Rigid welded steel construction,
• The gantry arms are made of hardened, powder-coated thick sheet steel, ensuring increased stiffness and improved machining precision.

Worktable

• Hybrid worktable design,
• Equipped with T-slots for manual clamping of materials measuring 1500 x 2500 mm,
• Sectional vacuum table with four independent vacuum zones.

Drive

• SERVO motors provide high acceleration and movement speed in all axes.
• X and Y axes use high-quality rack and pinion drives, ensuring durability and precision,
• Z axis driven by a high-quality ball screw.
• All axes move on linear guideways.

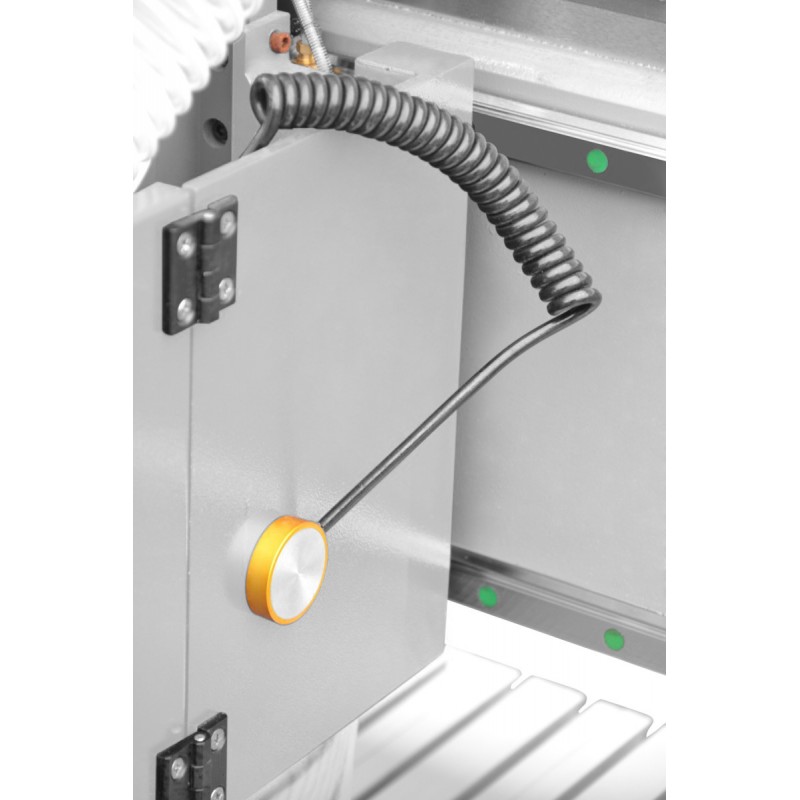

• The machine is equipped with a tool height sensor.
• Linear bearings: trapezoidal rails, Hiwin carriages.

Spindle

• The spindle uses high-quality precision bearings, ensuring quiet operation and long service life.
• Tool height measuring sensor – included.
• Spindle speed range from 4,500 to 18,000 rpm.
• Tool clamping via ER32 collets.

Software

• OPTIONALLY latest software UCanCAM V13 (software allows importing files from Corel, AutoCAD, etc. Import/export of files, text editing and creation, and many other features)
• Enables fast and easy design of parts, which the program then converts into G-code. It also allows importing ready-made files from other programs.
• The machine features G-code path memory (in the event of power loss, it resumes from the last point without time or material loss.)

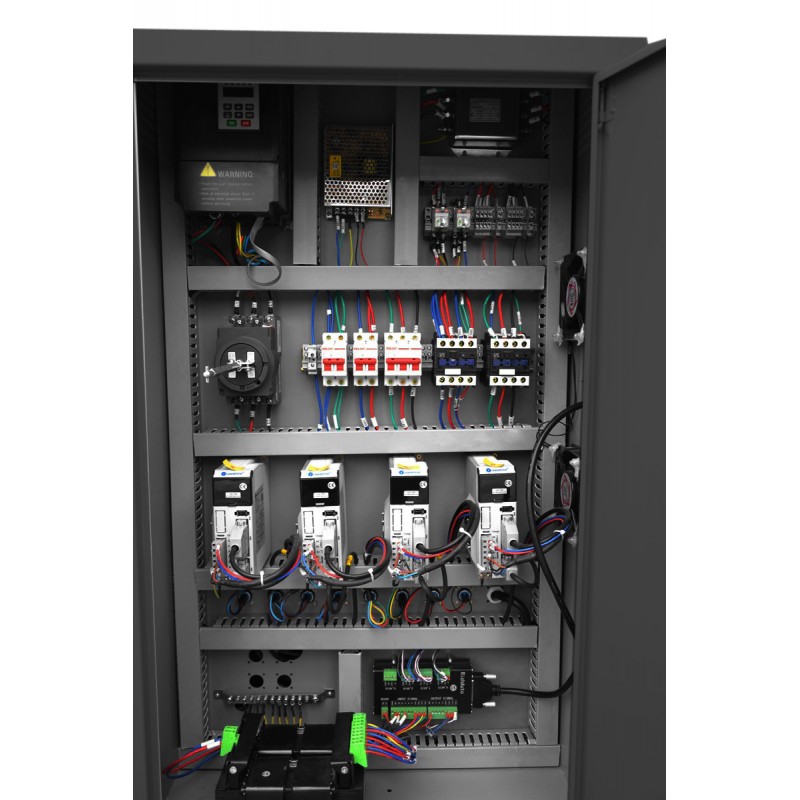

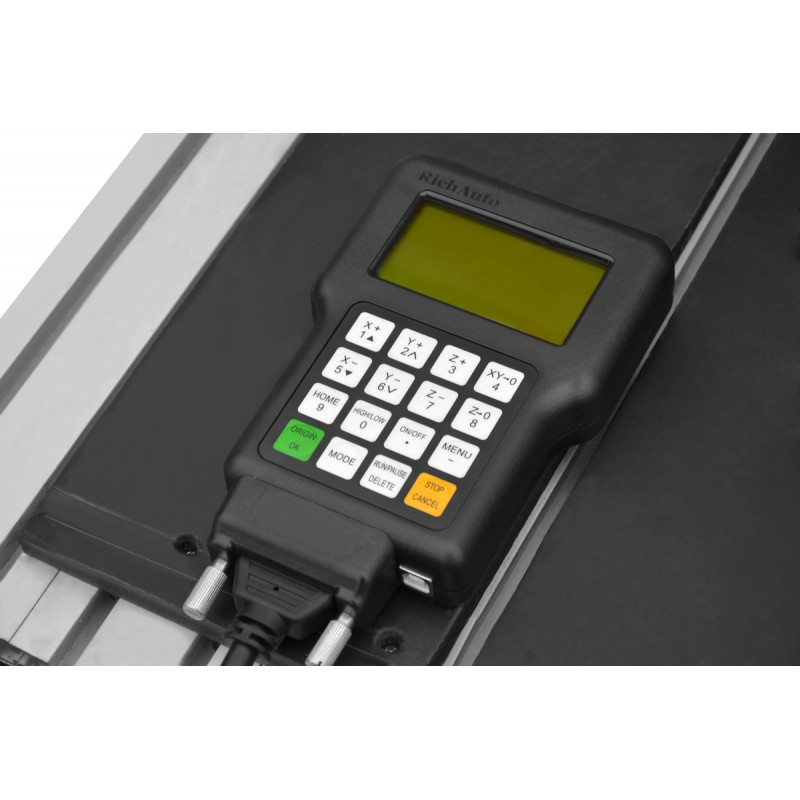

DSP Control

• Digital Signal Processing – digital signal processing system
• The DSP controller has its own processor and memory, ensuring reliable performance and easy operation.
• Provides smooth machine operation and machining precision.
• After power loss, restarting the program is unnecessary.
• The built-in memory allows machine operation without reloading the program each time.



We offer machines with genuine CE certification – certified by leading EU institutions.

By choosing the CORMAK brand, you choose machining precision, long service life, and operator safety.

We offer warranty and post-warranty service. Machine training and/or commissioning is available upon individual pricing — please contact our consultant.

Technical parameters

Equipment

• Air-cooled spindle, PREMIUM version
• Hybrid servo drives
• Vacuum table – 4 independent vacuum zones + T-slot table for manual fixing
• Tool height sensor included
• Tool set, collets, levelling feet, and accessories
• DSP control – digital signal processing

Unloading and machine placement are the customer’s responsibility.

Power plug on the customer’s side due to various 16A / 32A sockets.

On-site commissioning of CNC routers available upon request, with individual pricing.

CNC Milling Router Commissioning
