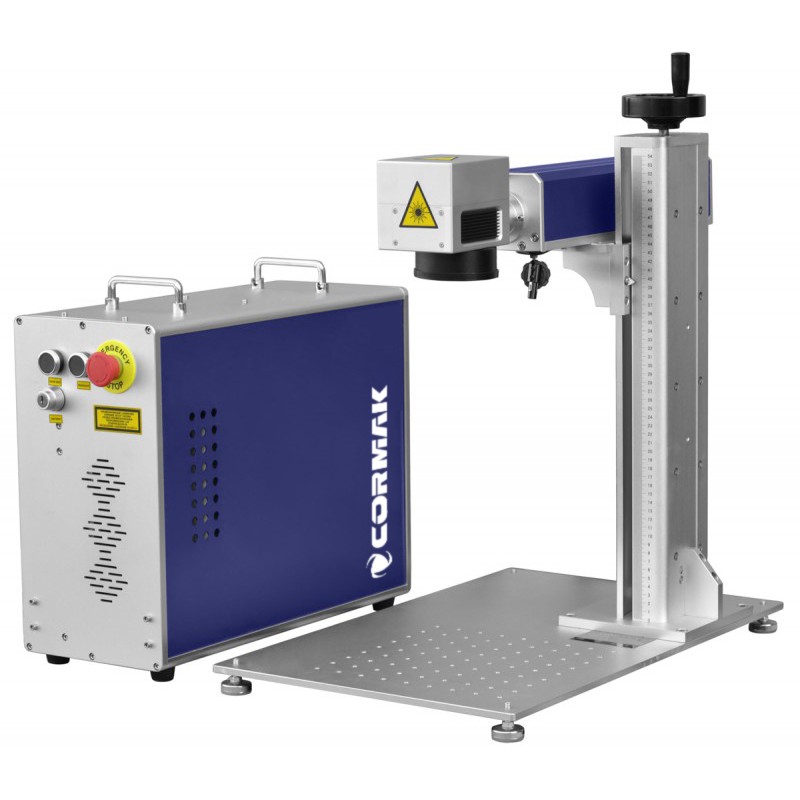

Fibre laser marking machine with a wide range of applications. The device can process standard metals and their alloys (iron, copper, aluminium, zinc, etc.), precious metals (gold, silver, titanium, etc.) as well as other metallic materials.
The device meets all safety requirements!
It features proper safety markings in accordance with standards and key-operated start-up.
| TECHNICAL PARAMETERS | |
| Maximum power consumption | 800W |
| Laser type – fibre | 1064 nm / 20W |
| Auxiliary (red) laser pointer | <=5mW |
| Maximum marking depth | <2.0mm |
| Minimum marking line width | 0.015mm |
| Maximum marking speed | 7000mm/s |
| Minimum character size | 0.1mm |
| Positioning accuracy | +/- 0.001mm |
| Laser module lifespan | approx. 100,000h |
| Control software | EZCAD2 |
| Supported file formats | PLT, DXF, DWG, BMP, JPG, PNG |
| Working area | 210 x 150mm |
| Marking area (lens) | 200 x 200mm |
| Weight | 48kg |
Included with the machine:
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
