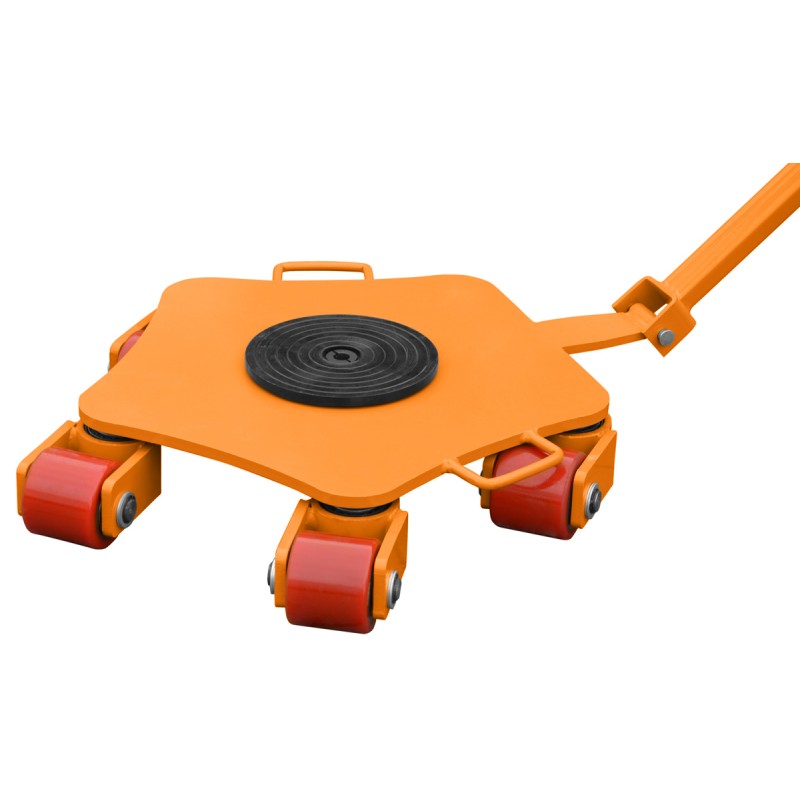

The mobile machine skate has been designed for transporting heavy loads weighing up to 5,000 kg. The polyurethane tread prevents damage to floor surfaces, contributing to safe and efficient operation. This allows the operator to transport heavy items smoothly, improving overall work efficiency.
The CRP machine skate with a load capacity of 5,000 kg is a specialist device used for handling and transporting heavy objects in workplaces, warehouses, factories and other industrial environments. Its primary purpose is to facilitate and improve the efficiency of heavy load transport while minimising the risk of floor damage.
This type of machine skate is equipped with polyurethane rollers, which are a flexible and durable material. The rollers are mounted on the underside of the platform and allow smooth movement across the surface. As a result, effective floor protection is ensured, even when transporting very heavy loads.
The main advantages of polyurethane rollers include:
Abrasion resistance: polyurethane is a highly durable material with excellent resistance to wear. As a result, the rollers retain their properties over a long period, even with frequent use and when transporting heavy objects.
Minimal risk of floor damage: thanks to their elasticity and even load distribution, polyurethane rollers significantly reduce the risk of scratches and damage to floor surfaces. This allows users to transport heavy items safely without concern for damaging the substrate.
Quiet transport: polyurethane rollers are also characterised by low noise levels during movement. This makes the machine skate suitable for use in various working environments, regardless of the noise generated by the transported heavy items.
In addition, the platform is equipped with a folding drawbar. This functional element allows the length of the platform to be adapted to different transport requirements. The folding drawbar enables easy manoeuvring and also simplifies storage and transport when the platform is not in use. This practical solution provides flexibility and convenience, allowing the machine skate to adapt to changing working conditions and transport needs.
| STATIC LOAD CAPACITY | 5,000 kg |
| DYNAMIC LOAD CAPACITY | 3,000 kg |
| ROLLER SIZE | Ø80x70 mm |
| NUMBER OF ROLLERS | 5 |
| LOADING HEIGHT | 107 mm |
| LOAD-BEARING SURFACE PER ELEMENT | Ø175 mm |
| SUPPORT POINTS | 1 |
| DRAWBAR LENGTH | 920 mm |
| PLATFORM WIDTH | 500 mm |
| WEIGHT | 38 kg |
