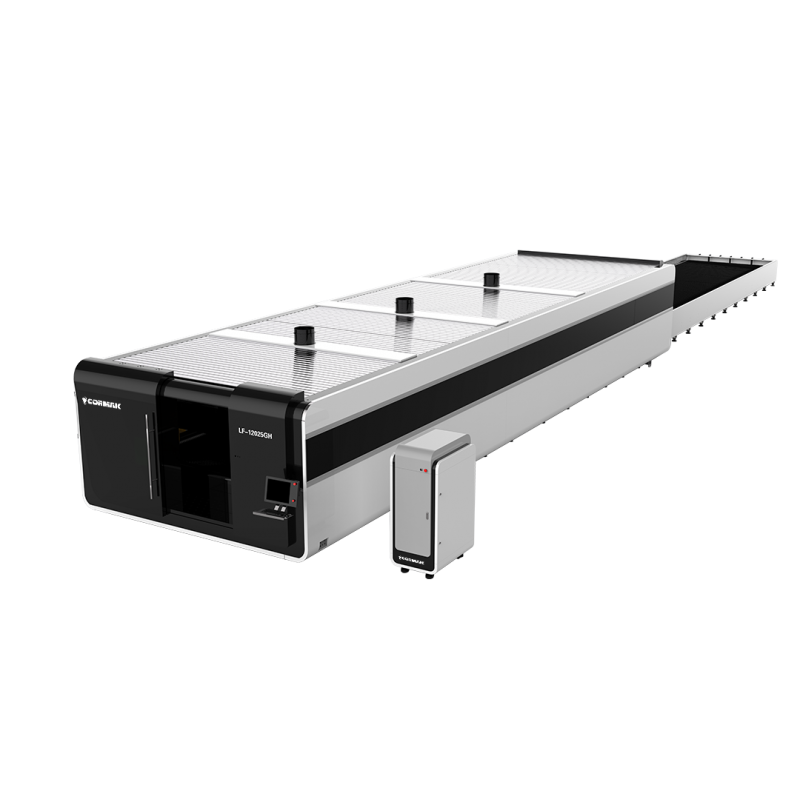

The ultra-fast, fully enclosed large-format fiber laser cutter is designed for industrial applications. With a 20 kW laser source, it can cut sheets up to 70 mm thick. Modern design solutions significantly reduce processing time while increasing productivity and operational efficiency.
Fiber laser cutters are modern machines distinguished by numerous advantages. They are not only an excellent and far more cost-effective alternative to CO2 technology, but also offer many benefits that enable up to 70% higher production capacity and improved quality. FIBER technology allows cutting of sheets and other materials of varying thickness — from ultra-thin to very thick. The wavelength of a FIBER laser is 1.064 µm, resulting in an intensity 100 times greater than that of CO2 lasers of comparable power.
The moving gantry is made from heat-treated aerospace-grade aluminum, pressed with a force of 4300 tons, achieving exceptional rigidity. This aluminum alloy provides excellent stiffness (superior to cast iron), low weight, high resistance to corrosion and oxidation, and excellent machinability.
The machine is equipped with a dual worktable system — an upper and a lower platform — both controlled by the CNC software. The exchange cycle of the working platforms takes just 15 seconds, minimizing downtime and ensuring continuous production.

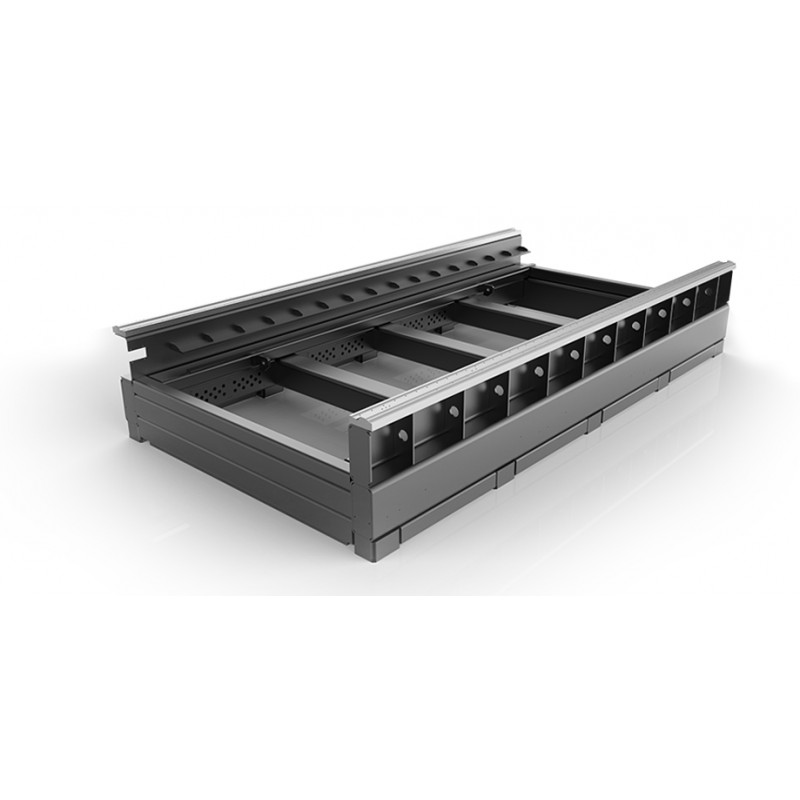

The welded frame has an internal honeycomb structure made of numerous interconnected rectangular tubes. Inside each tube, reinforcement ribs have been installed to increase the frame’s strength, stiffness, and stability of the guide rail. This design effectively prevents deformation. The high rigidity and tensile strength of the structure ensure up to 20 years of use without distortion.
The machine is equipped with a high-power IPG YLS-CUT laser source (20 kW). This industrial-grade fiber laser enables cutting of stainless steel, aluminum, and other metals up to 70 mm thick with outstanding precision and edge quality.
The machine is equipped with an advanced segmented fume extraction system. Each section of the bed has a high-pressure fan that captures smoke and dust from all directions. The strong suction efficiently removes fumes, keeps the air clean, and protects the optical lens from contamination.
Equipped with high-performance linear motors, the FIBER laser cutter allows fast and precise cutting of any shape from sheet metal. Extremely high speeds and accelerations, combined with high-resolution feedback systems, provide unmatched performance and accuracy.
A linear motor converts electrical energy directly into mechanical linear motion. The main advantages of linear motor technology include minimized friction, zero backlash, no mechanical transmission losses, and the elimination of positioning errors. The high dynamics of operation are the key to superior efficiency.
Installation of linear drives on all axes guarantees long-term accuracy and consistent performance. These drives require no maintenance and ensure completely wear-free operation.
| LF10025GH | LF12025GH | |
| WORKING AREA | 10000 × 2500 mm | 12000 × 2500 mm |
| LASER POWER | 20000 W | |
| PRECISION | ±0.02 mm/m | |
| MAXIMUM SPEED | 200 m/min | |
| MAXIMUM ACCELERATION | 4G | |
| POWER SUPPLY | 400 V / 50 Hz | |
| DIMENSIONS | 22953.5 × 4006 × 2336.5 mm | 27092 × 4119 × 2336.5 mm |
Actual parameters may vary depending on material type, technical conditions, and configuration.
