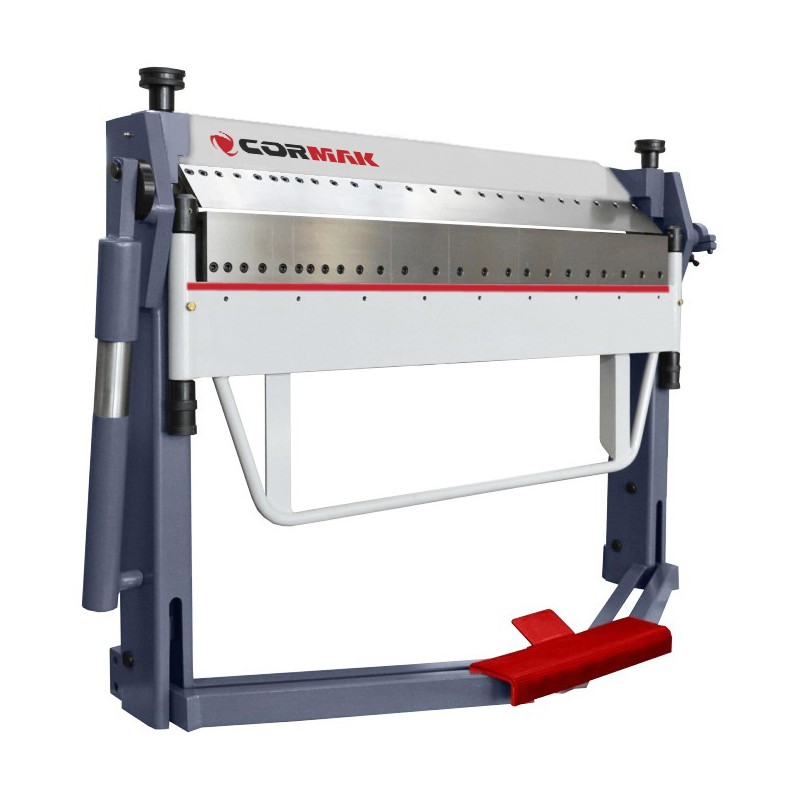

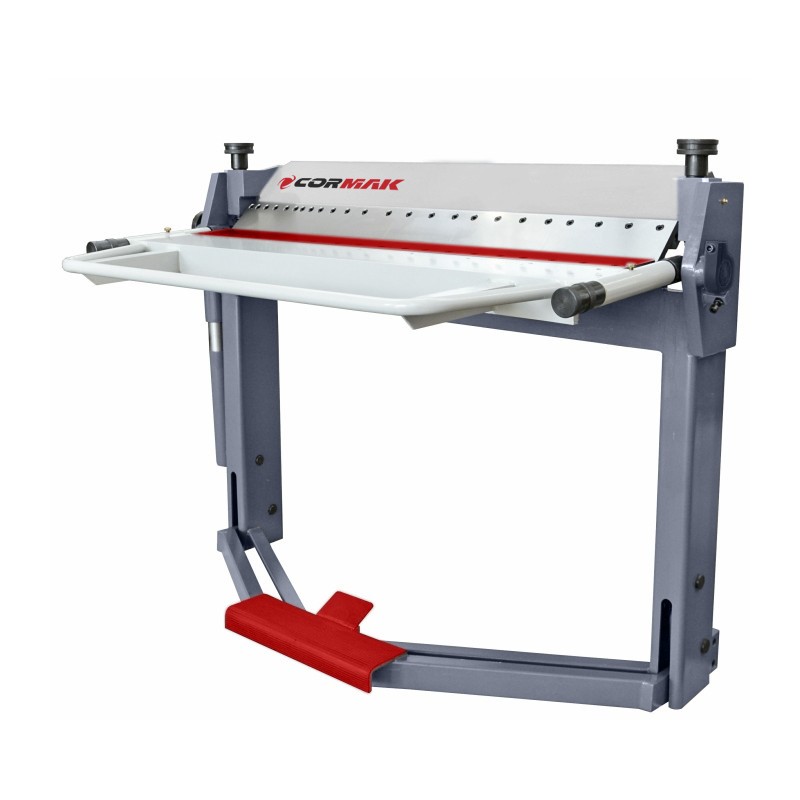

The folder is equipped with replaceable segments both on the upper and lower parts, providing exceptionally wide versatility for bending large components as well as small parts. The segments are made of high-strength cast-iron alloys, resistant to deformation and extremely durable. The simple construction ensures comfortable operation and broad practical usability. The smallest segment that can be mounted is 25 mm and the largest 270 mm. Their interchangeable positions allow bending of any shape with the desired precision. With a maximum sheet thickness of 2.0 mm and an adjustable opening up to 30 mm, this model offers virtually unlimited possibilities.
|
WORKING WIDTH |
1,270 mm |
|
MAXIMUM SHEET THICKNESS |
2.0 mm |
|
MAXIMUM OPENING HEIGHT |
48 mm |
|
BENDING ANGLE |
0°–135° |
|
NUMBER OF SEGMENTS |
12 pcs |
|
DIMENSIONS |
1,710 × 750 × 1,420 mm |
|
WEIGHT |
422 kg |
▶
