A specialised fibre laser designed to cut not only sheet metal but also tubes and profiles. High acceleration, exceptional cutting precision, a rotary chuck for pipes and an exchangeable table make this laser cutter unrivalled among other fibre laser cutting machines. One machine – many possibilities. Save more with our fibre laser.
Laser cutting machines are modern devices distinguished by numerous advantages. They are not only an excellent and much more cost-effective alternative to CO2 technology but also have many inherent features that enable production to expand (by up to 70%) and improve quality. The FIBER technology allows cutting of sheets and other materials of various thicknesses – from very thin to very thick. The wavelength of the FIBER laser is 1.064 micrometres. These characteristics provide an intensity 100 times greater than that of CO2 systems of comparable power.
MAIN ADVANTAGES OF THE LASER
Fibre laser

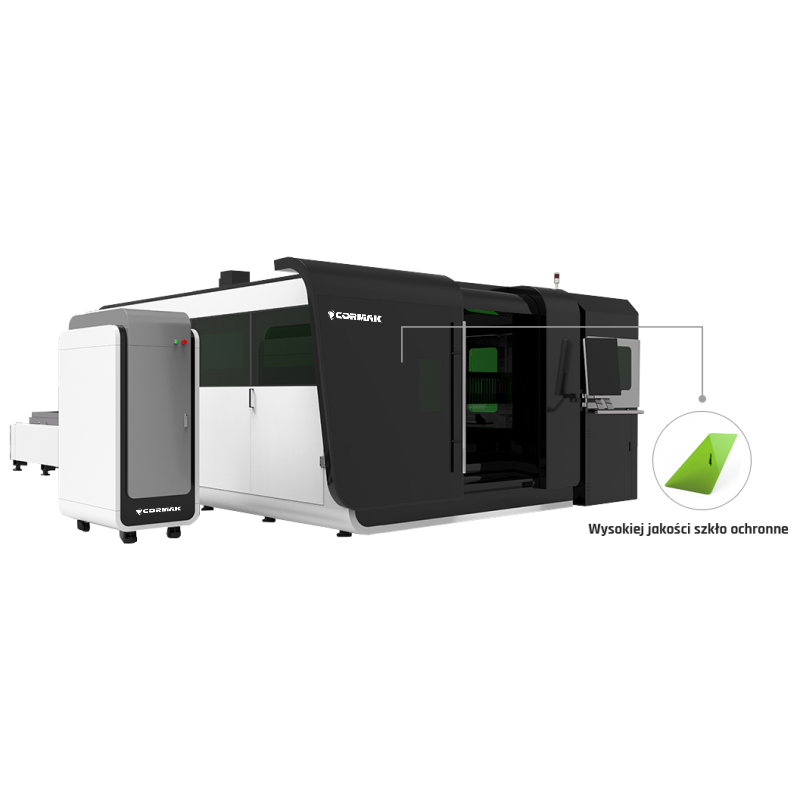

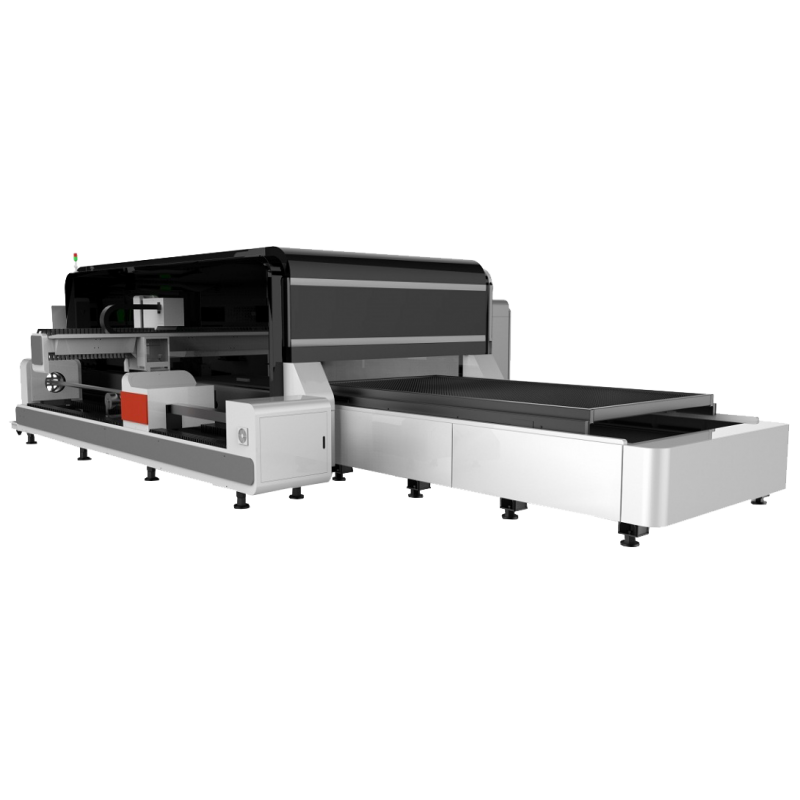

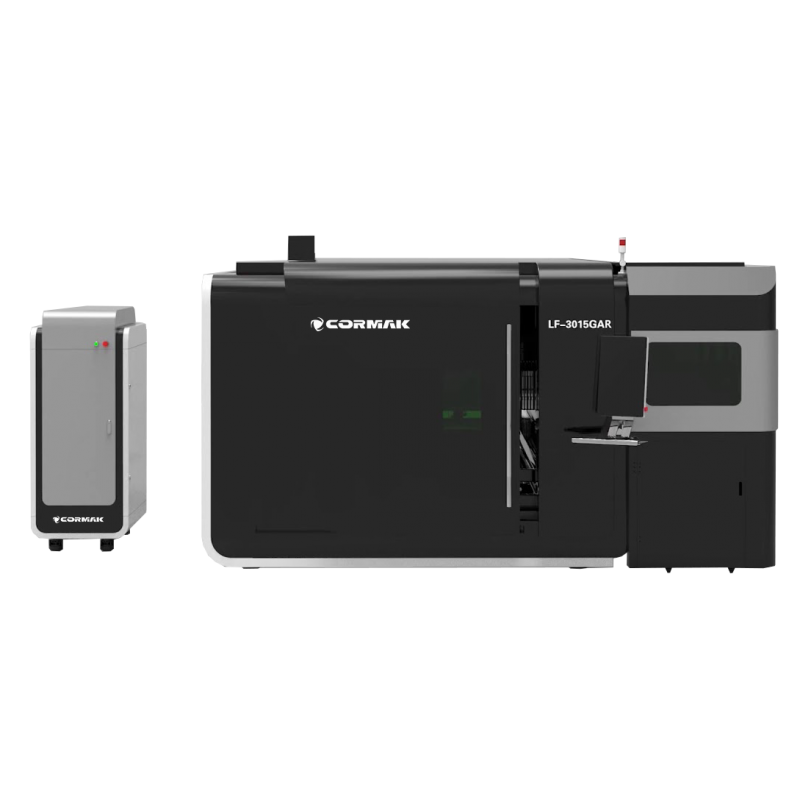

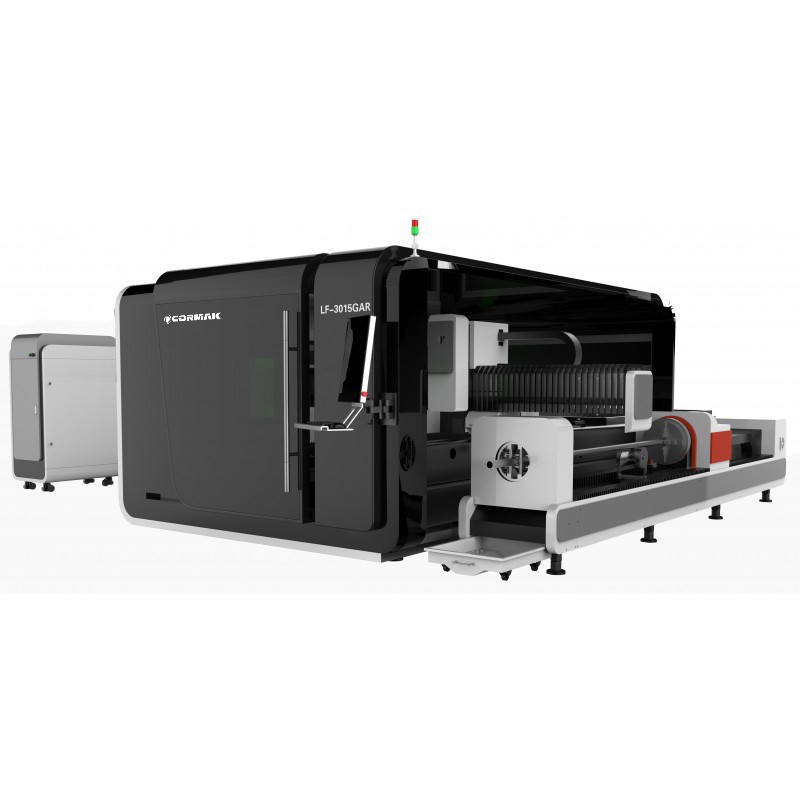

The fibre laser cutter LF3015GAR cuts not only sheets but also tubes and profiles. It has multiple applications and saves more than 50% of workspace, effectively increasing productivity.
The sliding gantry structure is made of aged aerospace aluminium formed under a pressure of 4,300 tonnes, providing exceptional rigidity. Aerospace aluminium offers many benefits: high stiffness (greater than cast iron), low weight, corrosion and oxidation resistance, and excellent machinability.

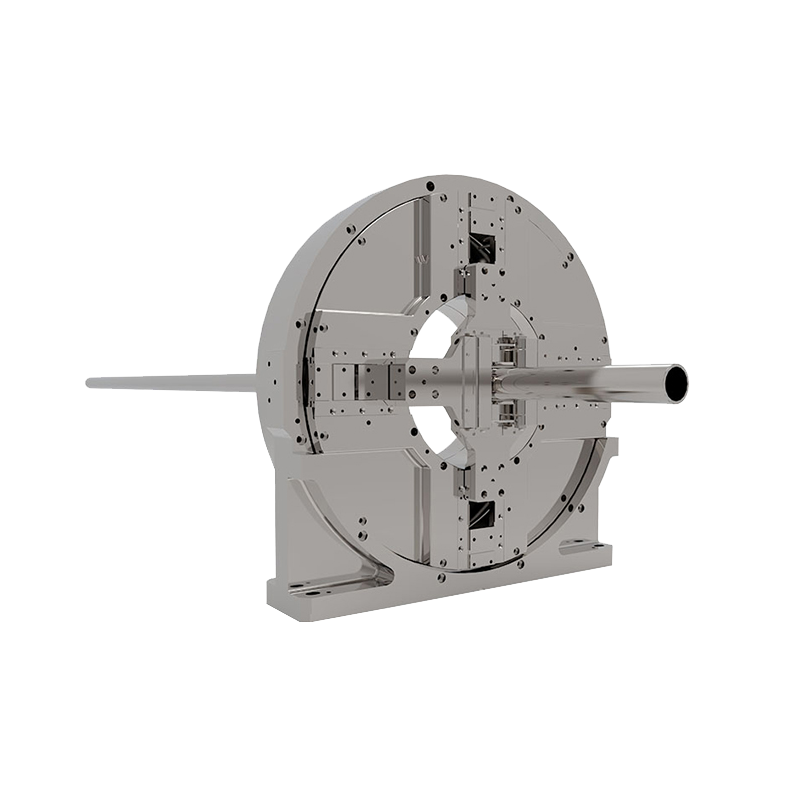

The clamp holds the profile in two directions and automatically aligns the axis of the profile. The adjustable diagonal range is 20–200 mm.

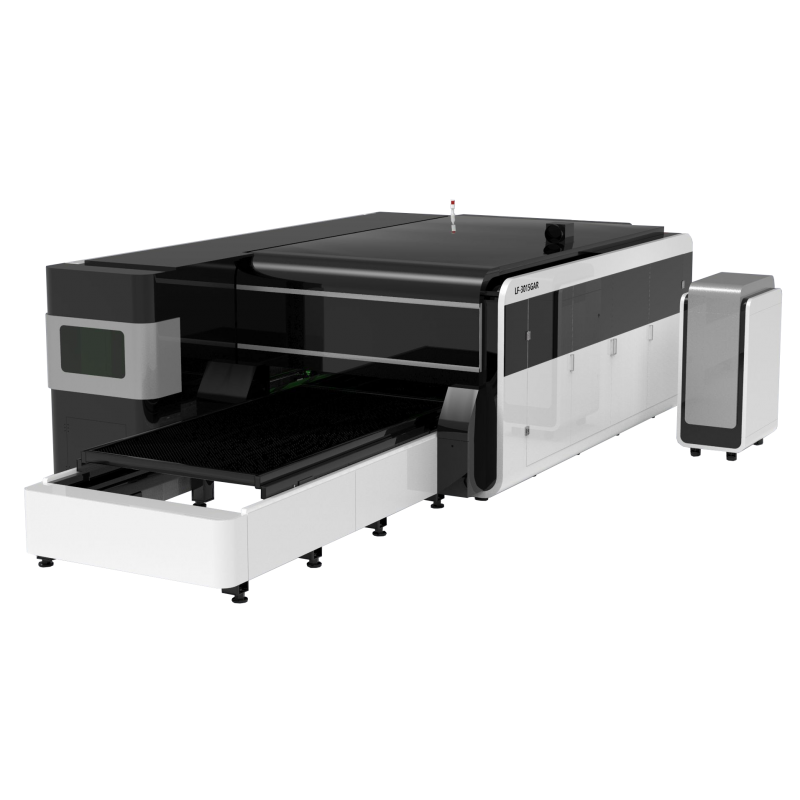

The exchangeable work table consists of upper and lower platforms, the movement and exchange of which are controlled by the system controller. The machine can complete the platform exchange in just 15 seconds.

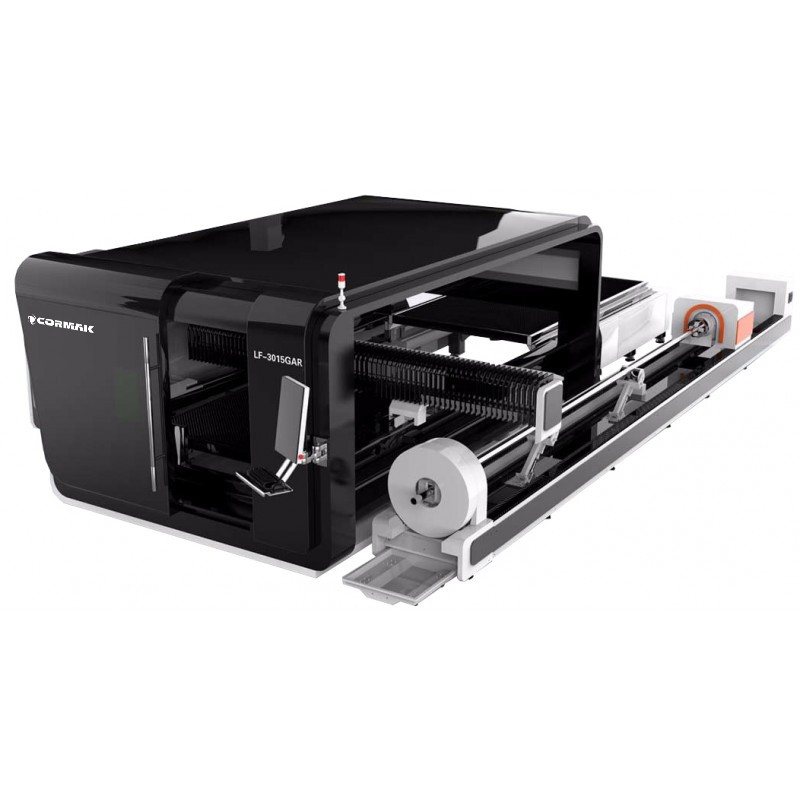

The system features an intelligent tube support assembly that helps prevent deformation during the cutting of long tubes.

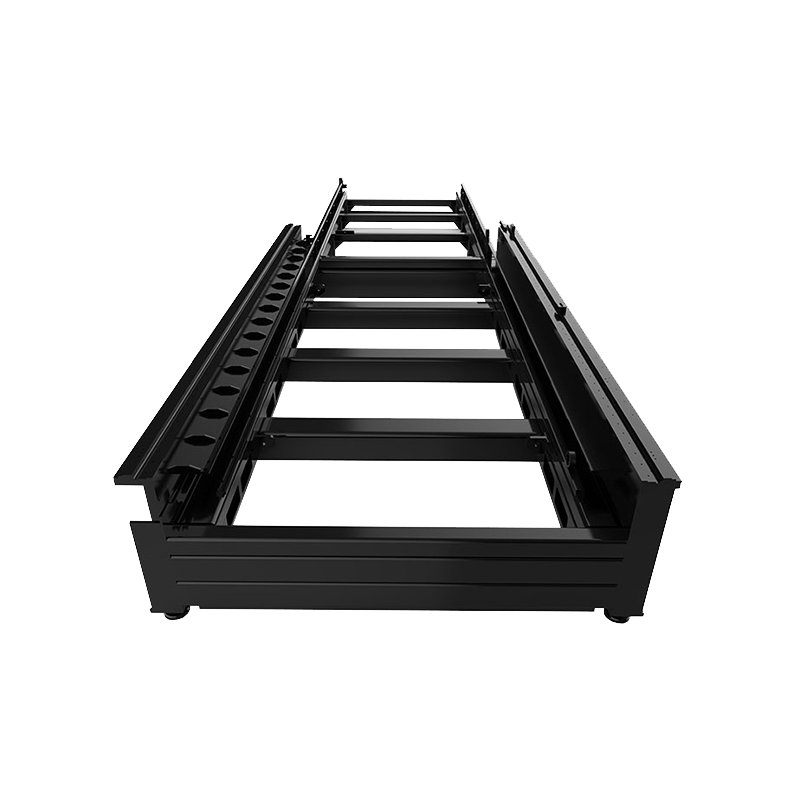

The bed structure has an internal honeycomb-like design made of multiple welded rectangular tubes. Inside the tubes, additional reinforcements are fitted to improve the frame’s strength and to increase the rigidity and stability of the guide rail, effectively preventing deformation. High strength, stability and tensile resistance guarantee 20 years of operation without distortion.
| WORKING AREA | 1500x3000 |
| POWER | 1000W 2000W 3000W 4000W 6000W 8000W 12000W |
| REPEATABLE POSITIONING ACCURACY | ±0.02 mm/m |
| MAXIMUM SPEED | 120 m/min |
| MAXIMUM ACCELERATION | 1.5 G |
| DIMENSIONS | 9500x3760x2520 mm |
| POWER SUPPLY | 400V 50Hz |
Actual parameters may vary depending on technical conditions and materials used.
