Fibre Laser Cutter CORMAK FIBER 3015P

• reliable optical fibre,
• no wearing parts,
• fibre laser source occupies about one-third less space,
• high energy efficiency – 100,000 h of operation,
• universal use (special steels, mild steel, stainless steel, copper, brass, aluminium, titanium).

Fibre laser

• increases work efficiency by 80%,
• reduces maintenance costs by 70%,
• saves 80% of energy,
• minimises gas consumption,
• saves 30% of floor space.







• Automatic focus adjustment – autofocus. The software automatically adjusts the focusing lens during the cutting of sheets with different thicknesses. The autofocus adjustment speed is ten times faster than manual adjustment.

• Extended manual adjustment range – adjustment range -10 mm to +10 mm. Accuracy of 0.01 mm allows use with materials of various thicknesses (0–20 mm) – below 1500W power.

• Long service life. The collimating and focusing lenses have a water-cooled heat sink to reduce the cutting head temperature, extending its lifespan.

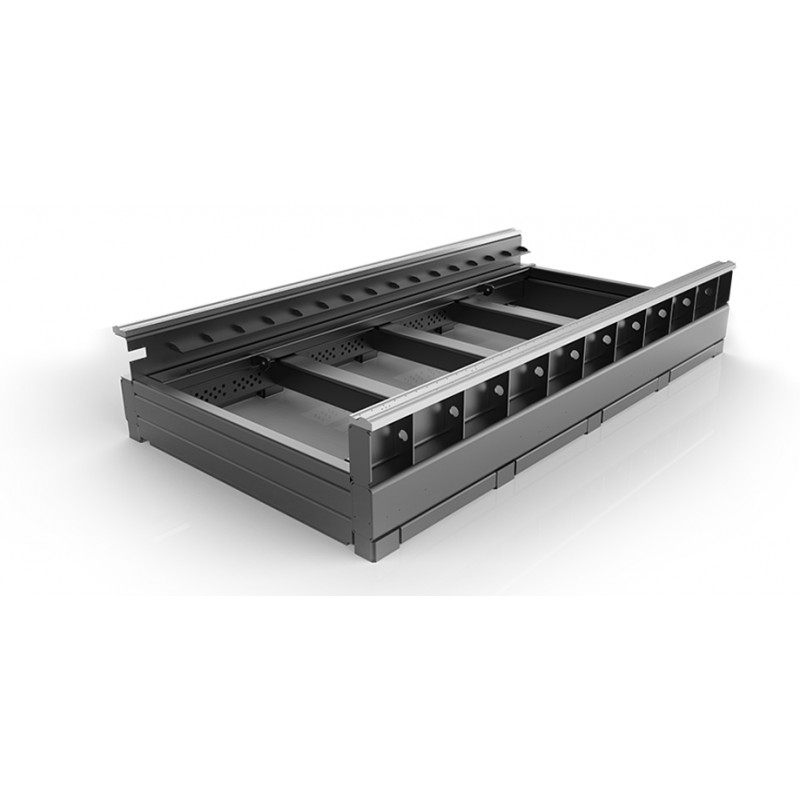

Welded bed made of rectangular profiles

The bed design has an internal honeycomb structure made of multiple welded rectangular tubes. Inside the tubes are stiffeners that increase the bed’s strength and enhance the rigidity and stability of the guide rail to prevent deformation effectively. High strength, stability, and tensile resistance guarantee 20 years of operation without deformation.

Monitoring

A high-resolution camera enables the monitoring of the cutting process without interrupting or opening the machine, significantly improving safety and work efficiency.

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Technical parameters
