The fastest FIBER laser cutter on the market enables sheet cutting with exceptional precision. The use of linear motors on all laser cutting axes ensures long-term, maintenance-free operation. These drives do not wear out and require no lubrication. Explore the wide range of FIBER laser configurations and choose parameters tailored to your business requirements.
Laser cutting machines are modern devices distinguished by numerous advantages. They are not only an excellent and far more cost-effective alternative to CO2 technology, but also offer multiple benefits that allow production to expand (up to 70%) and improve its quality. FIBER technology allows cutting sheets and other materials of varying thickness — from very thin to very thick. The wavelength in a FIBER laser is 1.064 micrometres. These properties provide intensity 100 times higher than CO2 devices of similar power.
The gantry structure is made from aged aerospace aluminium, pressed with a force of 4,300 tons to achieve exceptional rigidity. Aerospace aluminium offers numerous advantages: high stiffness (greater than cast iron), low weight, corrosion and oxidation resistance, and excellent machinability.

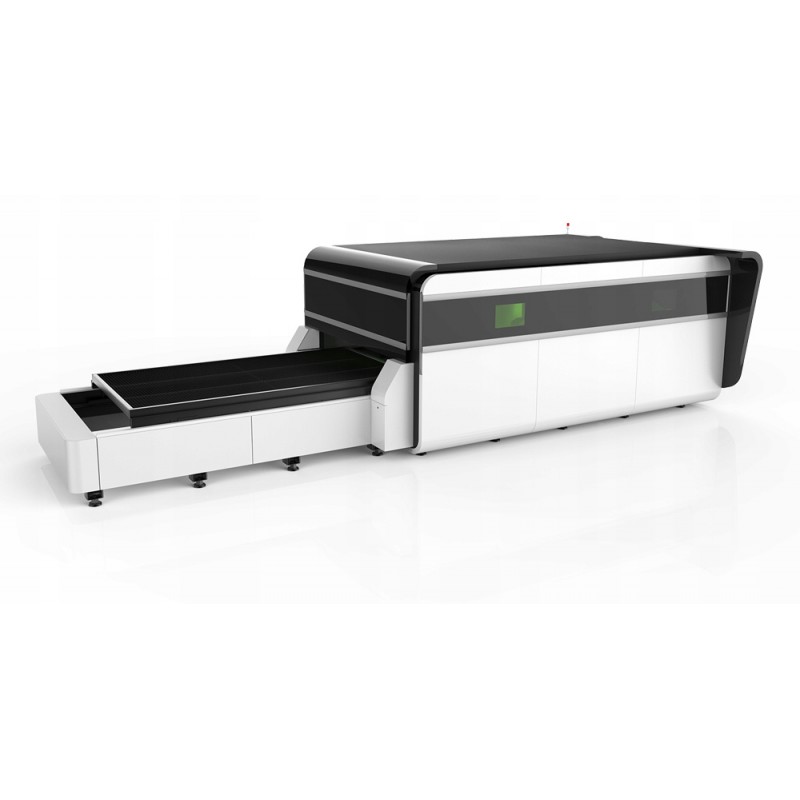

The exchangeable worktable consists of upper and lower platforms, whose movement and exchange are controlled by the controller. The machine can complete platform replacement within 15 seconds.

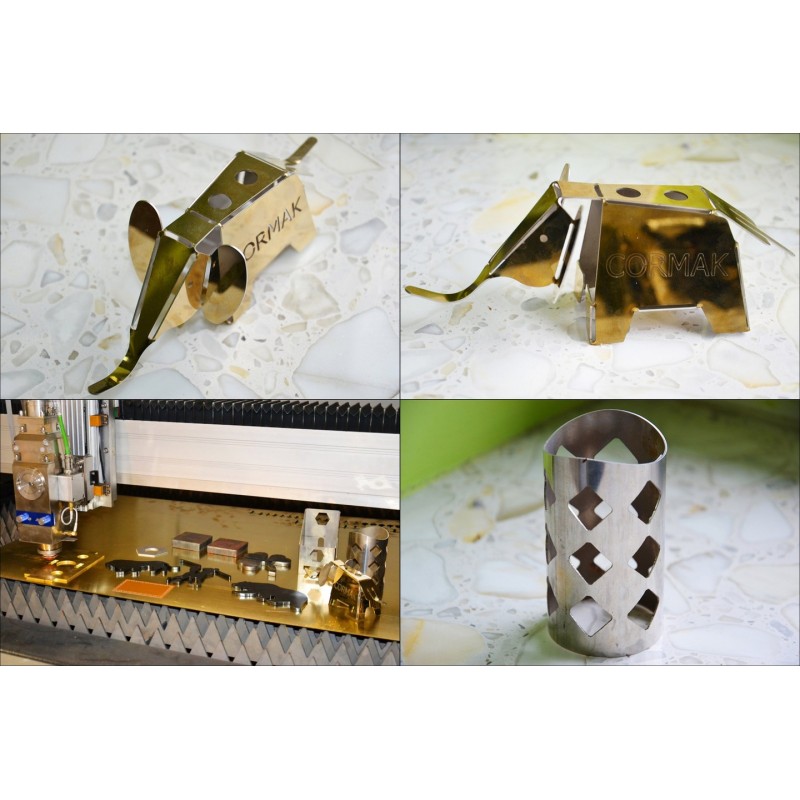

Laser cutting machines with linear drives enable fast and efficient cutting of any shapes from sheet metal. Extremely high speeds and accelerations, without limiting dynamics, combined with high-resolution measurement systems, allow for exceptional cutting efficiency and precision.
A linear motor is an electric motor that directly converts electrical energy into linear mechanical motion. The key advantages of linear motor technology are reduced friction, zero backlash, no gear-driven losses, and precise positioning. The most significant performance feature of linear motors is their ability to achieve very high dynamics.
Installation of linear motors on all axes ensures stable performance throughout the machine’s entire lifetime. These drives are wear-free and maintenance-free — completely reliable.
The frame structure features an internal honeycomb design made of multiple welded rectangular tubes. Reinforcements inside the tubes increase frame strength, stiffness, and guide rail stability, effectively preventing deformation. High strength, stability, and tensile resistance ensure up to 20 years of operation without deformation.
| WORKING AREA | 1500×3000 / 2000×4000mm |
| POWER | 1000W / 2000W / 3000W / 4000W / 6000W / 8000W |
| REPEATABLE POSITIONING ACCURACY | ±0.02mm/m |
| MAXIMUM SPEED | 170m/min |
| MAXIMUM ACCELERATION | 3.0G |
| DIMENSIONS | 8850×2850×2310 / 10800×3350×2310mm |
| POWER SUPPLY | 400V 50Hz |
Actual parameters may vary depending on technical conditions and materials used.
▶
▶
▶
▶
▶
▶
▶
▶
▶
