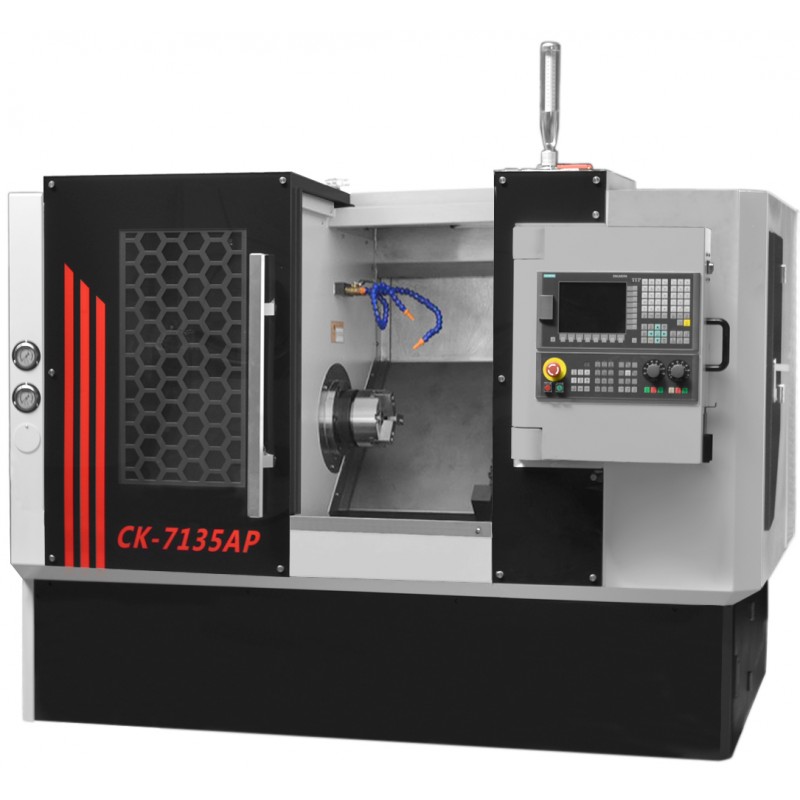

The CNC Lathe CK7135AP is an advanced device for precise metal machining, offering exceptional positioning repeatability of 0.006 mm thanks to its slant bed and innovative structural solutions. Standard equipment includes intuitive SINUMERIK 808D control, SIEMENS servo drives and practical elements such as a hydraulic 3-jaw chuck, serial tool post, a complete set of soft jaws, HIWIN linear guides, telescopic guideway covers, cooling system, automatic lubrication and 24V halogen lighting. The use of a serial tool post reduces machining time by 25%, making this lathe a highly precise metalworking tool.
The CNC Lathe CK7135PA with a slant bed is an advanced tool that guarantees extremely precise machining and high positioning repeatability on the X/Z axes at the level of 0.006 mm, which represents a significant improvement compared with conventional CNC lathes achieving 0.01 mm. These impressive results are the outcome of factory-installed ball bearings and innovative construction solutions in this machine.

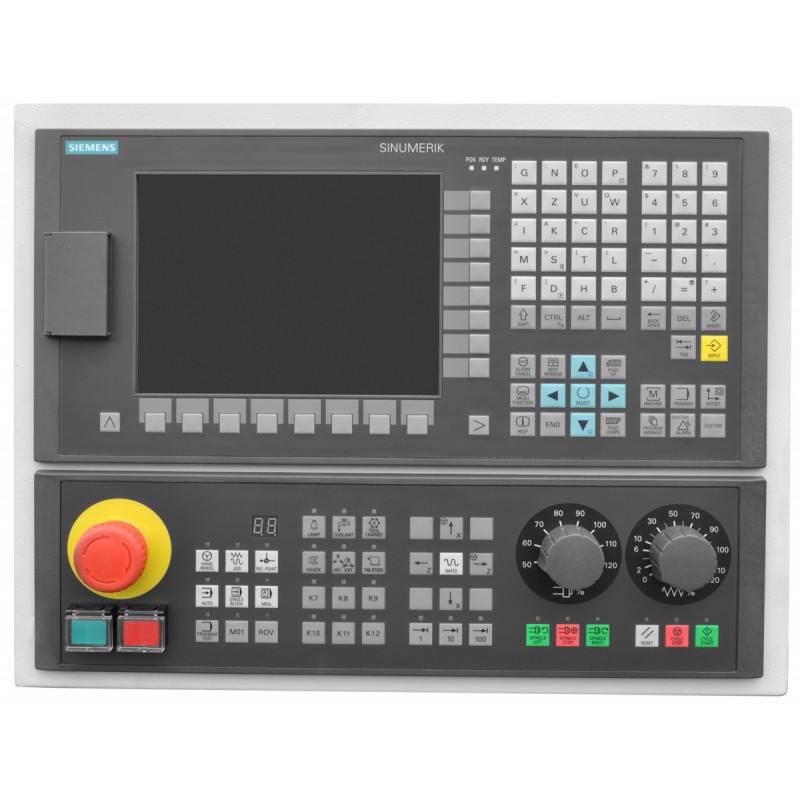

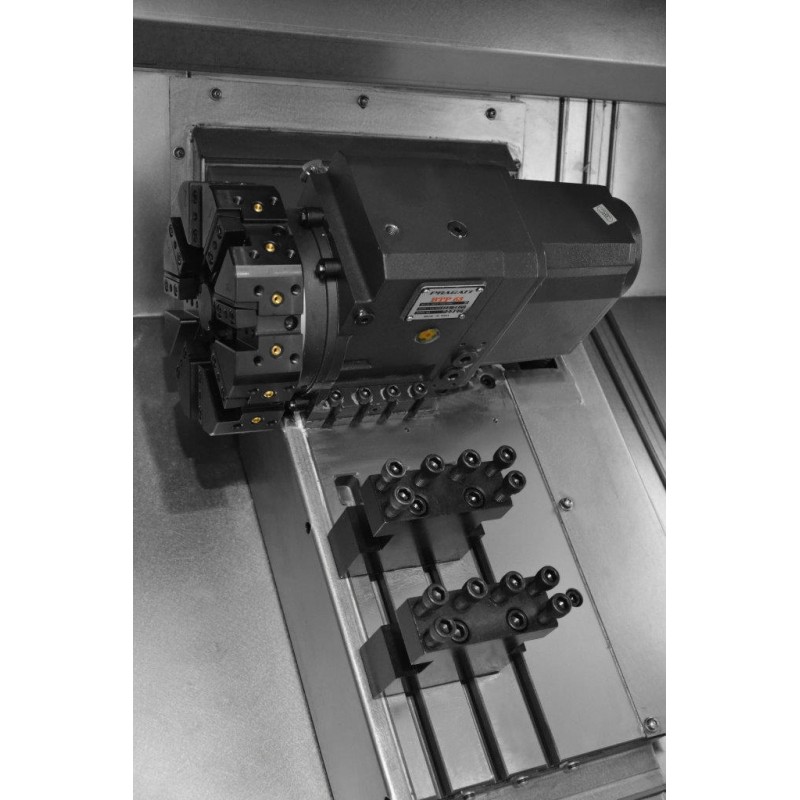

The standard equipment of the lathe includes a serial tool post that eliminates the need for retracting to a safe position and reduces machining time by up to 25%. This is a significant convenience that improves the machine's working efficiency. Additionally, the machine is equipped with SINUMERIK 808D control, which simplifies operation and programming.
SIEMENS servo drives used in the lathe ensure smooth and precise tool movements, while the hydraulic 3-jaw chuck enables secure clamping of the workpiece. A complete set of soft jaws increases flexibility and enables the lathe to be adapted to various materials.
Furthermore, the lathe is equipped with HIWIN linear guides, ensuring stability of movement and machining precision. Telescopic guide covers protect against contamination, contributing to the machine's longevity. The cooling system maintains optimal temperature of tools and workpieces, and the automatic lubrication system for gears and guides minimises maintenance requirements.
An additional advantage is the 24V halogen lighting, improving visibility of the working area, which is essential for precise machining of components. The CNC Lathe CK7135AP is a comprehensive solution meeting high standards of precision, efficiency and reliability in metalworking.
| MAX TURNING DIAMETER | 350 mm |
| MAX TURNING DIAMETER OVER CARRIAGE | 130 mm |
| CENTRE DISTANCE | 300 mm |
| SPINDLE BORE | 46 mm |
| SPINDLE SPEED | 200–3000 rpm |
| MAIN MOTOR POWER | 5.5 kW |
| BED TYPE / GUIDEWAY TYPE | 45° slant / linear |
| MAX BAR DIAMETER THROUGH SPINDLE | 49 mm |
| TRAVEL X/Z | 200/400 mm |
| CHUCK TYPE | rotary chuck |
| NUMBER OF TOOLS | 10 (option 12, 16) |
| TOOLHOLDER SIZE | 20×20 mm |
| TAILSTOCK TYPE | none |
| CHUCK | hydraulic |
| DIMENSIONS | 2500×1340×1710 mm |
| WEIGHT | 2500 kg |
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
We offer professional CNC controls from the renowned brands Siemens and Fanuc, which ensure precision, performance and ease of operation. Our solutions are ideal for both smaller workshops and demanding industrial applications.
Siemens Sinumerik 808D is a modern, economical CNC control designed for entry-level lathes and milling machines. The system has been developed with small and medium-sized enterprises in mind, offering:
Sinumerik 828D is a professional CNC control system designed for milling machines and lathes requiring higher precision and performance. Its key advantages include:
An excellent choice for companies looking for efficient and reliable CNC control for more complex machining operations.
Fanuc Oi-TF is one of the most popular CNC control systems for lathes, known for its reliability and ease of use. It is widely employed in the metalworking industry thanks to:
With Fanuc Oi-TF, users gain confidence in stable and precise operation, translating into greater productivity and machining quality.
Choosing the right CNC control is essential for efficiency and precision. Siemens Sinumerik 808D is ideal for basic applications, Siemens Sinumerik 828D suits more demanding production processes, while Fanuc Oi-TF guarantees maximum stability and reliability in turning operations.
Contact us – we will help you select the CNC control best suited to your needs!
