The industrial high-performance lathe CK7150x1000 features a compact and ergonomic design, convenient for operation and maintenance, with a wide processing capacity. Suitable for machining non-ferrous, ferrous and non-metal materials, this lathe performs cylindrical, conical and face turning, boring, grooving, threading and spherical turning. It can therefore be widely used in mechanical, automotive, combustion device, light industry and electrical component production — for both mass and single-piece manufacturing.

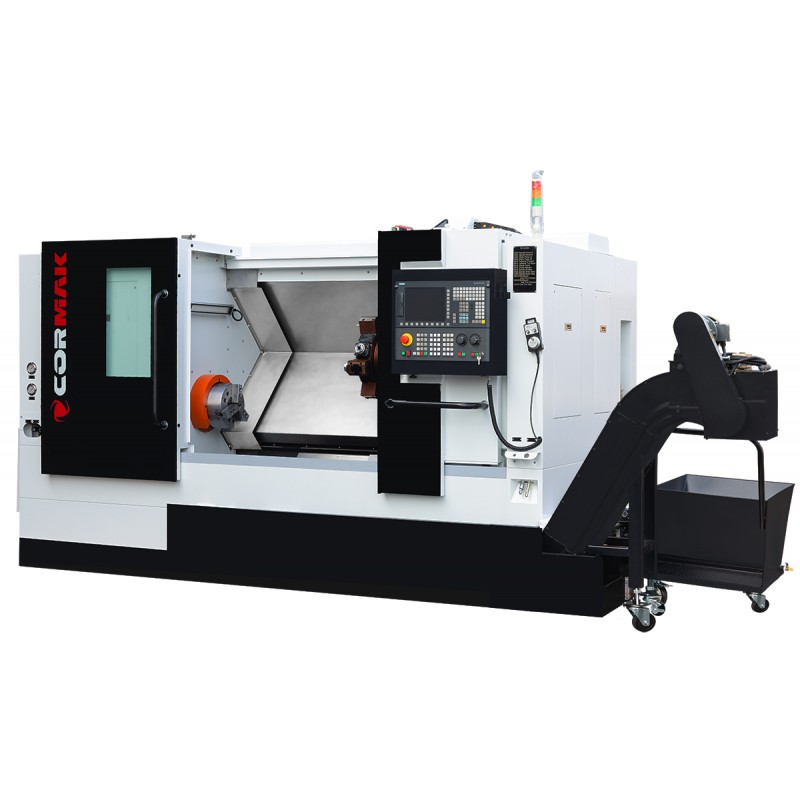

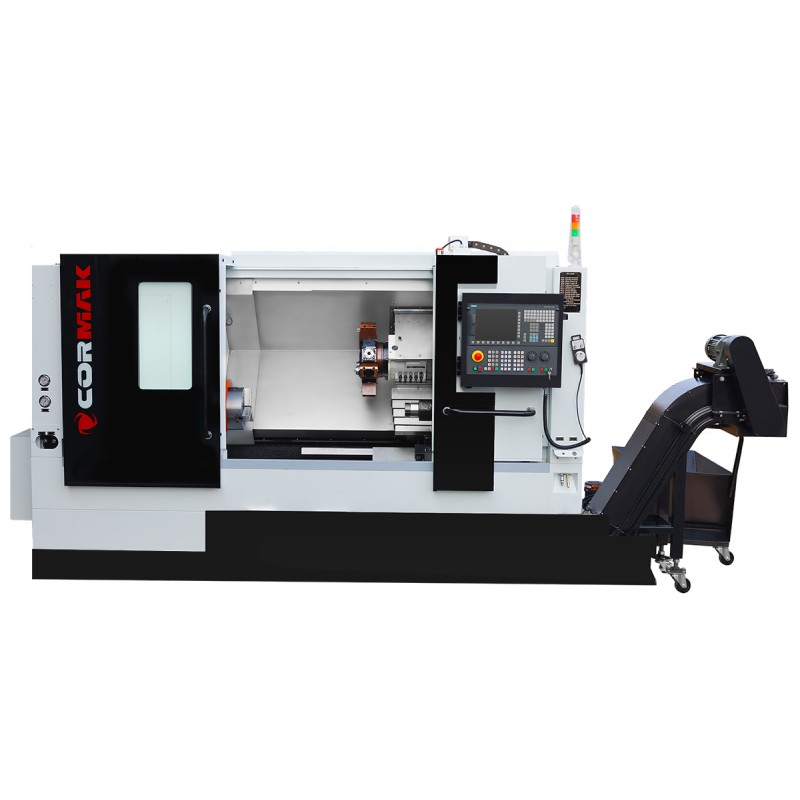

The CNC Lathe CORMAK CK7150x1000 with Slant Bed is an advanced numerical control machine designed for precise metalworking in demanding industrial environments. Equipped with a modern CNC control system and robust construction, it ensures reliability and high productivity in both series and unit production.
The CNC Lathe CORMAK CK7150x1000 offers an excellent combination of modern technology, solid construction and versatility. With its precision and high-quality components, the machine meets the expectations of the most demanding users in the metalworking industry. Key benefits include:
The CNC Metal Lathe CORMAK CK7150x1000 has been designed for durability and precision. Its structure is based on the latest technological solutions, ensuring reliability under demanding industrial conditions.

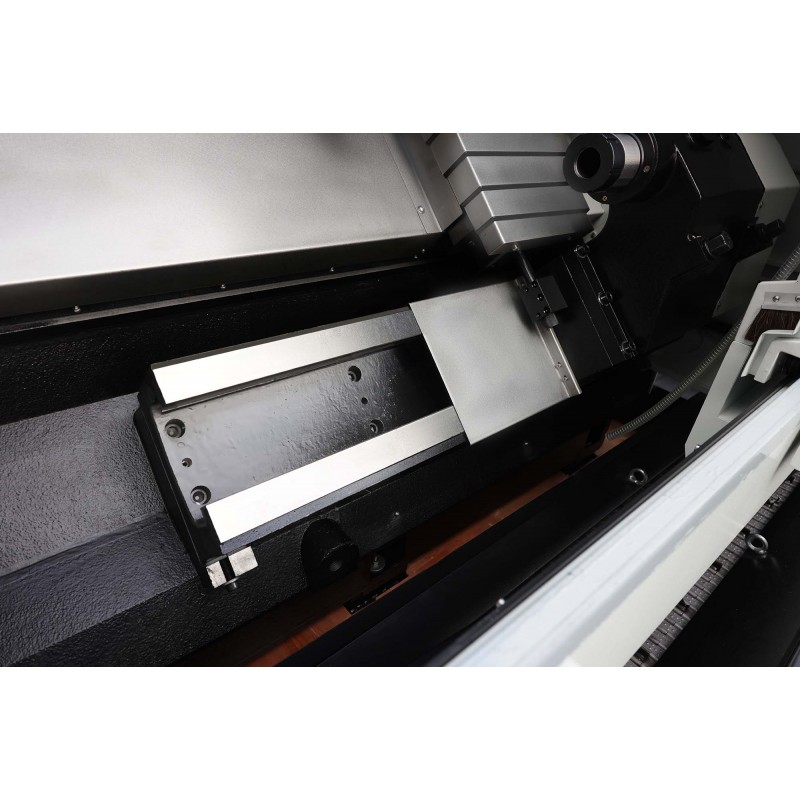

The slanted bed provides excellent rigidity, reducing vibration during cutting. This ensures high precision even during heavy-duty machining.
The spindle with a 52 mm bore and 11 kW motor enables efficient machining of various shapes and materials such as steel, aluminium and alloys.

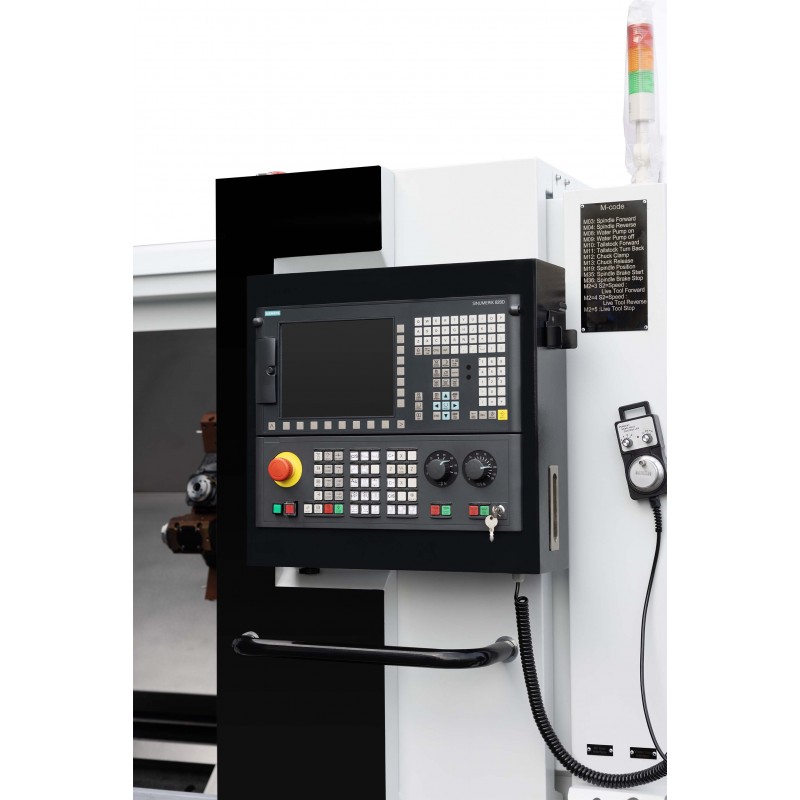

The machine is equipped with a modern Siemens Sinumerik 808D control system featuring an intuitive interface and full compatibility with CAD/CAM software.
The integrated cooling and automatic lubrication systems for the gearbox and guideways ensure smooth operation and reduce wear, extending the life of the components.
The industrial CNC lathe CORMAK CK7150x1000 guarantees exceptional precision, with an X/Z axis positioning accuracy of 0.001 mm. Advanced Siemens servo drives and a hydraulic 3-jaw chuck ensure machining stability and repeatability. The high spindle speed of up to 3000 rpm and optional driven tools allow complex operations such as threading, grooving, and drilling to be performed in a single setup.
CNC metal lathes such as the CK7150x1000 are used across various industrial sectors, including:
This machine is dedicated to production plants requiring reliable equipment for precise metal machining.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.
| Max turning diameter over bed | 500 mm |
| Max turning diameter over carriage | 290 mm |
| Max workpiece length | 1000 mm |
| Travel (X / Z axis) | 800 / 210 mm |
| Spindle bore | 52 mm |
| Spindle speed | 3000 rpm |
| Chuck size | 210 mm |
| Spindle motor power | 11 kW |
| Positioning accuracy (X / Z) | 0.001 mm |
| Tool size | 25×25 mm |

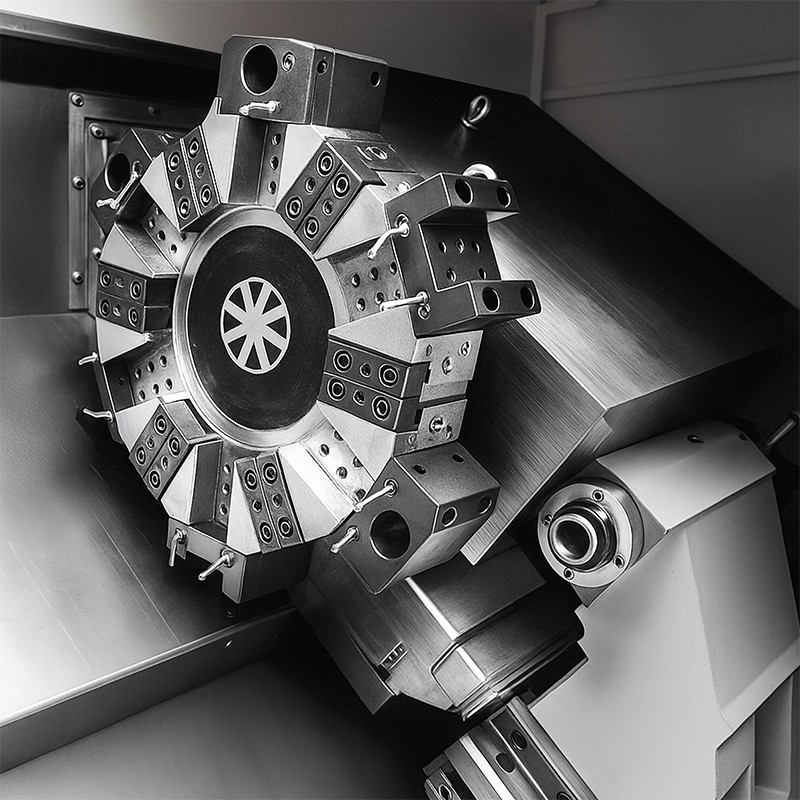

| Number of tools | 12 |
| Tailstock sleeve diameter | 88 mm |
| Tailstock sleeve travel | 85 mm |
| Taper of tailstock | MT5 |
| Overall dimensions (L×W×H) | 3700×1800×2100 mm |
| Weight | 4800 kg |
We offer professional CNC control systems from renowned manufacturers Siemens and Fanuc, ensuring precision, performance and ease of operation. Our solutions are ideal for both smaller workshops and demanding industrial applications.
Siemens Sinumerik 808D is a modern, cost-effective CNC control designed for entry-level lathes and milling machines. Developed for small and medium-sized enterprises, it offers:
Sinumerik 828D is a professional CNC control system designed for machines requiring greater precision and productivity. Its key features include:
It is an excellent choice for companies seeking efficient, precise and reliable CNC control for complex machining operations.
Fanuc Oi-TF is one of the most popular CNC systems for lathes, valued for its exceptional reliability and user-friendly operation. Widely used in the metalworking industry, it offers:
With Fanuc Oi-TF, operators gain reliability, precision and higher production efficiency.
With over 20 years of experience in supplying industrial machinery, CORMAK guarantees reliability, professionalism and comprehensive technical support. Our CNC metal lathes are chosen by professionals across Europe thanks to:
Invest in the CNC Lathe CORMAK CK7150x1000 to enhance the precision and efficiency of your production. Contact us today for detailed information and a tailored quotation – our specialists will help you choose the best solution for your business.
