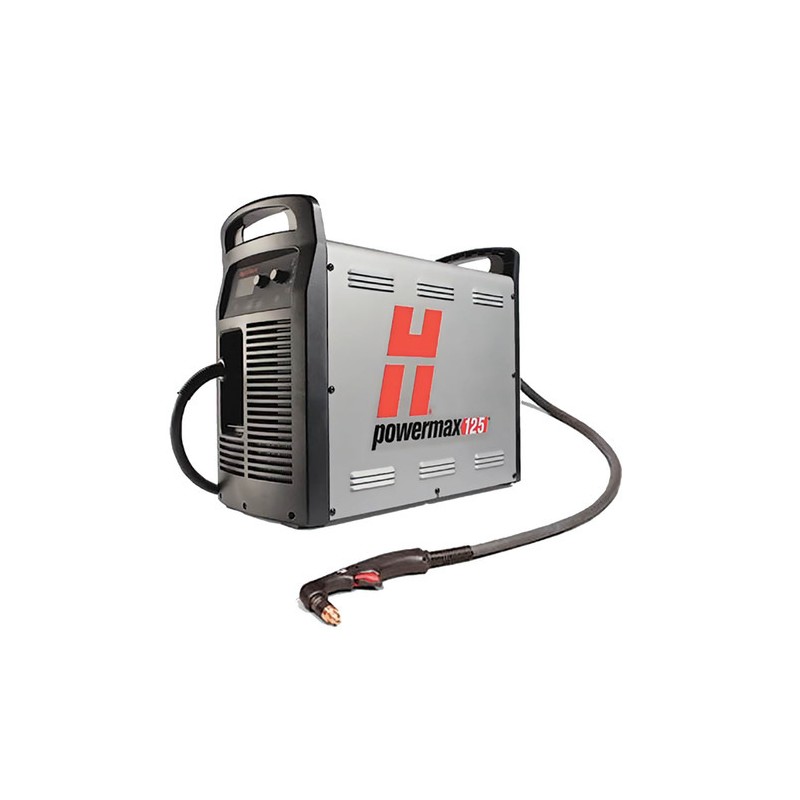

POWERMAX 125 plasma cutting system is a professional plasma cutting system designed for CNC cutting machines and demanding industrial applications. It provides high power, precise cutting and reliable operation when processing mild steel, stainless steel and aluminium.
Maximum productivity
• With cutting speeds up to 5 times faster, 12mm mild steel cutting jobs are completed in less time than with oxy-fuel systems.
• Outstanding cutting and gouging quality means less time spent on grinding and edge preparation.
• Maximise cutting time with a 100% duty cycle.
Low operating costs
• Reduce costs by using consumables with four times the service life of those used in other systems with similar power.
• Electrode wear detection technology protects the torch and workpiece from damage by automatically shutting off power in the event of excessive electrode wear.
Easy operation during cutting and gouging
• No need to adjust air pressure. Smart Sense™ technology ensures the correct setting is selected.
• Carry out a wide range of tasks using multiple easy-to-use torches.
Manufactured and tested to withstand the toughest working conditions
• Duramax™ Hyamp torches are designed for high power and heat resistance.
• SpringStart™ technology ensures consistent starting conditions and improves torch durability.
• Low maintenance requirements and maximum operating time.
| Technical specifications | |
| Input voltage | 400V, 3-phase, 50/60Hz |
| Input current at 21.9kW | 400V, 3-phase, 36A |
| Output current | 30–125A |
| Rated output voltage | 175V DC |
| Duty cycle at 40°C | 100% at 125A, 400V, 3-phase |
| Open-circuit voltage (OCV) | 305V DC |
| Dimensions with handles | 592 x 274 x 508mm (L x W x H) |
| Weight with 7.6m torch | 48.9kg |
| Gas supply | Clean, dry, oil-free air or nitrogen |
| Recommended inlet gas flow rate / pressure |
Cutting: 260L/min at 5.9bar Gouging: 212L/min at 4.1bar |
| Input power cable length | 3m |
| Power supply type | Inverter — IGBT (insulated-gate bipolar transistor) |
| Required drive power rating | 40kW at full 125A current |
| Standards compliance | CE, C-Tick, CU/GOST, Ukrainian and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia and Ukraine, as well as in other approved countries. |
