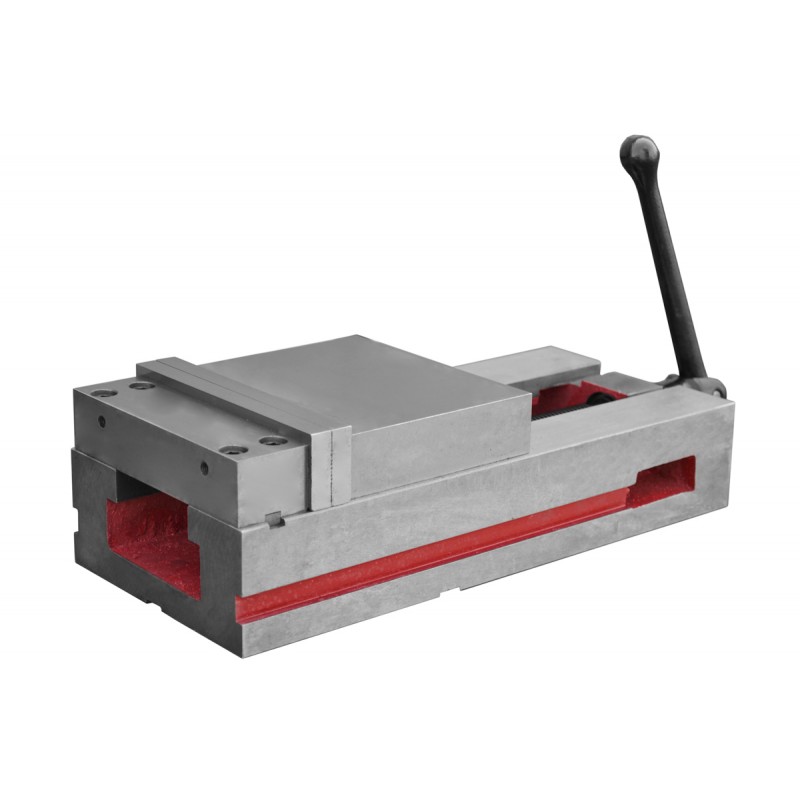

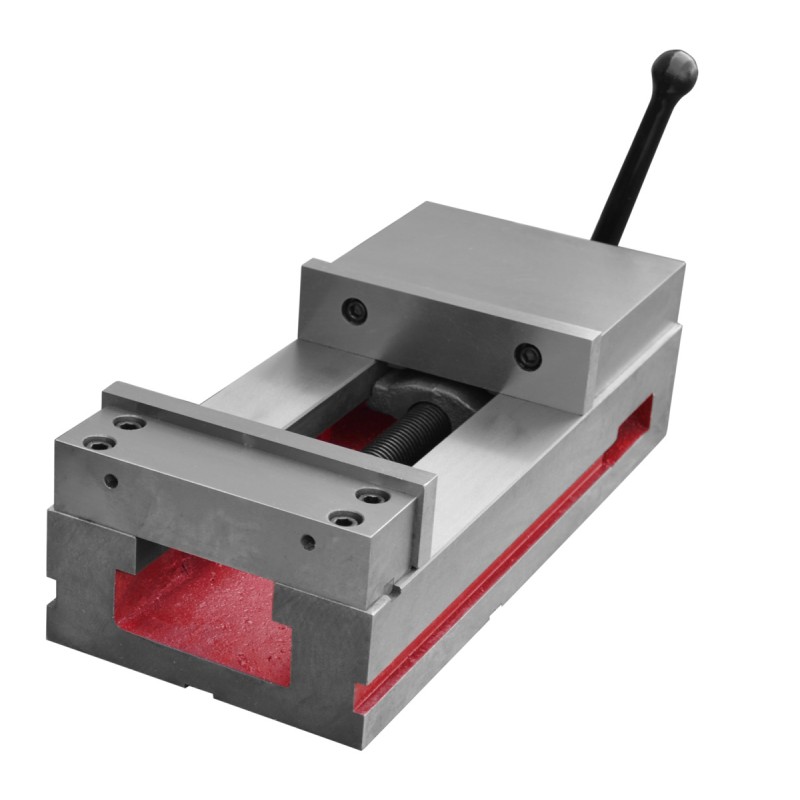

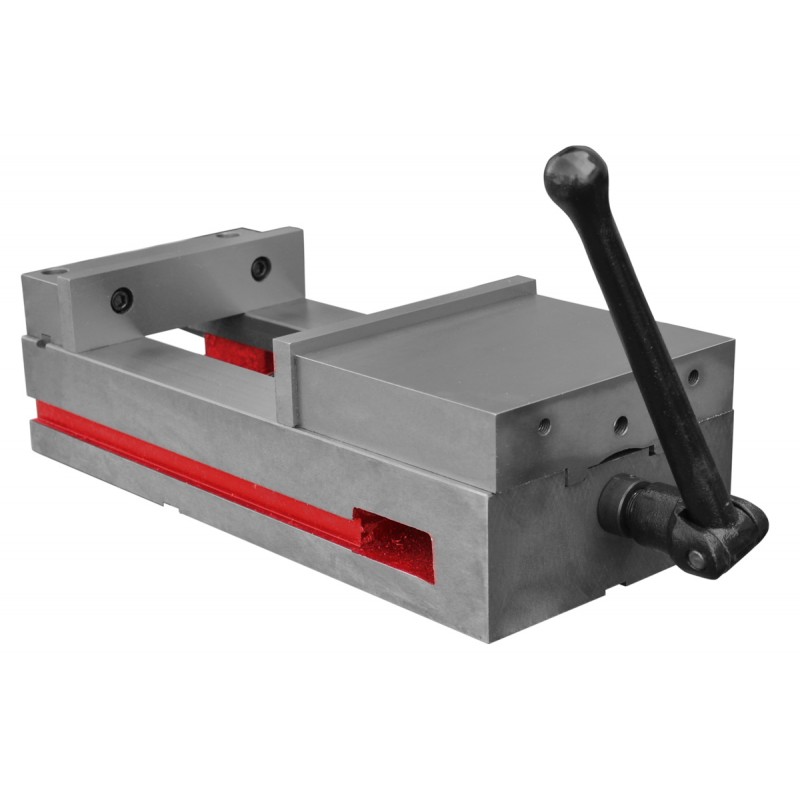

Machine vices of the QM series are professional clamping tools designed for the highest demands in mechanical machining. The QM16200N model is a precision machine vice with a jaw width of 200 mm, which, thanks to its solid construction and manufacturing accuracy, is perfectly suited for work on milling machines, CNC machine tools and machining centres. A key advantage is the ability to work in a multi-vice system, significantly increasing production flexibility.
Machine vices of the QM series are professional clamping tools designed for the highest demands in mechanical machining. The QM16200N model is a precision machine vice with a jaw width of 200 mm, which, thanks to its solid construction and manufacturing accuracy, is perfectly suited for work on milling machines, CNC machine tools and machining centres. A key advantage is the ability to work in a multi-vice system, significantly increasing production flexibility.
The QM16200N model has been designed for intensive industrial use. Solid components and refined geometry guarantee operational repeatability and long-term stability. The cast-iron base eliminates vibrations, while hardened steel jaws ensure long-lasting durability. High manufacturing quality and adjustable jaw inserts allow work with workpieces of different sizes and shapes.
The QM16200N vice provides very high clamping force while maintaining maximum positioning precision. The well-thought-out design and high-quality materials ensure stable and accurate machining, eliminating micro-movements that could affect dimensional accuracy.
The QM16200N machine vice is used in:
| JAW WIDTH | 200 mm |
| JAW HEIGHT | 50 mm |
| JAW OPENING L1 MAX | 190 mm |
| JAW OPENING L2 MAX | 275 mm |
| JAW OPENING L3 MAX | 385 mm |
| JAW OPENING L4 MAX | 470 mm |
| CROSS KEY WIDTH | 18 mm |
| LONGITUDINAL KEY WIDTH | 18 mm |
| HEXAGONAL DRIVE SHAFT HEAD | 19 mm |
| DIMENSIONS | 517×200×135 mm |
| WEIGHT | 47 kg |
