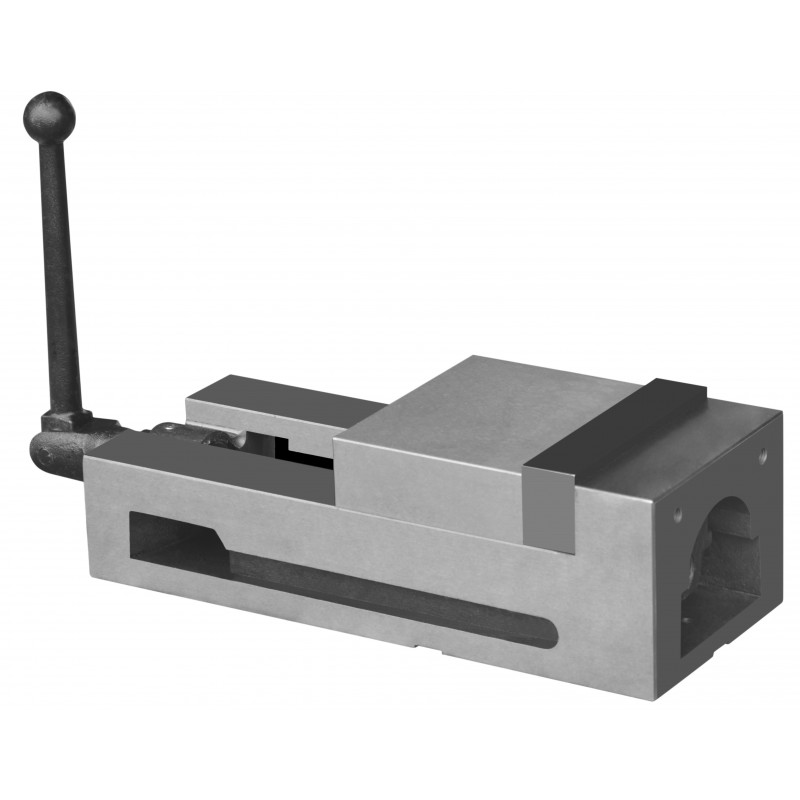

Precision Machine Vice 160 mm QM16160N

Precision Machine Vice 160 mm QM16160N – clamping accuracy for demanding applications

The precision machine vice QM16160N with a jaw width of 160 mm is a solid and reliable solution for professional workpiece clamping in metal cutting operations. Thanks to its high manufacturing precision and optimised design, the vice ensures repeatability, stability and high clamping force – regardless of the type of machine you work with.

Main features of the vice

• High-quality materials – base made of cast iron with hardness approx. 40 HRC, jaws made of hardened steel 48–52 HRC
• Rigid construction – possibility of side mounting and combining with other vices
• Very low flatness deviation – ±0.015 mm allows the creation of precise multi-vice setups
• High clamping force – up to 2500 kg ensuring reliable holding of the workpiece
• Multi-position jaw inserts – for flexible adaptation to various workpieces

Design and technology

The QM16160N vice has been designed for intensive industrial use. The design of the movable jaw allows the workpiece to be pressed down towards the base during clamping, eliminating the risk of lifting. The jaws are reversible, which significantly extends the range of applications and enables clamping of non-standard shaped components.

Precision and performance

The base height deviation of only ±0.015 mm ensures perfect levelling and repeatability in multi-vice systems. Due to its high level of accuracy, the QM16160N vice is ideal for machining processes requiring dimensional precision and repeatability.

Applications

• manual and CNC milling machines
• vertical and horizontal machining centres
• numerically controlled machine tools
• worktables with multi-position clamping systems
• workshop and production tasks requiring high clamping force

Standard equipment

• fixed and movable jaws with reversible inserts
• lead screw with hexagonal head
• mounting system for the machine table

Technical parameters QM16160N

Jaw opening

Order the QM16160N vice – professional solution for precision machining

If you need a machine vice that ensures maximum stability and repeatability, choose the QM16160N model. It is the perfect choice for milling machines, CNC machining centres and drilling machines. Order now and increase the efficiency of your workshop with reliable CORMAK quality.
