CNC Lathe CKT 320x1000 – Precision and Performance in Metalworking
CNC Lathe CKT 320x1000 is an advanced numerical lathe designed for precise machining of metal parts in medium and large manufacturing plants. Equipped with Siemens Sinumerik 808D control, it offers reliability and operational flexibility.
Main advantages of the CNC Lathe CKT 320x1000
CNC metal lathe CKT 320x1000 is a professional industrial solution that combines modern technology with a solid construction, ideal for facilities requiring precise cutting operations. As an advanced industrial lathe, it performs complex operations such as turning, threading, grooving, and drilling while maintaining the highest quality standards. Its key advantages include:
- High machining accuracy: Maximum turning diameter over the bed 320 mm and over the carriage 90 mm (option 135 mm), spindle bore 60 mm and maximum bar diameter 44 mm guarantee precision for a wide range of applications.
- Versatile spindle: Speed range 100–2500 rpm with MK5 taper enables machining of a variety of materials from steel to light alloys.
- Advanced control: The Siemens Sinumerik 808D system, supported by Siemens servo drives, optimises programming and increases productivity.
- Rigid structure: Net weight of 1080 kg (gross 1200 kg) and dimensions 2370x1420x2000 mm ensure stability when machining parts up to 1000 mm in length.
- Tool efficiency: 6-position turret head (option 4 or 8) with 16x16 mm tools speeds up tool changes and reduces production cycle time.
- Durability: Automatic lubrication of gears and guides reduces wear and extends service life.
- Efficient cooling: The cooling system ensures thermal stability, protecting tools and workpieces during intensive machining.
- Wide industrial applications: Ideal for precision turning in mechanical, automotive, and toolmaking industries.
- Energy efficiency: The 5.1 kW (S1) / 3.7 kW motor combines high performance with low power consumption.
- Customisation options: A wide range of options, including Fanuc Oi-TF control, hydraulic chuck, or CAD/CAM software, allows machine adaptation to specific requirements.
Construction and technology of the CNC Lathe CKT 320x1000
Industrial CNC lathe CKT 320x1000 is designed for reliability and precision in demanding production environments. The key structural features include:
- Rigid bed design: A robust structure with a net weight of 1080 kg minimises vibration and ensures stability during operation.
- High-performance spindle: Bore 60 mm, bar capacity 44 mm, MK5 taper, and speed range 100–2500 rpm allow machining of diverse components.
- Turret head: 6-position (option 4 or 8) with 16x16 mm tools enables quick tool change and process flexibility.
- Manual tailstock: MT3 taper with 100 mm travel supports precise workpiece positioning.
- Siemens servo drives: Ensure smooth movement and high positioning accuracy.
- Automatic lubrication system: Central lubrication of gears and guides reduces component wear.
- Cooling system: Maintains optimum temperature, improving tool life and machining quality.
- 24V halogen lighting: Ensures perfect visibility and safe operation.
Precision and productivity
Numerical lathe CKT 320x1000 provides high accuracy through Siemens Sinumerik 808D control and Siemens servo drives. The system optimises toolpaths for precise machining of workpieces up to 320 mm in diameter and 1000 mm in length. Quick tool change and advanced cycles shorten production time and boost efficiency.
Applications of the CNC Lathe CKT 320x1000
CNC metal lathes such as the CKT 320x1000 are widely used across industries including:
- Mechanical engineering: Production of shafts, bushings, flanges, and precision components.
- Automotive industry: Machining of engine, gearbox, and suspension components.
- Toolmaking: Production of threads, grooves, and complex-shaped details.
- Batch and prototype production: Ideal for medium-series manufacturing and R&D prototyping.
This machine is a perfect choice for manufacturers seeking a versatile and reliable CNC lathe.
Standard equipment
- SIEMENS SINUMERIK 808 Advanced control
- Siemens servo drives
- Manual 3-jaw lathe chuck
- 6-position turret head
- Set of soft jaws
- Manual tailstock with MT3 taper
- Cooling system
- Automatic lubrication for gears and guides
- 24V halogen lighting
- User manual
- CE declaration
Optional equipment*
- Siemens Sinumerik 828D, Fanuc Oi-TF or GSK controls
- Hydraulic chuck
- Hydraulic tailstock
- Travelling steady rest
- Fixed steady rest
- Tool probe
- Additional soft or hard jaws
- Collet chucks
- Parts catcher
- Bar feeder
- Cabin mist separator
- Coolant oil separator
- Tool holders
- CAD/CAM software
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.
Technical parameters
| Technical parameters |
| Turning diameter over bed |
320 mm |
| Turning diameter over carriage |
90 mm (option 135 mm) |
| Centre distance |
1000 mm |
| Spindle speed |
100–2500 rpm |
| Spindle bore |
60 mm |
| Spindle taper |
MK5 |
| Number of tools |
4 (option 6, 8) |
| Tool size |
16x16 mm |
| Max. bar capacity |
44 mm |
| Tailstock taper |
MT3 |
| Max. tailstock travel |
100 mm |
| Main motor power |
5.1 kW (S1) / 3.7 kW |
| Dimensions |
2370x1420x2000 mm |
| Net/Gross weight |
1080/1200 kg |
CNC control systems – Siemens and Fanuc
CNC Lathe CKT 320x1000 is available with advanced CNC systems such as SIEMENS SINUMERIK 808 Advanced, Siemens Sinumerik 828D, and Fanuc Oi-TF, ensuring precision, reliability and ease of use:

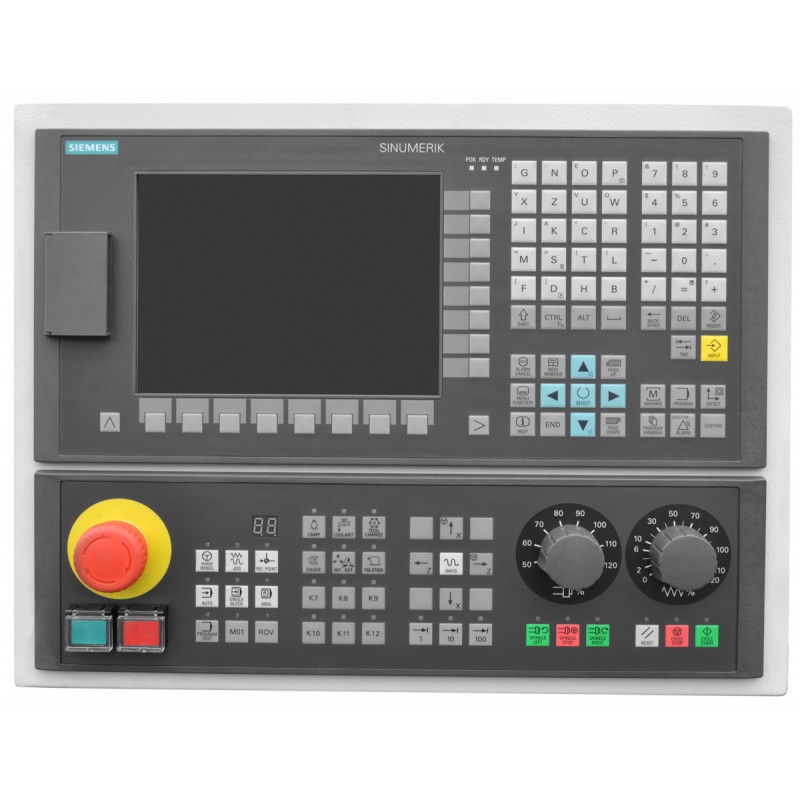

SIEMENS SINUMERIK 808 Advanced
- Intuitive interface: Simple to use, ideal for small workshops and beginners.
- Reliability: Durable construction resistant to industrial environments.
- Cost-effectiveness: Designed for basic turning and milling applications.
Siemens Sinumerik 828D
- High computing power: Enables dynamic machining and complex cycles.
- CAD/CAM integration: Simplifies connection with design software.
- Advanced functions: Toolpath optimisation and expandability with additional modules.
Fanuc Oi-TF
- Stability: Reliable for serial and long-term production.
- Advanced turning cycles: Perfect for precise operations like threading and grooving.
- Intuitive operation: Clear interface for faster programming.
User manuals
SIEMENS SINUMERIK 828/840
Download manual
SIEMENS SINUMERIK 808
Download manual
Trust CORMAK’s experience
With over 20 years of experience in supplying industrial machinery, CORMAK provides reliable CNC metal lathes and comprehensive technical support. Our machines comply with European safety standards, and our professional warranty and post-warranty service ensure continuous production.
- 16 years of experience in Siemens CNC control service.
- 15,000 m² warehouse with around 12,000 machines in stock.
- Professional warranty service ensuring reliability and uptime.
- All machines are CE certified and meet European standards.
Request details today! Contact us
▶
