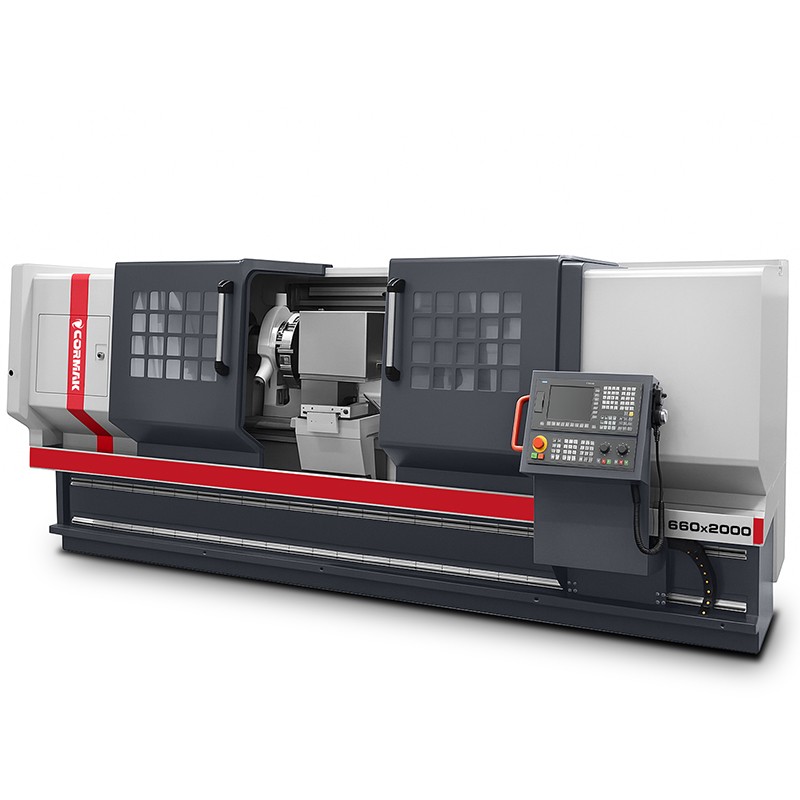

CNC Lathe 660x2000 – Precision and Efficiency in Metalworking
CNC Lathe 660x2000 is an advanced numerically controlled lathe designed for precise machining of metal components in demanding industrial environments. Equipped with Siemens Sinumerik 808D control and a robust construction, it ensures high accuracy, reliability and performance, ideal for medium and large production plants.
Main Advantages of the CNC Lathe 660x2000
The CNC metal lathe 660x2000 is a professional industrial solution that combines advanced technology with robust construction, dedicated to plants requiring the highest cutting quality. As an industrial lathe, it enables the execution of complex operations such as external, internal and spherical turning, threading, drilling, grooving and contouring, ensuring excellent surface finish and precision. Its key benefits include:
- Exceptional machining precision: Maximum turning diameter over bed 660 mm and over carriage 450 mm, with a maximum workpiece length of 2000 mm, guaranteeing superb finish quality.
- Versatile spindle: Speed range of 15–1000 rpm, spindle bore of 86 mm and spindle nose type A2-11 allow machining a wide variety of materials, from steel to light alloys.
- Intuitive control: The Siemens Sinumerik 808D system in English with Siemens servo drives provides a dedicated mode for operators of conventional machines, reducing the learning curve for CNC operation.
- Rigid construction: A net weight of 5200 kg and dimensions of 4600x1800x1900 mm ensure excellent stability during heavy-duty cutting.
- Tooling efficiency: A 4-position turret with coolant and up to 8 tool positions speeds up tool change and shortens production cycles.
- Fast setup: Convenient tool alignment, zero-point definition and correction without program entry make it ideal for single-part production.
- Enhanced safety: Controlled movements and speed limitation enable precise and safe operation, minimising the risk of errors.
- Durable components: Automatic lubrication of gears and guideways reduces wear and extends the lifetime of the machine.
- Optimised cooling: The spindle head cooling system ensures thermal stability, protecting tools and workpieces during intensive cutting.
- Wide application range: Designed for precision turning in mechanical, automotive and toolmaking industries, suitable for both batch and small-series production.
- Operational economy: A 12kW main motor with an inverter offers high efficiency and low energy consumption.
- Integration with machining cycles: Cooperation with turning, tapering, threading or drilling cycles requires only the input of basic parameters, without G-code knowledge.
- Advanced automation: Options such as hydraulic chuck, hydraulic tailstock, bar feeder and chip conveyor enhance production efficiency.
- Customisation options: A wide selection of upgrades, including Fanuc Oi-TF, Sinumerik 828D control, tool probe or CAD/CAM software, allows the machine to be tailored to specific needs.
- European safety standards: CE certification confirms compliance with rigorous safety regulations.
Design and Technology of the CNC Lathe 660x2000
The industrial CNC lathe 660x2000 has been engineered for reliability and precision under demanding production conditions. The key design elements include:
- Solid machine bed: Rigid structure with a net weight of 5200 kg minimises vibration and ensures stability during machining.
- High-performance spindle: Bore of 86 mm, rotational speed 15–1000 rpm and spindle nose type A2-11 allow machining a wide range of parts.
- Turret head: 4-position unit with coolant, supporting 8 tools, provides fast tool change and flexibility of operations.
- Hydraulic tailstock: Quill diameter 75 mm, taper MT5 and maximum travel 250 mm ensure precise support of long workpieces.
- Hydraulic 3-jaw chuck: Guarantees firm workpiece clamping and higher process automation.
- Siemens servo drives: Ensure smooth movement and high positioning accuracy.
- Automatic lubrication system: Centralised lubrication for gears and guideways minimises wear and increases durability.
- Cooling system: Integrated into the head, maintains optimal temperature, improving machining quality and tool life.
- 24V halogen lighting: Provides excellent visibility in the working area for greater safety and precision.
Precision and Productivity
The CNC Lathe 660x2000 guarantees outstanding precision through Siemens Sinumerik 808D control and Siemens servo drives. Advanced fixed cycles such as cross turning, tapering, threading, grooving and contouring simplify programming and shorten machining time. Rapid traverse in X/Z axes (6/8 m/min) and capacity for workpieces up to 660 mm in diameter and 2000 mm in length ensure high productivity and performance.
Applications of the CNC Metal Lathe 660x2000
CNC metal lathes such as the 660x2000 are used in a wide range of industrial sectors, including:
- Mechanical industry: Production of shafts, bushings, flanges and precision components.
- Automotive industry: Machining of engine, gearbox and suspension components.
- Toolmaking industry: Manufacturing of threads, grooves and parts with complex geometries.
- Batch and small-scale production: Perfect for medium-scale manufacturing and quick prototyping in R&D departments.
The machine is an excellent choice for workshops seeking a versatile and reliable CNC lathe for metalworking.
Standard Equipment
- Siemens Sinumerik 808D control in English
- Siemens servo drives
- Hydraulic 3-jaw lathe chuck
- 4-position turret with head cooling
- Set of soft jaws
- Hydraulic tailstock
- Fixed steady rest
- Cooling system
- Automatic lubrication system for gears and guideways
- 24V halogen lighting
- CE certification
Optional Equipment*
- Siemens Sinumerik 828D control
- Fanuc Oi-TF control
- GSK control
- Travelling steady rest
- Hydraulic chuck
- Hydraulic tailstock
- Fixed steady rest
- Tool probe
- Chip conveyor
- Additional soft jaws
- Hard jaws
- Collet chucks
- Finished part catcher
- Bar feeder
- Tool holders
- CAD/CAM software
*The price quoted refers to the machine only, excluding optional or additional equipment, installation, transport and training — please contact our consultant for further details.
Technical Specifications
| CONTROL SYSTEM |
Sinumerik 808D
|
| MAXIMUM WORKPIECE LENGTH |
2000 mm
|
| SWING OVER BED |
660 mm
|
| SWING OVER CARRIAGE |
450 mm
|
| SPINDLE NOSE |
A2-11
|
| SPINDLE BORE |
86 mm
|
| TOOL POST |
4 positions with head cooling
|
| SPINDLE SPEED |
15–1000 rpm
|
| MAX. X-AXIS TRAVEL |
380 mm
|
| RAPID TRAVERSE X/Z AXES |
6/8 m/min
|
| TAILSTOCK QUILL DIAMETER |
75 mm
|
| MAX. TAILSTOCK QUILL TRAVEL |
250 mm
|
| TAILSTOCK TAPER |
MT5
|
| NUMBER OF TOOLS |
8
|
| MAIN MOTOR POWER |
12 kW
|
| DIMENSIONS |
4600x1800x1900 mm
|
| WEIGHT |
5200 kg
|
CNC Control Systems – Siemens and Fanuc
The CNC Lathe 660x2000 is equipped with advanced CNC control systems such as Siemens Sinumerik 808D, Siemens Sinumerik 828D and Fanuc Oi-TF, providing precision, reliability and ease of use:
Siemens Sinumerik 808D
- Intuitive interface: Simple to operate, ideal for smaller workshops and entry-level users.
- Reliability: Rugged construction resistant to industrial conditions.
- Cost-effectiveness: Perfect for standard turning and milling applications.
Siemens Sinumerik 828D
- High computing power: Enables dynamic machining and processing of complex cycles.
- CAD/CAM integration: Facilitates cooperation with design software.
- Advanced features: Toolpath optimisation and upgrade options for additional modules.
Fanuc Oi-TF
- Stability: Proven reliability for serial and long-term production.
- Advanced turning cycles: Ideal for precise machining operations such as threading and grooving.
- Intuitive operation: Clear interface accelerating programming and setup.
