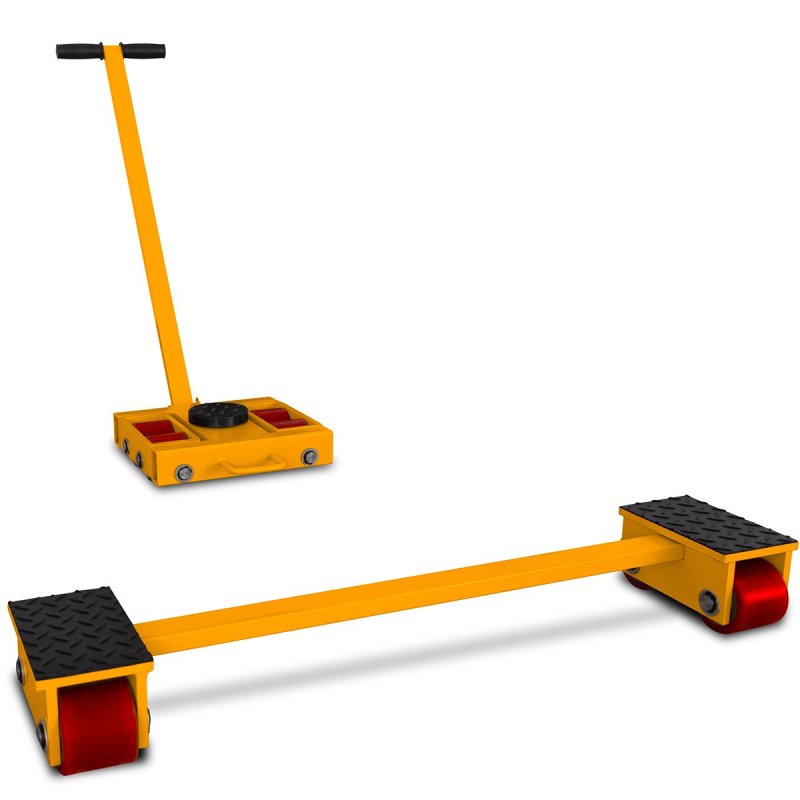

Machinery Moving Skate Set CORMAK WL4+WF4 – 8t Load Capacity

The WL4+WF4 machinery moving skate set with an 8t load capacity is designed for moving heavy machinery, equipment and industrial installations horizontally. It combines the WL4 module with a guiding drawbar and the WF4 skate assembly with adjustable skate spacing, creating a three-point load support system. This configuration allows the set to be adapted to the base of the machine being transported and facilitates relocation work.

Main advantages of the WL4+WF4 machinery moving skate set

• Set load capacity of 8,000kg – a combination of the WL4 module with a 4,000kg load capacity and the WF4 skate assembly with a 4,000kg load capacity for transporting heavy industrial equipment.
• Adjustable skate spacing of 50-1100mm – allows the support positions to be adjusted to the width of the machine base.
• Loading height of 110mm – a low-profile design that makes it easier to position the transport components beneath a raised load.
• 900mm drawbar length – facilitates guiding the WL4 module when moving equipment.
• Three support points – allow the supports to be positioned according to the design of the machine base.

Construction and manoeuvring – machinery moving skates

Each module is equipped with 4 rollers measuring Ø80x70mm, giving a total of 8 rollers in the set. The identical loading heights of the WL4 and WF4 provide a common support level. The two-module arrangement makes it easier to position the components beneath the machine and prepare a configuration suited to its dimensions.

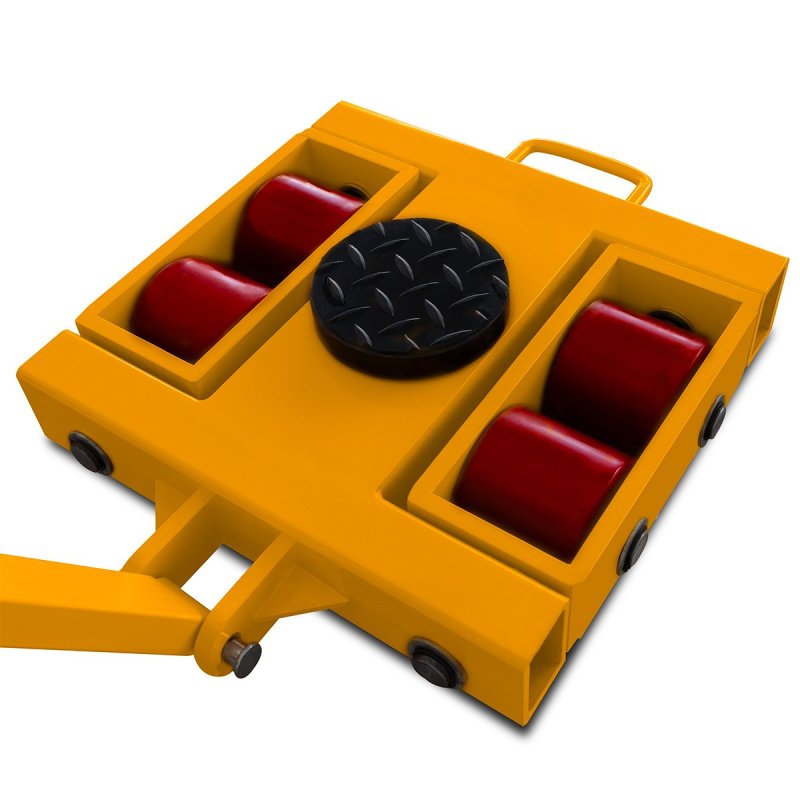

WL4 – module with guiding drawbar

The WL4 provides one support point with a load-bearing surface of Ø110mm. The module dimensions of 320x420mm allow its footprint to be taken into account when planning its position beneath the machine base. The 900mm drawbar is used to guide the module, facilitating manoeuvring during transport and positioning at the destination workstation.

WF4 – skate assembly with adjustable spacing

The WF4 provides two support points, each with a load-bearing surface of 180x110mm. The adjustable spacing of 50-1100mm allows the skate positions to be adapted to the width of the equipment and the arrangement of its support points. An 860mm connecting bar links the components of the skate assembly. The adjustable design broadens the range of applications when handling machines with different base dimensions.

Efficient internal transport and machine positioning

WL4+WF4 machinery moving skates support the organisation of installation and relocation work. Once the equipment has been raised using suitable lifting equipment, the modules can be positioned beneath the designated support points. The low loading height and adjustable skate assembly make it easier to prepare the machine for moving, while the drawbar allows the WL4 module to be guided towards its intended position.

The set is intended for moving loads over level, hard floors with sufficient load-bearing capacity. Preparing the route and positioning the supports according to the machine's construction helps ensure efficient transport operations within the facility.

Applications of the 8t machinery moving skate set

The WL4+WF4 machinery moving skate set is suitable for use in manufacturing plants, workshops, warehouses and maintenance departments. It is used to move machine tools, workshop machinery and other industrial equipment with appropriately selected support points. It is suitable for equipment installation, workstation reorganisation and preparing access to machines for servicing.

Set contents

• WL4 module – one support point, 4 rollers and a 900mm drawbar.
• WF4 skate assembly – two support points, a total of 4 rollers and an 860mm connecting bar.

Technical specifications of the WL4 + WF4 set

WL4

WF4

Order the WL4+WF4 machinery moving skate set from CORMAK and equip your facility with skates for moving heavy machinery. Contact our adviser to select a set suitable for the weight, dimensions and support arrangement of the equipment being transported.
