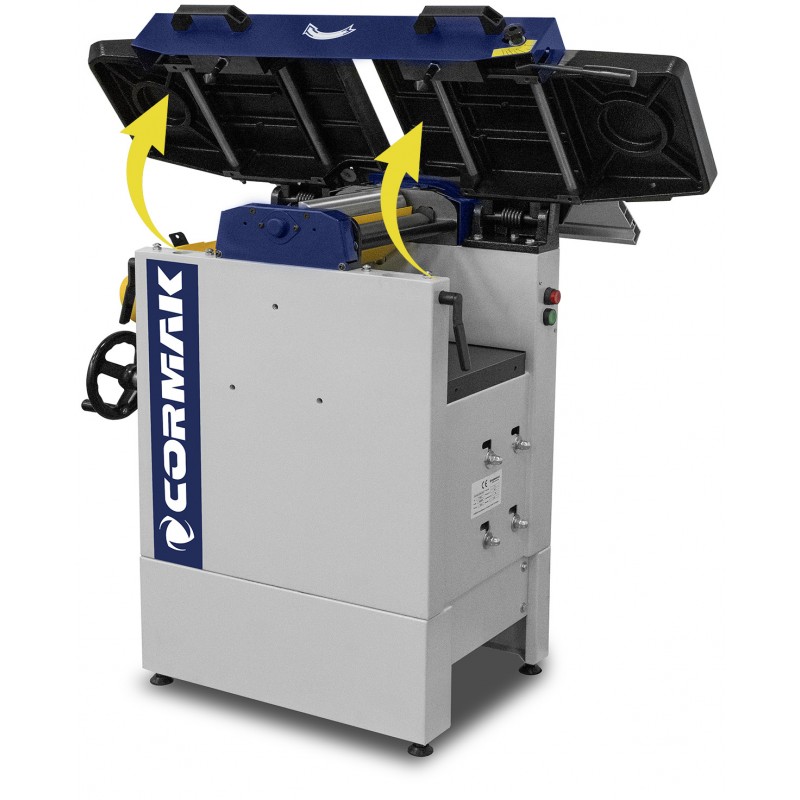

Planer Thicknesser CORMAK PT265 230V NEW VERSION – efficient wood machining for single-phase workshops

The CORMAK PT265 230V planer thicknesser in its new version is an advanced woodworking machine designed for users requiring precision, performance and compact dimensions while operating on single-phase power. This unit combines the functions of a surface planer and thicknesser, offering enhanced accuracy through an innovative synchronised table system. It provides a professional solution for craft workshops, carpentry shops and hobbyists working with both hard and soft woods.

Main features

• New integrated table system – simultaneous adjustment of infeed and outfeed tables eliminates the need for separate calibration.
• Stable and heavy construction – 170 kg mass and wide cast-iron working tables minimise vibration and increase work safety.
• Powerful 2.6 kW (S6) motor – higher torque reserve enables effective machining of even hard wood species.
• Quick function conversion – easy changeover from planer to thicknesser via the lifting mechanism and chip hood system.
• 230V power supply – allows use in workshops without access to three-phase installations.

Construction and technology

The CORMAK PT265 planer thicknesser features a redesigned working table system that operates synchronously while maintaining a constant reference plane. This avoids typical issues of older machines such as uneven surfaces and alignment errors. The 75 mm three-knife cutterhead rotating at 4,000 rpm ensures high-quality surface finishing. The aluminium fence 700 × 150 mm with angular scale enables precise angle setting between 90°–45°, increasing the machine’s versatility.

Precision and performance

Thanks to the precise height adjustment with a clear scale and the centrally mounted thicknessing table on a column, the CORMAK PT265 thicknesser ensures stable and repeatable operation. The cutting depth reaches up to 3 mm, while the feed rate of 6 m/min allows fast and efficient processing. A robust drive and stable frame ensure even material feed, eliminating jamming or dimensional inaccuracies.

Applications

The machine performs perfectly in:

• carpentry workshops producing furniture, structural and finishing components,
• craft workshops manufacturing boards, mouldings and built-in elements,
• hobby workshops with limited space and single-phase power supply,
• schools and training centres as educational equipment for teaching woodworking technologies.

Standard equipment

• Cutterhead Ø75 mm with three knives
• Modern synchronised cast-iron table system – ground and polished
• Aluminium fence 700 × 150 mm with angle scale
• Dust extraction port Ø100 mm for chip removal connection
• Quick change system between planer and thicknesser modes
• User manual
• CE declaration of conformity

Optional equipment

• Chip and dust extractor
• Knife setting gauge
• Roller tables

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Choose the modern CORMAK PT265 230V planer thicknesser NEW VERSION and enhance the quality and precision of your woodworking operations.

Technical data
