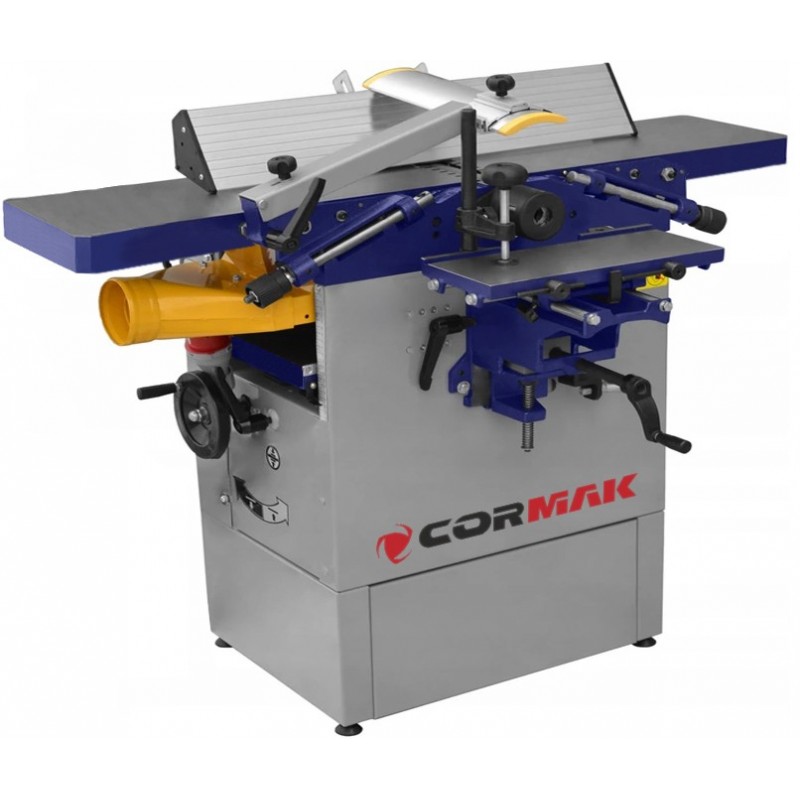

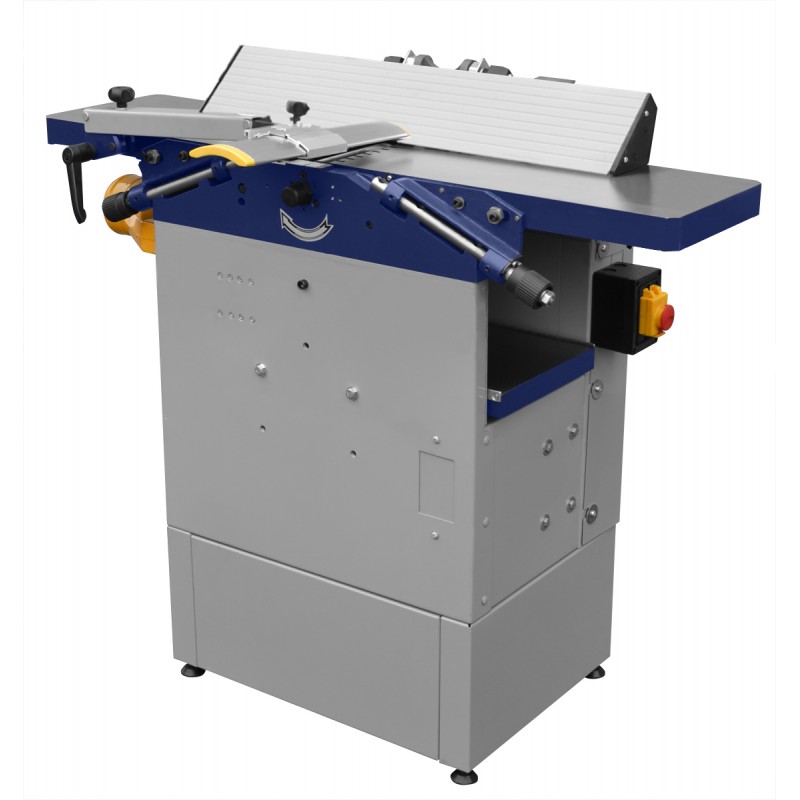

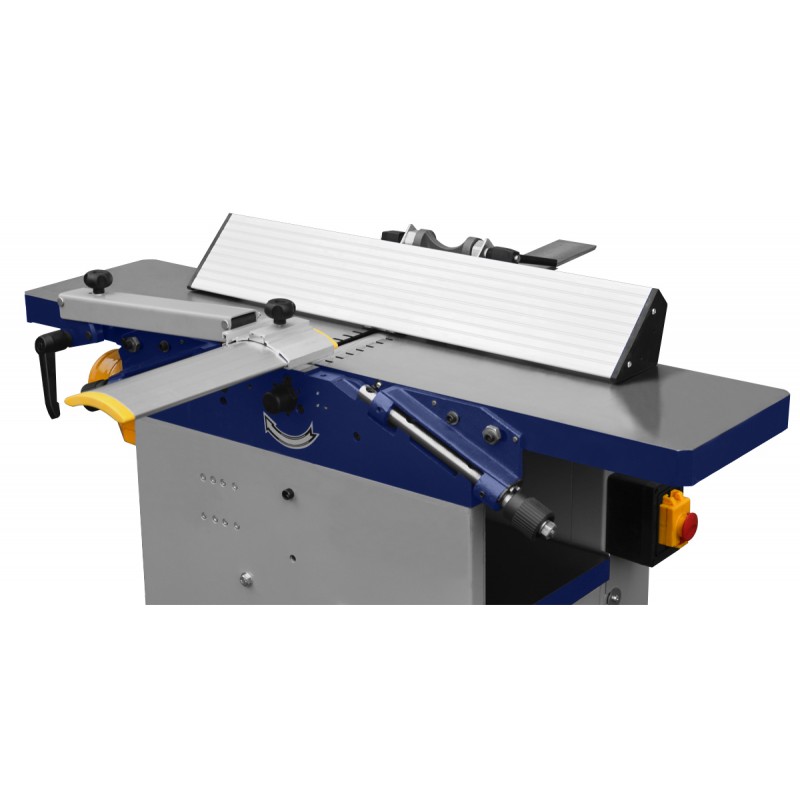

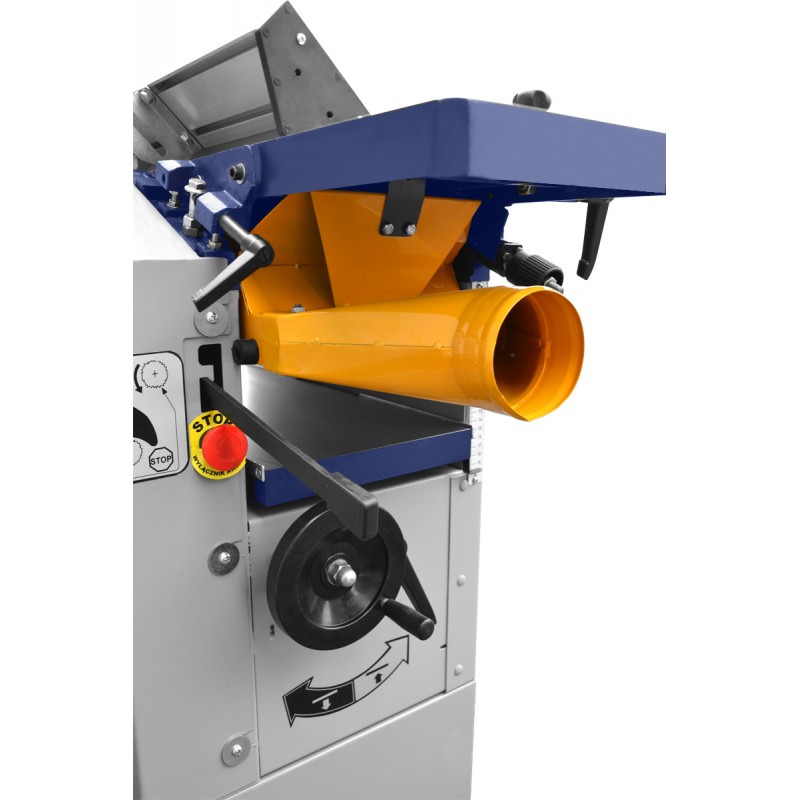

Planer-Thicknesser CORMAK PT250 400V

Planer Thicknesser CORMAK PT250 400V – precise and efficient wood processing in a single working cycle

The CORMAK PT250 400V planer thicknesser is a compact yet highly durable machine designed for intensive use in professional woodworking workshops. It combines the functions of a surface planer and a thicknesser, enabling precise planing and calibration of raw timber in one operation. Thanks to its solid construction and modern technical solutions, this is one of the most efficient woodworking machines in its class.

Main features

• Compact planer thicknesser – industrial-grade durability, ideal for craft and production workshops.
• Large working width – up to 254 mm for both planing and thicknessing, suitable for wide elements.
• Stable cast iron construction – finely ground work surfaces ensure smooth and quiet operation without vibration.
• 2.6kW motor – three-phase 400V power supply for high energy efficiency and overload resistance.
• Three-knife cutterhead – 4,000 rpm speed ensures clean and smooth finish surfaces.
• Practical feed mechanism – allows machining of shorter workpieces thanks to the optimal positioning of feed rollers.

Construction and technology

The CORMAK PT250 thicknesser is built on a rigid steel and cast iron frame, ensuring exceptional structural strength. The worktables are made of polished cast iron to facilitate smooth material feed and reduce sticking. The cutterhead consists of three knives arranged spirally on a 75mm shaft, significantly improving surface quality after planing. The feed drive uses chain and gear transmission, providing reliable feed without “toothing” marks. The adjustable tilting fence (0–45°) allows precise bevel and chamfer machining.

Precision and performance

The CORMAK PT250 400V planer thicknesser stands out for its cutting accuracy and dimensional repeatability. With a working width of up to 254mm and a maximum planing height of 180mm, it performs well when processing both thin boards and large structural beams. The planer thicknesser operates at a feed rate of 6m/min, providing efficient work output while maintaining optimal surface quality.

Applications

The PT250 model is a reliable tool for a wide range of applications:

• Joinery and furniture workshops – machining of boards, battens, panels, worktops and beams.
• Service workshops – cutting to size, renovation, and serial or single-unit production.
• Vocational schools and technical training centres – teaching planing and wood preparation techniques.
• Hobbyists and craftsmen – precision machining of hard and soft wood in home workshops.

Standard equipment

• Ø75mm cutterhead with three knives
• Tilting fence adjustable between 0°–45°
• Cast iron worktables – ground and polished
• Feed system with steel rollers and chain drive
• User manual
• CE declaration of conformity

Optional equipment

• Auxiliary roller table
• Mortising and drilling attachment
• Chip and dust extractor
• Knife setting device
• Single-roller stands

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Invest in proven technology – choose the CORMAK PT250 400V planer thicknesser and ensure your production reliability, quality, and efficiency.
