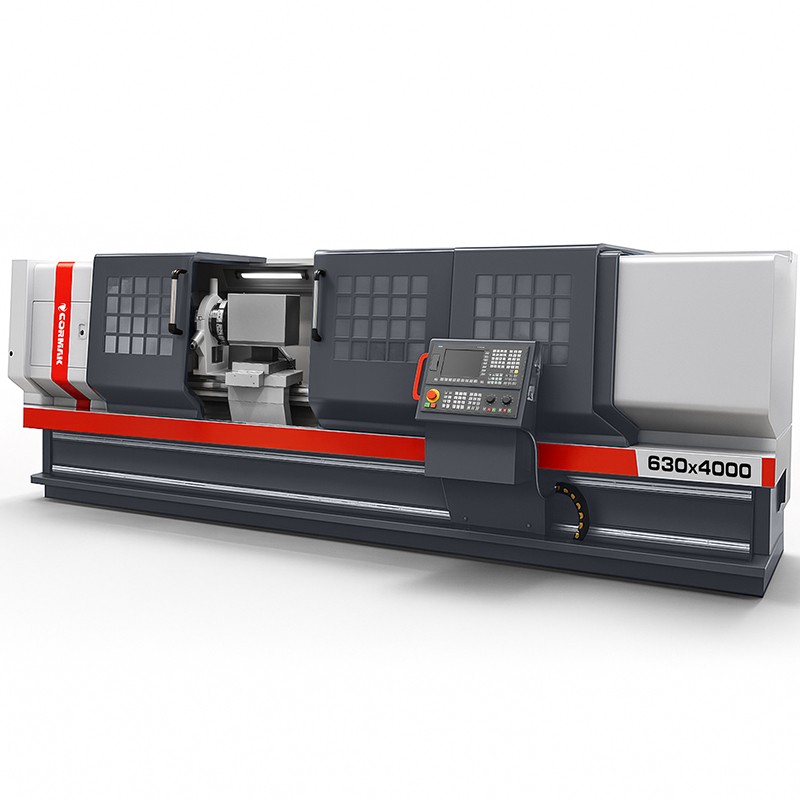

CNC Lathe CKT630x4000 – Professional Precision and Reliability in Metalworking
Why Choose Our Lathe?
- Robust construction: The machine has been designed for durability and resistance to intensive use. Its solid frame ensures reliable operation even during long-term production.
- Precise machining: Advanced turning functions enable accurate machining of components in various shapes and sizes, ensuring the highest level of precision.
- Intuitive operation: A simple and user-friendly control system facilitates operation for both skilled machinists and new CNC users. Reduced programming time increases productivity and operator comfort.
Technical Data – CNC Lathe CKT630x4000
| Control system |
Sinumerik 808 |
| Centre distance |
4000 mm |
| Turning diameter over bed |
630 mm |
| Turning diameter over cross slide |
450 mm |
| Bed width |
600 mm |
| Chuck |
manual |
| Tailstock |
manual |
| Spindle nose |
A2-11 |
| Spindle bore |
100 mm |
| Tool post |
4-position (OPTION 6, 8) |
| Spindle speed |
30–800 rpm |
| Maximum X-axis travel |
330 mm |
| Rapid feed X/Z |
6/8 m/min |
| Tailstock quill diameter |
75 mm |
| Maximum quill travel |
250 mm |
| Tailstock taper |
MT5 |
| Motor power |
11 kW |
| Weight |
8600 kg |
Available Equipment
- SIEMENS SINUMERIK 808 control (English version)
- SIEMENS servo drives
- Manual 3-jaw chuck
- 4-position tool turret
- Set of soft jaws
- Manual tailstock
- Fixed steady rest
- Coolant system
- Automatic lubrication system for gearbox and guideways
- 24V halogen work light
- User manual
Optional Equipment*
- Available controls: SINUMERIK 828, Fanuc, GSK
- Travelling steady rest
- Hydraulic chuck
- Hydraulic tailstock
- Fixed steady rest
- Tool probe
- Chip conveyor
- Additional soft jaws
- Hard jaws
- Collet holders
- Finished parts gripper
- Bar feeder
- Toolholders
- CAD/CAM software
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.
CNC Controls – Siemens Sinumerik 808D, 828D and Fanuc Oi-TF
We offer professional CNC systems from renowned manufacturers Siemens and Fanuc, providing precision, performance and ease of operation. These solutions are ideal for both smaller workshops and demanding industrial applications.

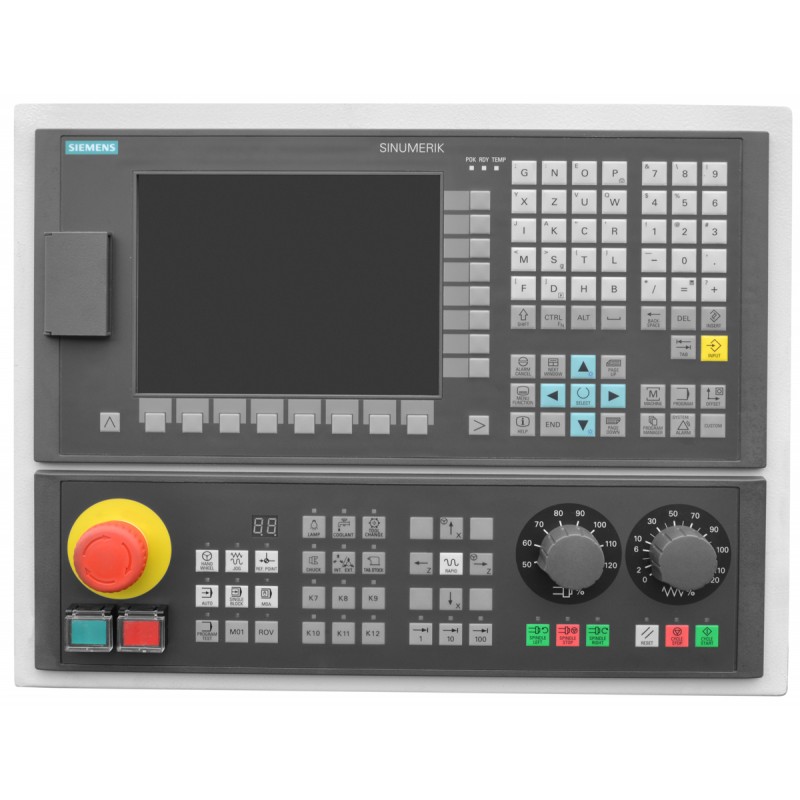

Siemens Sinumerik 808D – Compact CNC Control for Standard Applications
Siemens Sinumerik 808D is a modern and economical CNC control system designed for entry-level lathes and milling machines. It has been created for small and medium enterprises, offering:
- Intuitive operation – a graphical, user-friendly interface that simplifies machine programming and configuration.
- High reliability – durable hardware resistant to challenging workshop conditions.
- Wide compatibility – suitable for machines with basic technological requirements.
- An excellent choice for beginners who want to start working with modern CNC technology.
Siemens Sinumerik 828D – Advanced CNC Control for Demanding Applications
Sinumerik 828D is a professional CNC control system designed for lathes and milling machines that require superior precision and performance. Its key features include:
- High computing power – fast data processing enables dynamic and highly accurate metal cutting operations.
- Comprehensive technological functions – advanced machining cycles, interpolation options, and toolpath optimisation.
- Compact and durable design – built for heavy-duty use in industrial environments.
- Easy automation integration – expandable with additional modules and control options for complex production processes.
- CAD/CAM compatibility – seamless integration with design and production management software.
This control system is an excellent choice for companies seeking high performance and reliability for advanced machining operations.
Fanuc Oi-TF – Stability and Precision in Turning Applications
Fanuc Oi-TF is one of the most popular CNC control systems for lathes, renowned for its reliability and ease of use. It is widely adopted in the metalworking industry thanks to its:
- Exceptional operational stability – consistent performance and precision, even during long production runs.
- Advanced turning functions – supports a wide range of machining cycles, including threading, grooving, drilling and contouring.
- User-friendly interface – clear display and optimised navigation for faster programming and setup.
- Wide compatibility – suitable for integration with various lathe models and configurations.
- Optimised process efficiency – allows enhanced control over machining parameters, reducing production time and material waste.
With the Fanuc Oi-TF system, operators can rely on stable and precise operation, resulting in higher productivity and machining quality.
Choosing the right CNC control is key to achieving optimal machining efficiency and precision. Siemens Sinumerik 808D is ideal for standard applications, Siemens Sinumerik 828D is suited for advanced production needs, while Fanuc Oi-TF guarantees maximum reliability and accuracy in turning operations.
Contact us – our specialists will help you choose the CNC control system best suited to your production requirements!
User Manuals
SIEMENS SINUMERIK 828/840
Download manual
SIEMENS SINUMERIK 808
Download manual
