A 220-litre sandblaster cabinet with top loading supported by telescopic gas struts, designed for sandblasting and cleaning surfaces from rust, paint, greasy deposits and other contaminants. The top-opening design significantly improves ergonomics when handling heavy workpieces. Supplied as standard with a set of nozzles, a blasting gun and protective films for the viewing window. The sandblaster cabinet is an essential tool in the metalworking, automotive, construction and shipbuilding industries. Thanks to its capacity and adjustable abrasive stream, it ensures fast and effective surface cleaning.

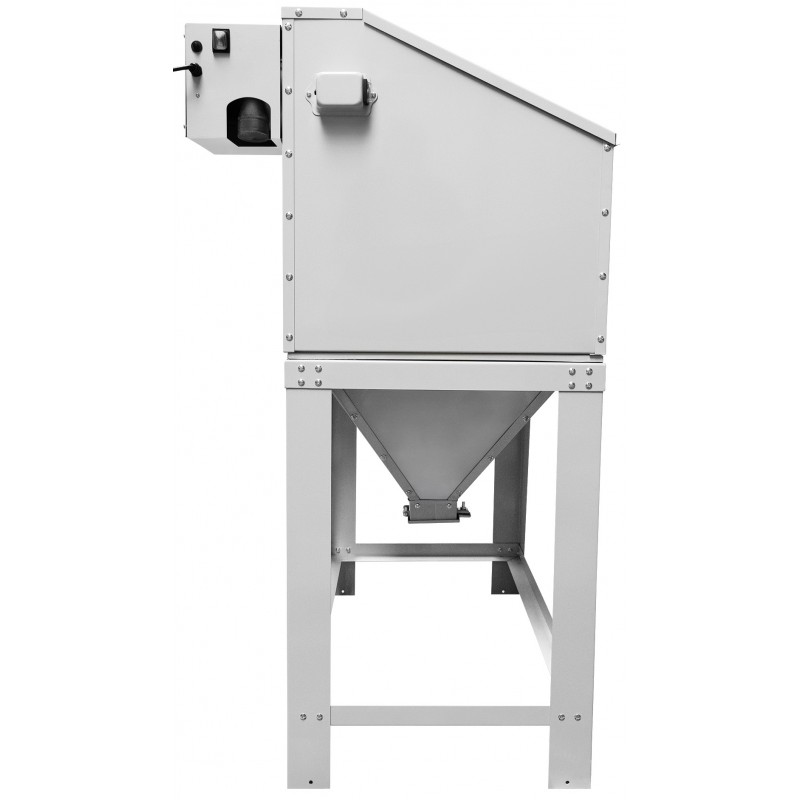

The KDP220TOP sandblaster cabinet is an industrial machine for metal sandblasting, designed for professionals seeking a precise, safe and efficient surface treatment solution. Thanks to its top-opening design with telescopic gas struts and spacious working chamber, this model is ideal as a sandblaster for rims, engine components, hinges and steel structures. The integrated DC23 dust extractor ensures cleanliness and working comfort in industrial environments.

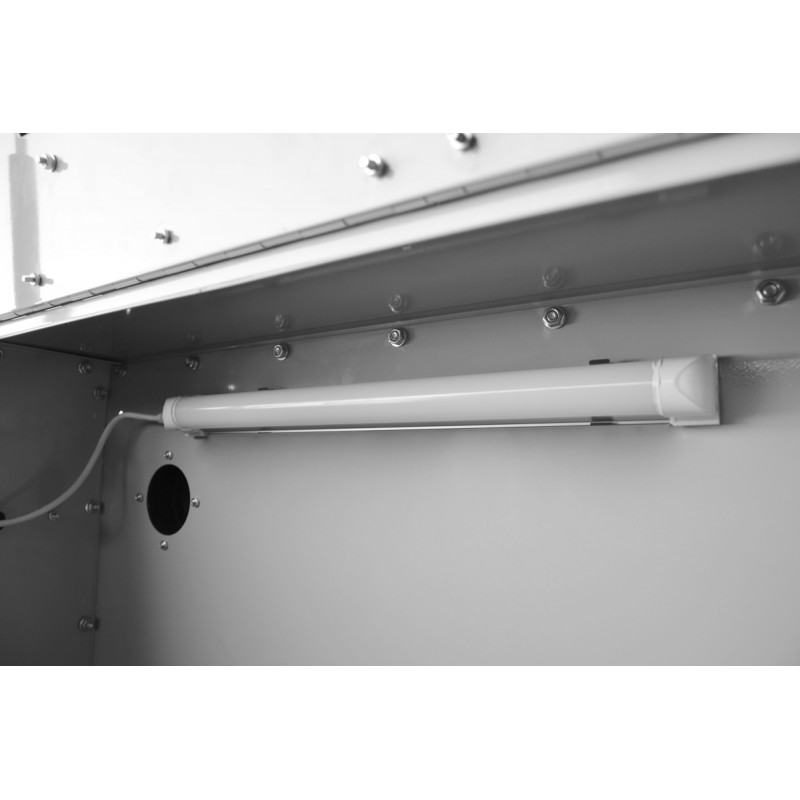

The KDP220TOP sandblaster is a robust sandblasting cabinet manufactured from reinforced steel and designed for intensive industrial use. The top lid with telescopic gas struts simplifies loading, while the large front opening with a perimeter rubber seal ensures airtight operation. A 540 x 250 mm viewing window with replaceable protective film provides a wide, unobstructed field of view. The interior is equipped with a stable working grate and efficient lighting, enabling precise surface cleaning.
Thanks to an adjustable abrasive flow and compatibility with a wide range of blasting media, the KDP220TOP metal sandblaster delivers excellent results in cleaning, matting and surface preparation prior to painting, galvanising or welding. Ideal as a sandblaster cabinet for aluminium and steel rims, it enables fast removal of rust, paint, scale and technological residues.
The KDP220TOP model is intended for professional use in industries such as:
The integrated DC23 dust extractor effectively removes fine dust from the cabinet interior, improving operator safety and comfort. A fabric filter with a capacity of 16 litres captures solid particles, while the 1200 W motor power and suction pressure of >12 kPa ensure high extraction efficiency. A flexible 2 m connection hose allows easy installation of the system.
| Technical specifications of KDP220TOP | |
|---|---|
| AIR REQUIREMENT | 400-700 L/min |
| MAX. PERMISSIBLE PRESSURE | 8 BAR |
| AIR CONNECTION | 1/4" quick coupling |

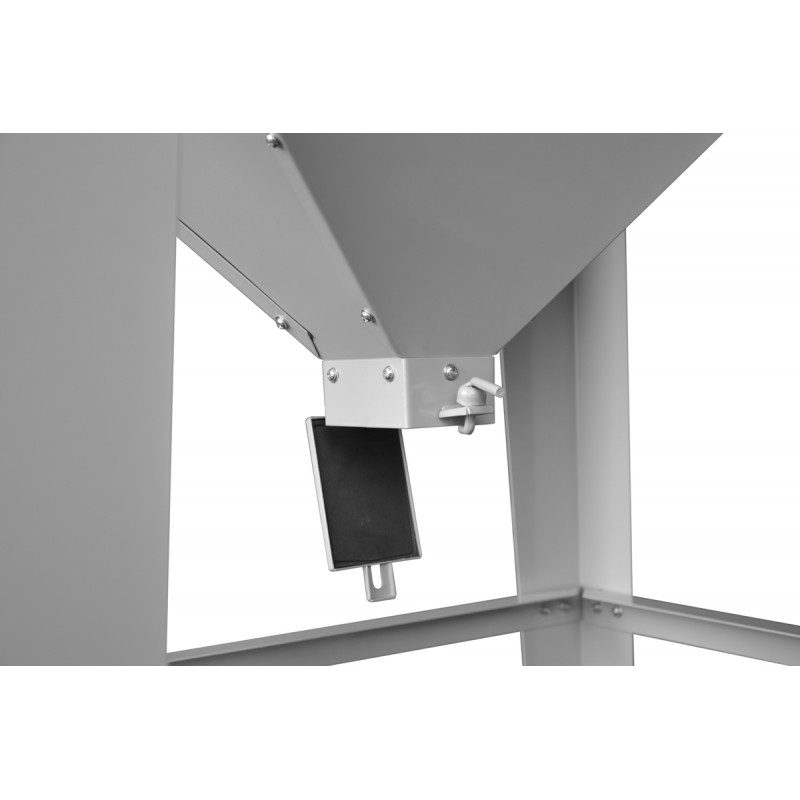

| ABRASIVE HOPPER CAPACITY | ±18 kg |
| EXTRACTION CONNECTION | 63 mm |
| VIEWING WINDOW AREA | 540 x 250 mm |
| FRONT HEIGHT | 370 mm |
| INTERNAL CABINET DIMENSIONS (L×W×Hmin–max) | 840x550x370-550 mm |
| OVERALL CABINET DIMENSIONS (L×W×Hmin–max) | 890x560x1118-1380 mm |
| WEIGHT | 49 kg |
| Technical specifications of the extractor | |
|---|---|
| MODEL | DC23 |
| VOLTAGE | 220 V |
| POWER | 1200 W |
| SUCTION PRESSURE | >12 kPa |
| INLET DIAMETER | 45 mm |
| FILTER CAPACITY | ~16 L |
Note: the machine is supplied in components and requires self-assembly according to the instructions.
Choose a proven sandblaster cabinet for rims and metal, designed for demanding users. The KDP220TOP with DC23 dust extractor is a comprehensive solution for professional workshops and industrial plants. Contact us for further information or to place your order.
