Sandblaster Cabinet 420L Top-Opening CORMAK KDP420 + Dust Extractor DC15

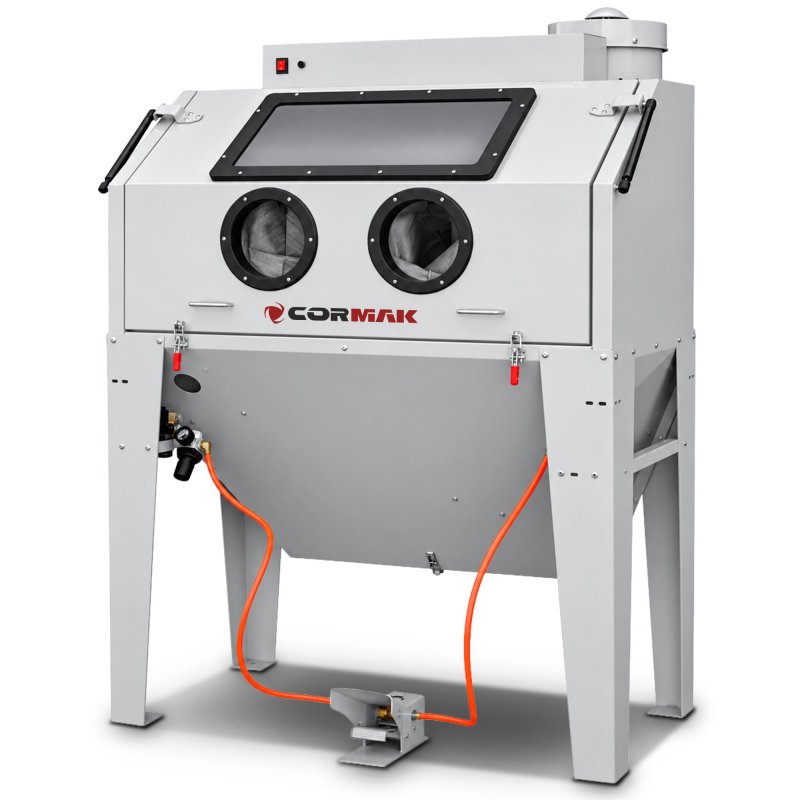

Sandblaster Cabinet KDP420 – professional cabinet for blasting rims and metal

The KDP420 sandblaster cabinet is a high-quality machine designed for abrasive blasting of metal surfaces. Thanks to its large 420-litre working chamber and robust construction, this model performs exceptionally well in professional automotive workshops as well as industrial plants. Compact external dimensions combined with a spacious interior make the KDP420 an optimal solution for users looking for a versatile sandblaster cabinet for rims, profiles, housings and structural components.

Main advantages of the machine

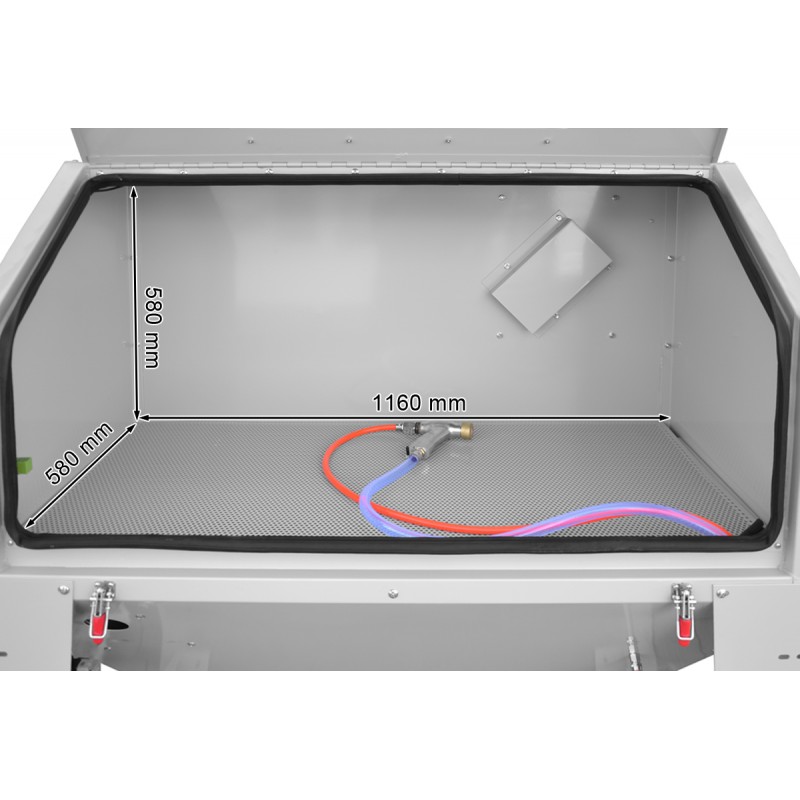

• Large working space – 420 litres, allowing processing of larger workpieces.

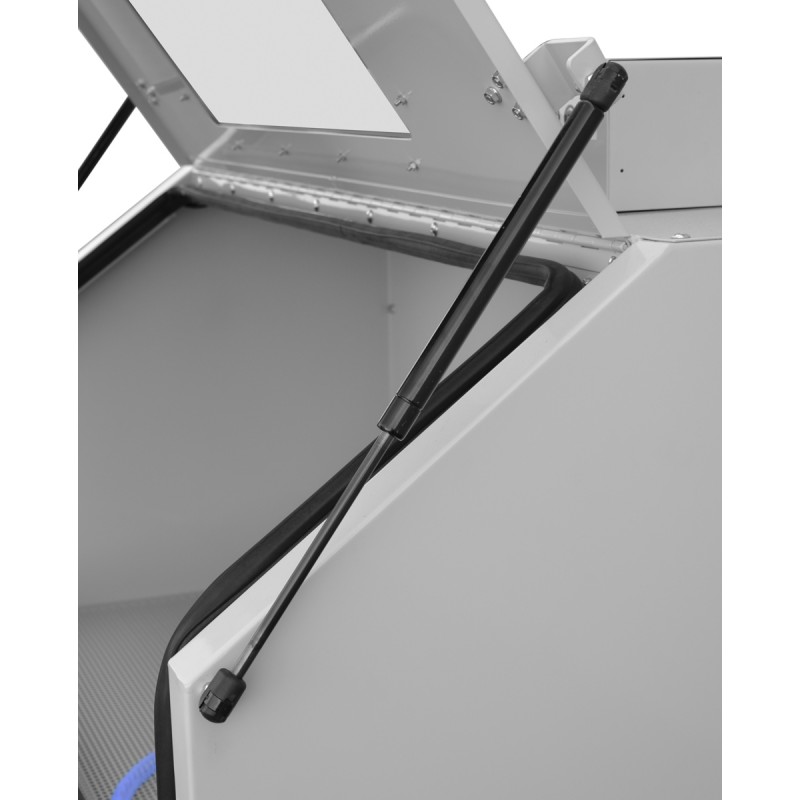

• Front door with telescopic gas struts – easy access and ergonomic operation.
• Dust-free operation thanks to perimeter seals and an efficient extraction system.
• Cyclone dust extractor included – effective removal of dust and abrasive particles.
• High-quality equipment: blasting gun with ceramic nozzles, integrated gloves, working area lighting.
• Compatibility with various abrasives: aluminium oxide, glass beads, plastic granulate, quartz sand, emery.

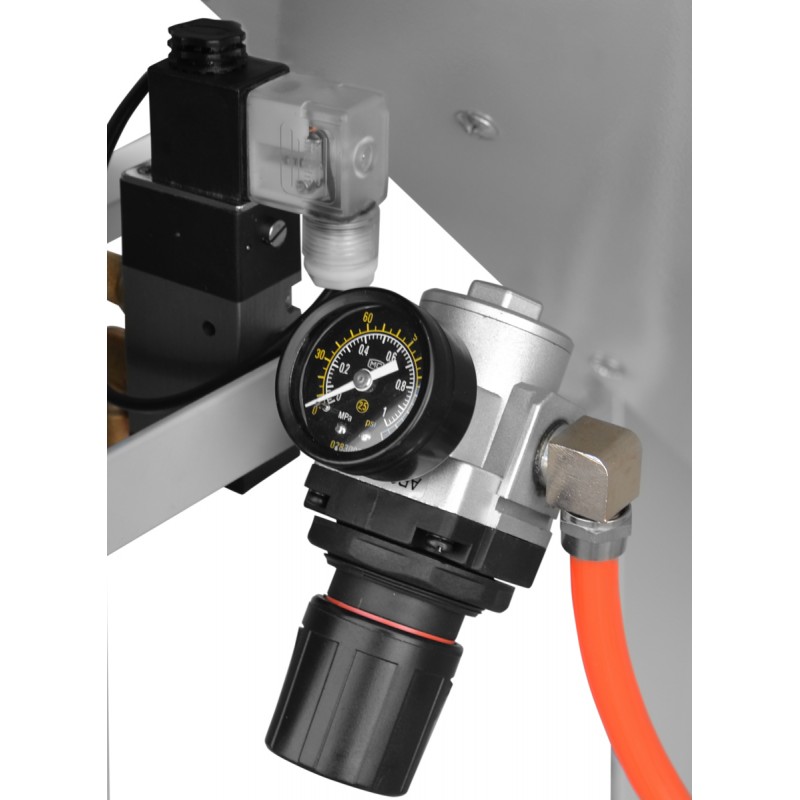

• Built-in pressure gauge with regulator and safety limit switch that cuts off air supply when the door is open.

Design and technology

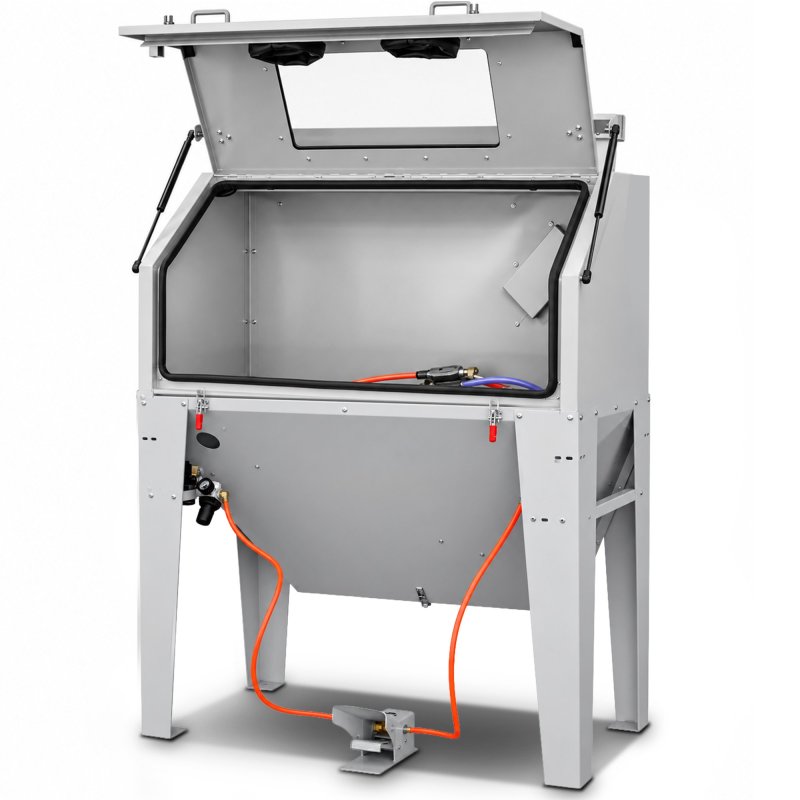

The solid housing of the KDP420 sandblaster cabinet is made of powder-coated steel, ensuring high durability and resistance to abrasive impact. The cabinet design allows quick loading thanks to front-opening doors with telescopic gas struts, significantly improving operating comfort. A sealed working chamber with rubber gaskets enables safe, dust-free operation. The lower section is equipped with a blasting hose and a drain opening for quick abrasive replacement, streamlining cleaning and servicing.

Precision and work efficiency

With adjustable working pressure ranging from 2.75 to 5.5 bar and an average air consumption of 270 L/min at 6 bar, the machine delivers stable and repeatable blasting quality. The 570 × 265 mm viewing window combined with integrated working light enables precise process control, even in hard-to-reach areas of the workpiece.

Applications

The KDP420 sandblaster cabinet is widely used in industrial, automotive and service sectors. It is particularly recommended as:

• A sandblaster for steel and aluminium rims,
• A device for cleaning engine and automotive components,
• A metal sandblaster for surface preparation prior to painting and welding,
• Equipment for refurbishing housings, steel structures, fittings and tools,
• A sandblaster cabinet for rims and profiles in regeneration and maintenance facilities.

Compatibility with a wide range of abrasive media makes the KDP420 highly versatile and suitable for various technological processes.

Standard equipment

• Cyclone dust extractor DC15
• Working area lighting – 12 V fluorescent lamp powered by 230 V
• 8 ceramic nozzles
• 2 integrated rubber protective gloves
• 2 extraction connections Ø64 mm and Ø90 mm
• Sandblasting gun with interchangeable nozzles
• 4 protective films for the viewing window
• 4 protective films for the working light
• Front doors with perimeter rubber seals

Technical specifications – KDP420 sandblaster cabinet

Note: the machine is supplied in a self-assembly version.

Order now from the CORMAK online store and work with a reliable, durable sandblasting solution!
