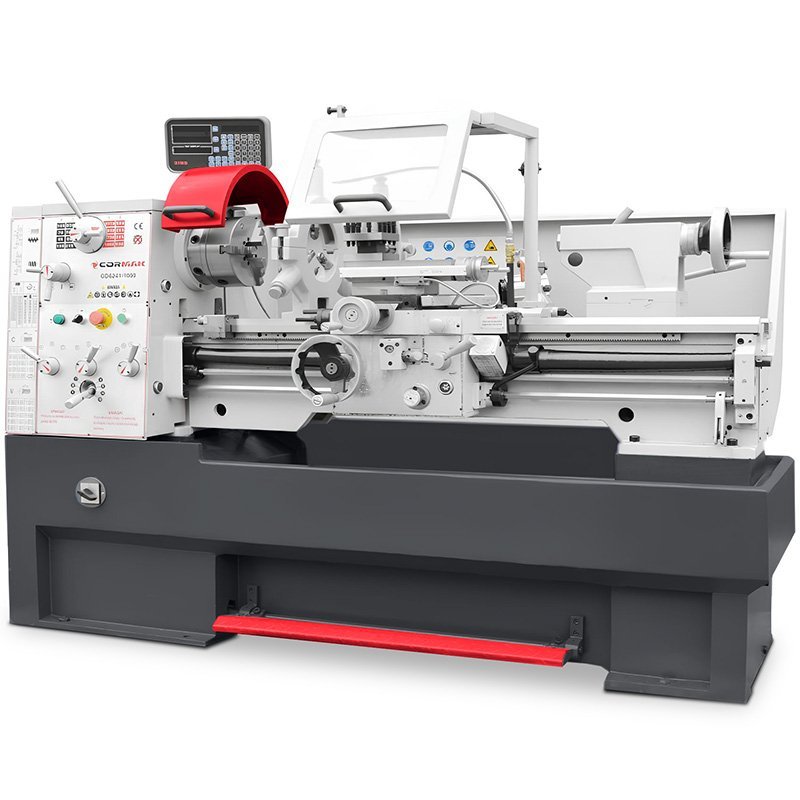

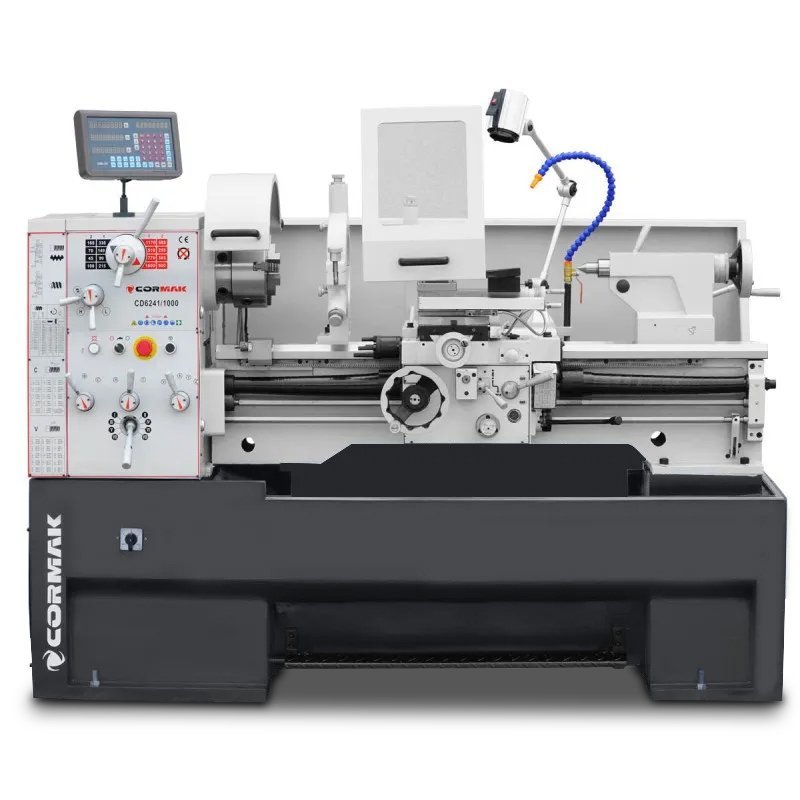

The industrial metal lathe CORMAK 410x1000 (CD6241/1000) features a rigid cast-iron bed structure and a 16-speed gearbox powered by a dual-range 3.3 kW induction motor, providing maximum torque. Recommended for machining hard steels and precision turning. Suitable for a variety of operations including internal and external turning, taper cutting, polishing, metric and inch threading, drilling and broaching.
The CORMAK 410 x 1000 UNIVERSAL LATHE is a conventional metalworking machine designed for precise and efficient cutting operations in industrial and workshop environments. Built with robust components and advanced engineering, this lathe guarantees reliability, dimensional repeatability and versatility for continuous-duty applications.

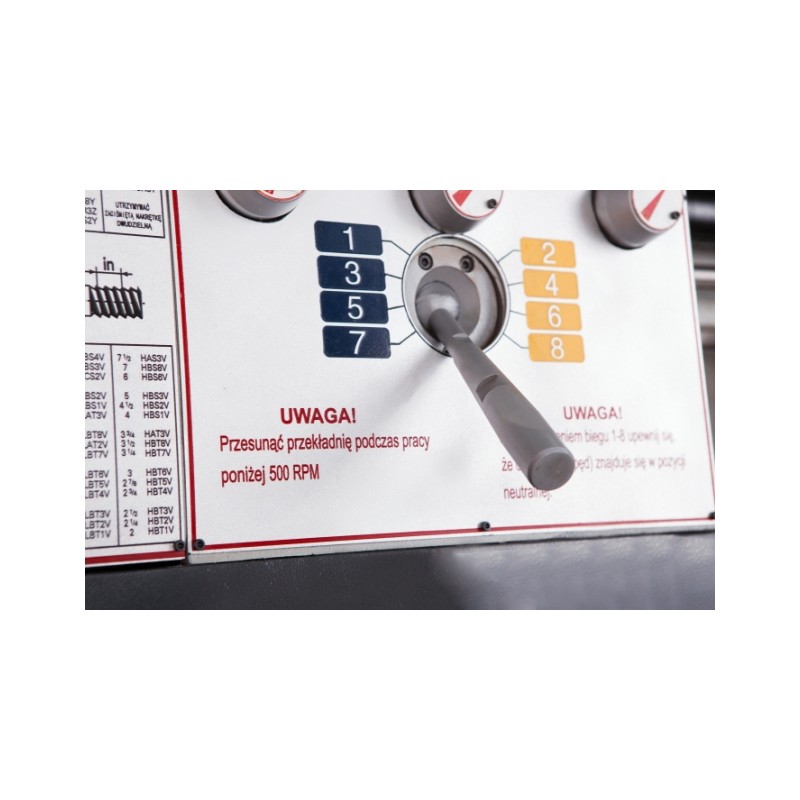

The CORMAK 410 x 1000 lathe is built on a stable cast-iron body with a precision-machined bed, ensuring rigidity and long-term reliability. The CAMLOCK D1-6 spindle with MK6 taper provides outstanding concentricity and strength. The drive system operates within 16 spindle speeds (45–1800 rpm), allowing optimal adjustment for a wide variety of materials.
The hardened and ground spindle gearbox gears ensure quiet operation, minimal backlash and long component life. The DRO system enables accurate feed control with 0.02 mm precision, ideal for serial or single-piece production. An integrated threading dial allows quick reference positioning and error-free multi-pass thread cutting.
The CORMAK 410 x 1000 conventional lathe is ideal for:
Its construction supports a wide range of turning operations while maintaining top-level accuracy and repeatability.
| 3-jaw chuck | 200 mm |
| Max. swing over bed | 410 mm |
| Swing over cross slide | 255 mm |
| Swing in gap | 580 mm |
| Distance between centres | 1000 mm |
| Centre height | 205 mm |
| Compound slide travel | 145 (0.02) mm |
| Cross slide travel | 225 (0.02) mm |
| Longitudinal travel | 750 (0.2) mm |
| Bed width | 250 mm |
| Spindle bore | 52 mm |
| Spindle mount | D1-6 CAMLOCK |
| Spindle taper | MK6 |
| Tool post size | 100 × 100 × 32 mm |
| Max. tool size | 20 × 20 mm |
| Spindle speeds | 16 ranges (45 – 1800 rpm) |
| Metric threads | (42) 0.2 – 14 mm/rev |
| Inch threads | (42) 2 – 72 TPI |
| Module threads | (18) 0.3 – 3.5 mm |
| D.P. threads | (21) 8 – 44 DP |
| Longitudinal feeds | (17) 0.05 – 1.7 mm/rev |
| Cross feeds | (17) 0.025 – 0.85 mm/rev |
| Tailstock quill diameter | 50 mm |
| Tailstock quill travel | 120 (0.02) mm |
| Tailstock taper | MK4 |
| Main motor power | 2.2 / 3.3 kW |
| Coolant pump power | 0.1 / 0.12 kW |
| Dimensions (L × W × H) | 2050 × 900 × 1650 mm |
| Weight (net) | 1600 kg |
