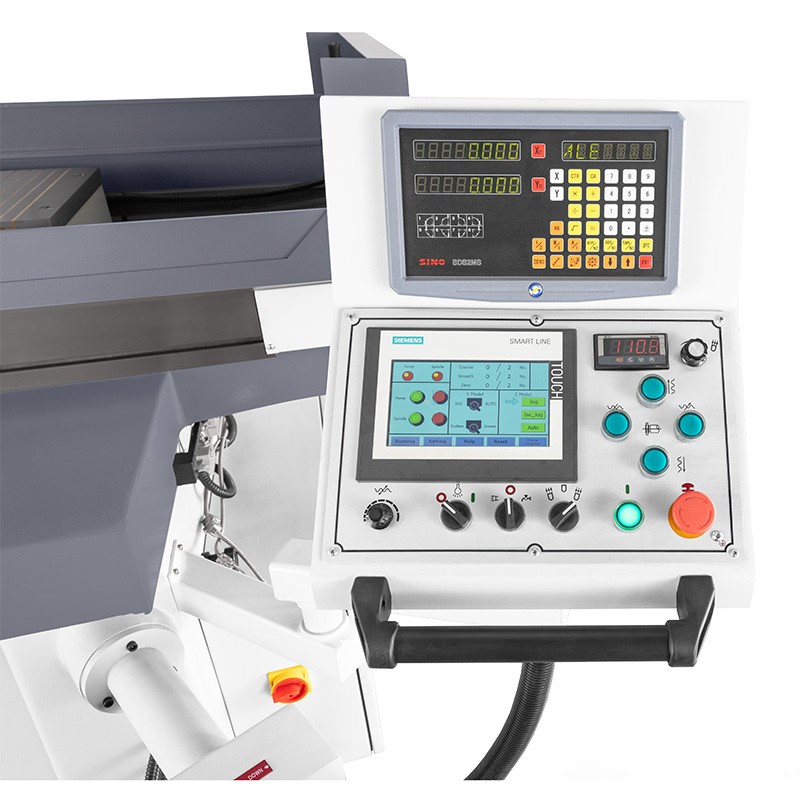

Our NC surface grinder is a perfect solution for continuous production, offering a wide grinding range supported by an advanced SIEMENS PLC controller. Its stable construction guarantees precise and repeatable results. Two pairs of spindle head guides ensure the required stability, while automatic feeds for 3 axes and a standard digital readout ensure efficient operation. Choose our surface grinder to introduce modern and effective solutions into your production.

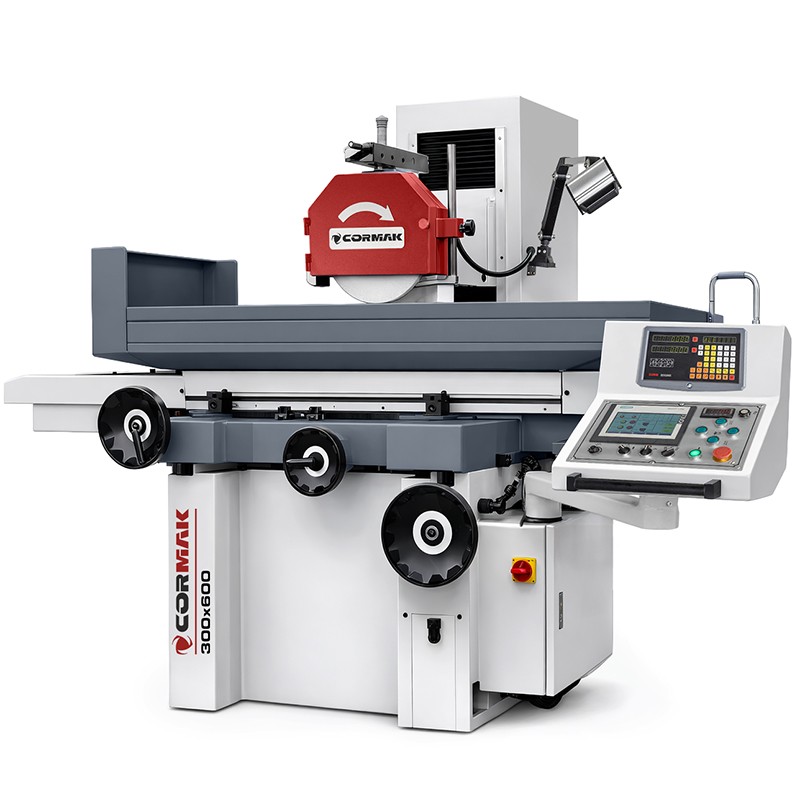

The Surface Grinding Machine 300x600 is an advanced unit designed for precise grinding of flat surfaces in industrial environments. Equipped with automatic feeds for three axes and a 300x600 mm magnetic table, it offers exceptional accuracy and reliability. Its compact structure and ability to handle loads up to 270 kg make it an ideal choice for smaller production facilities.
The Surface Grinding Machine 300x600 has been designed for precise metalworking in environments where high surface finish quality and process efficiency are essential. Its advanced technological solutions and robust construction provide users with reliability and optimised operational costs. Below are the key benefits that distinguish this machine from other surface grinders, making it an indispensable tool for professional workshops and production plants:

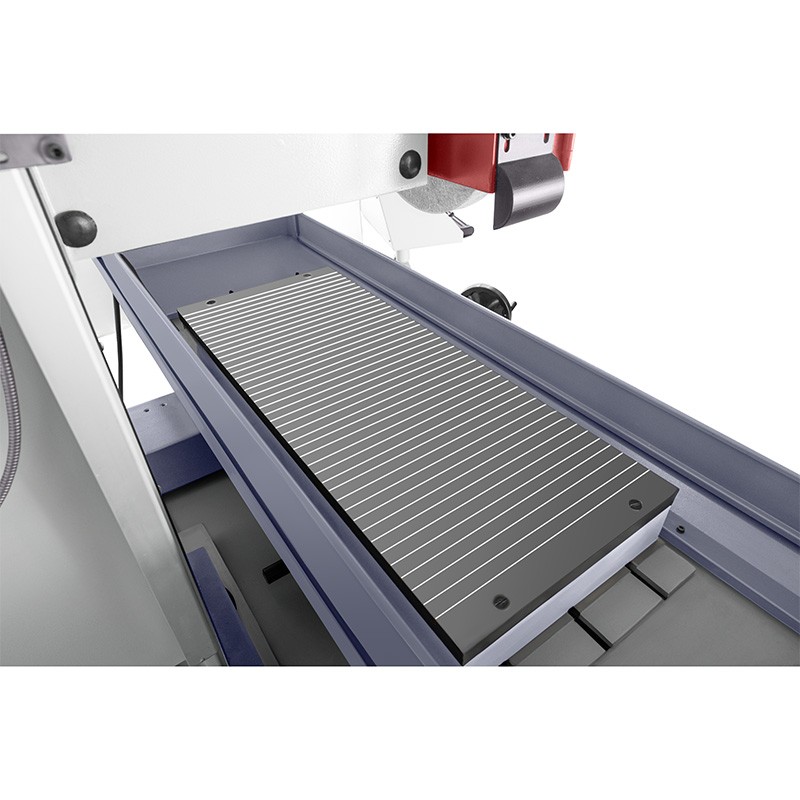

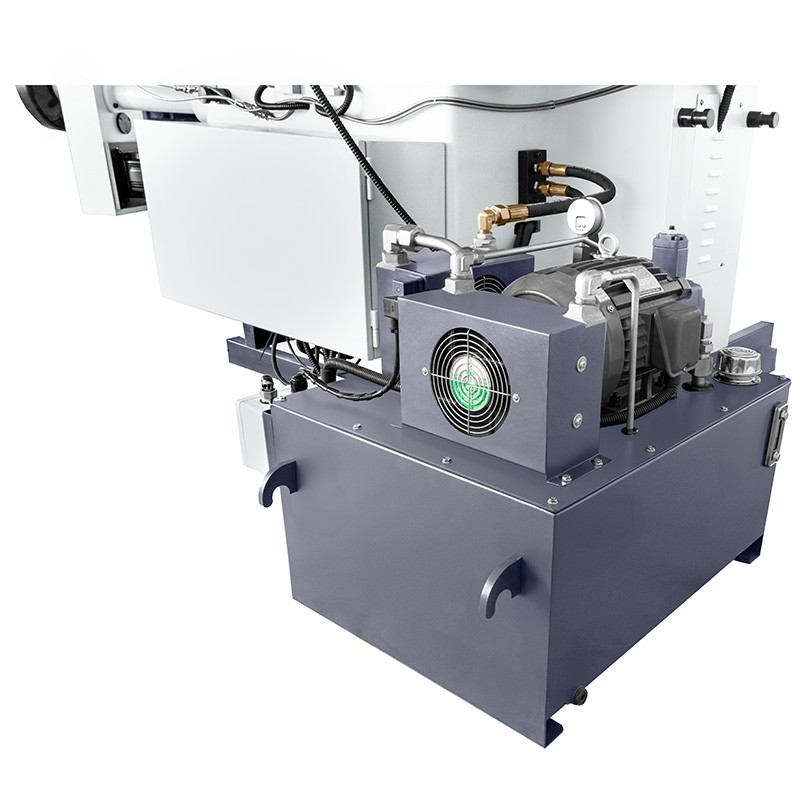

The Surface Grinding Machine 300x600 features a robust construction combining compact size with advanced technology. The machine bed, made of high-quality cast iron, ensures rigidity and minimises vibrations during machining, which is essential for precision grinding. The spindle running at 1450 rpm, mounted in precision bearings, works with a 350 x 40 x 127 mm grinding wheel, ensuring stable and uniform machining. The hydraulic system handles longitudinal table feeds in the range of 7–25 m/min, while automatic cross and vertical feeds allow precise movement control with an accuracy of 0.005 mm. The magnetic table measuring 300x600 mm ensures secure workpiece clamping, speeding up machining preparation. The integrated cooling system effectively dissipates heat, preventing thermal deformation and extending tool life. The drive motors, including the 4 kW spindle motor, are optimised for energy efficiency and low noise levels. The overall mass of 3200 kg highlights the stability and reliability of the machine in moderately demanding industrial environments.
The Surface Grinding Machine 300x600 offers exceptional precision thanks to advanced feed and control mechanisms. The automatic cross feed in the range of 0.1–8 mm and vertical feed from 0.005 mm allow tolerances below 0.01 mm, essential for producing precision components. The maximum table feed of 310x650 mm with cross speeds up to 990 mm/min enables fast machining of smaller surfaces without compromising accuracy. The grinding wheel running at 1450 rpm ensures uniform material removal, minimising tool wear and improving surface finish quality. The digital readout system for all three axes eliminates manual errors, reducing setup times and increasing throughput. Compared to other surface grinders, this model stands out with its compact structure and 270 kg load capacity, allowing accurate machining of smaller components. Energy-efficient motors and robust construction minimise downtime, making this magnetic surface grinder an effective tool for optimising industrial processes.
The Surface Grinding Machine 300x600 is intended for production facilities specialising in metalworking, such as tool shops, small and medium-sized machine component factories and service centres. It excels in grinding flat surfaces of components such as dies, injection moulds, base plates and precision parts requiring high dimensional accuracy. In B2B environments where repeatability and efficiency are key, this magnetic surface grinder supports both series and single-piece production, machining materials such as steel, cast iron and aluminium alloys. Its applications also include refurbishment of worn components in industry, where the maximum distance from table to spindle of 580 mm enables machining of workpieces of various sizes. The machine is particularly recommended for companies seeking automation of grinding processes, thanks to automatic feeds and digital readout, which reduce reliance on operator skill.
| Magnetic table size | 300 x 600 |
| Maximum table feed | 310x650 mm |
| Maximum table load | 270 kg |
| Grinding wheel dimensions | 350 x 40 x 127 mm |
| Grinding wheel speed | 1450 rpm |
| Maximum distance spindle axis – table | 580 mm |
| Table travel speed | 7 - 25 m/min |
| Automatic cross feed | 0.1 - 8 mm |
| Rapid cross feed | 990 mm/min |
| Y-axis graduation | 0.02 mm |
| Z-axis graduation | 0.005 mm |
| Rapid vertical feed | 610 mm/min |
| Automatic vertical feed | 0.005 - 0.05 mm |
| Spindle motor power | 4 kW |
| Total motor power | 6.6 kW |
| Machine area incl. table travel | 2800 x 2085 x 2200 mm |
| Weight | 3200 kg |

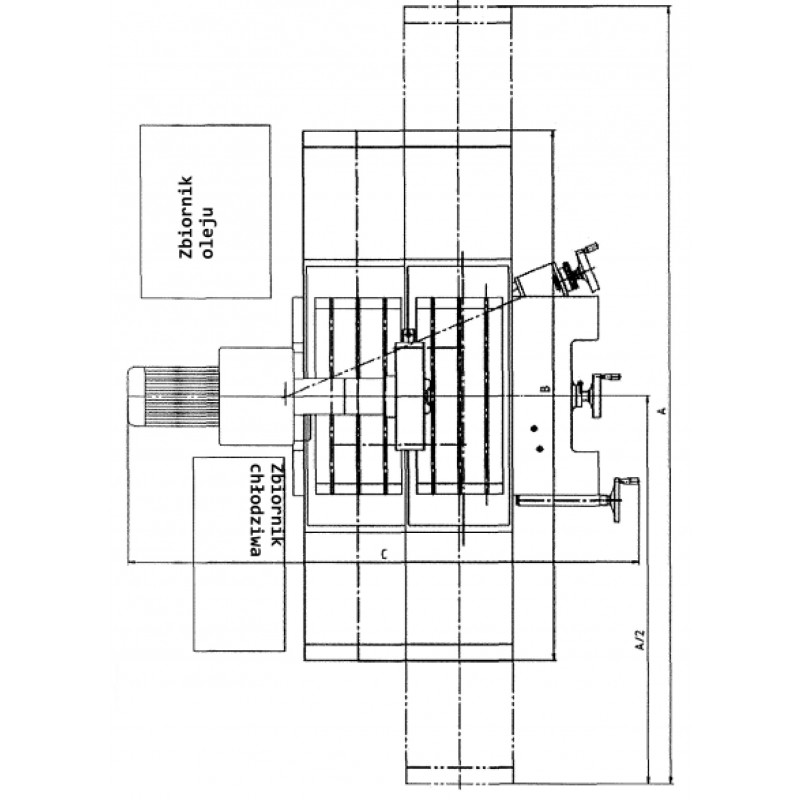

Limit position diagram
| A | B | C |
| 2800 mm | 2085 mm | 2200 mm |
Contact us to obtain a detailed offer for the 300x600 surface grinding machine. Our specialists will help you choose the optimal configuration tailored to your production facility’s requirements.
▶
