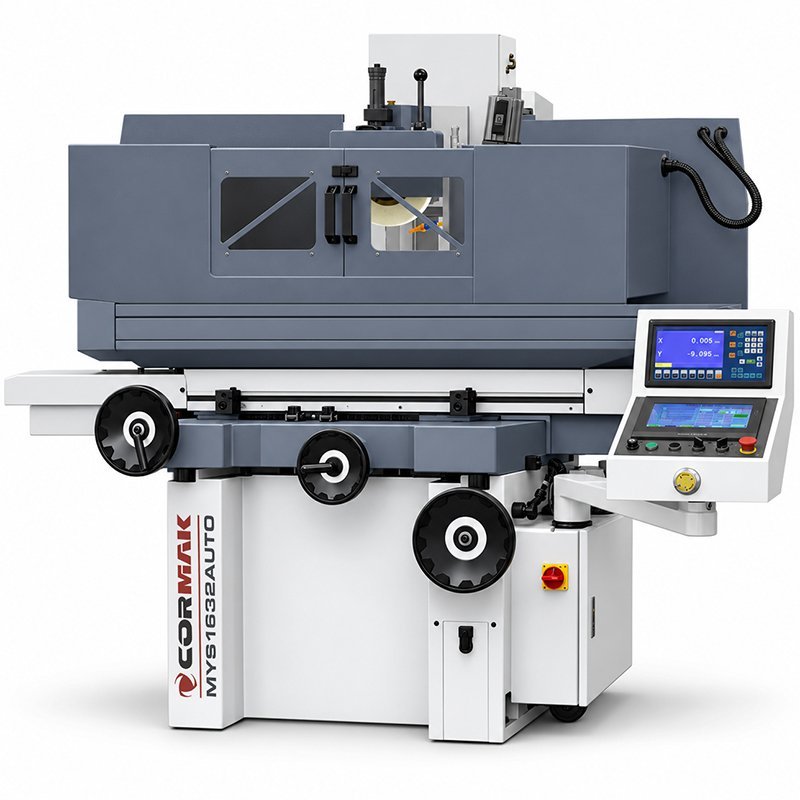

The MYS1632 AUTO surface grinding machine is a robust industrial machine for precise and repeatable grinding of flat surfaces. A large 915x400mm worktable, 800x400mm magnetic chuck and 4.0kW spindle motor provide stable machining, including for larger workpieces. Automatic vertical feed, hydraulic system and coolant system improve operating convenience and help achieve high-quality surface finishes.
The MYS1632 AUTO surface grinding machine is an industrial metal grinding machine designed for precision machining of flat surfaces in production facilities, toolrooms and maintenance departments. The 915x400mm worktable, 800x400mm magnetic chuck, 4.0kW spindle motor and vertical feed servo drive provide a configuration designed for precise and repeatable machining of workpieces.

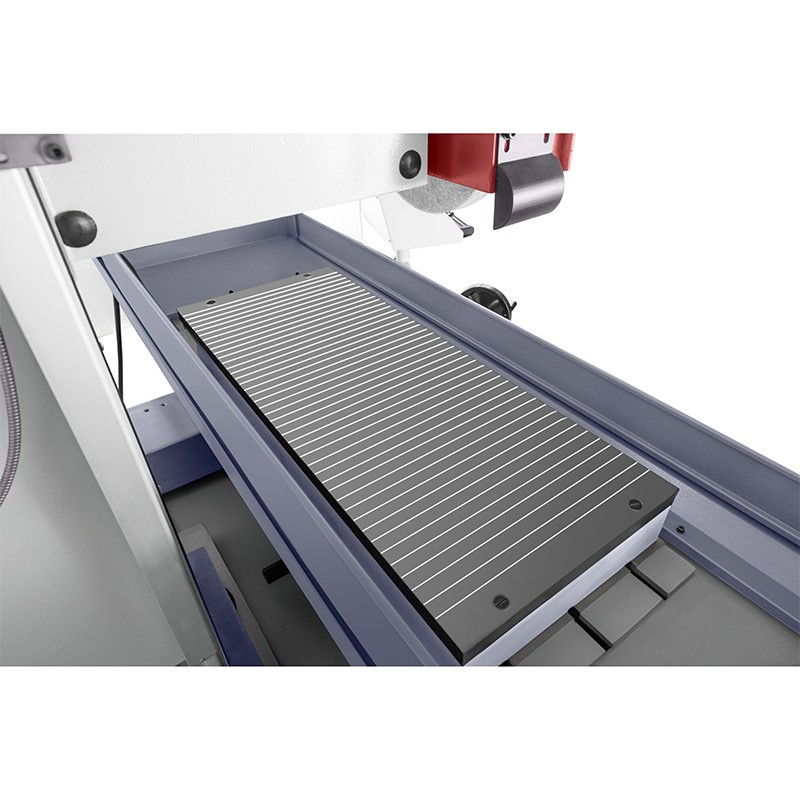

The MYS1632 AUTO model has been designed for grinding surfaces requiring precise table guidance and accurate control of the grinding wheel position. The worktable surface measures 915x400mm, while the maximum table travel is 760x480mm. The 800x400mm magnetic chuck provides a large clamping area for ferromagnetic workpieces during grinding.
The maximum distance between the table and the spindle axis is 525mm, while the distance between the magnetic chuck and the spindle axis is 440mm. These parameters allow workpieces of various heights to be machined and suitable tooling to be used.

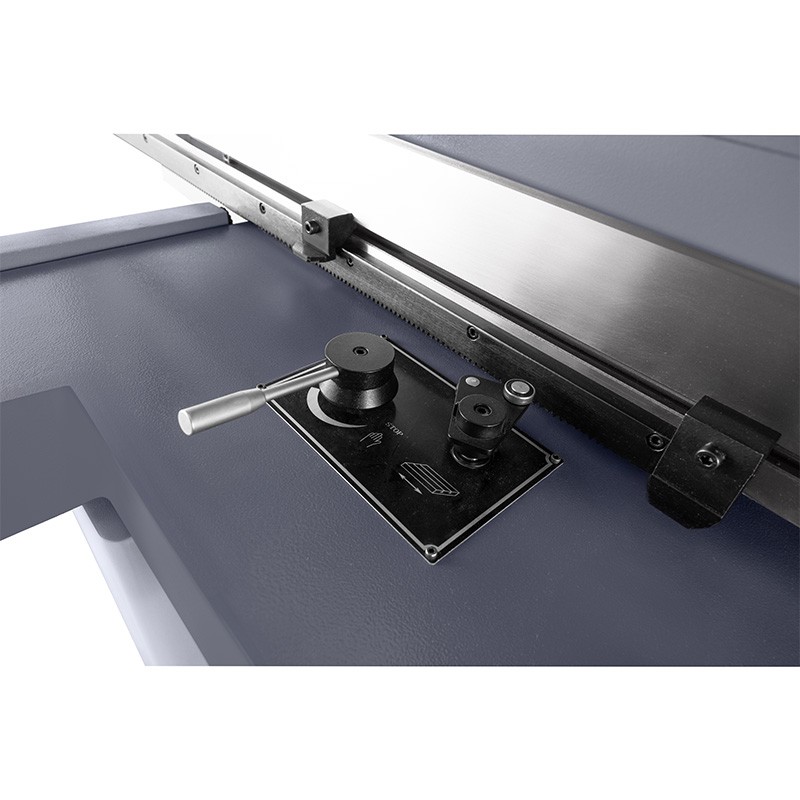

The cross-feed handwheel feed is 4mm/rev., with a graduation of 0.02mm, allowing precise control of the setting when preparing the grinding process.
Vertical feed is controlled using the MPG. The available movement values allow switching from positioning movements to precise infeed during finishing operations. The system is driven by a 0.75kW servo motor.
The grinding wheel is driven by a 4.0kW spindle motor. At a frequency of 50Hz, the wheel speed is 1450, and the grinding wheel used has dimensions of 350x127x40mm.
The coolant system assists in removing heat from the contact zone between the grinding wheel and the workpiece, reducing the influence of temperature on process conditions.

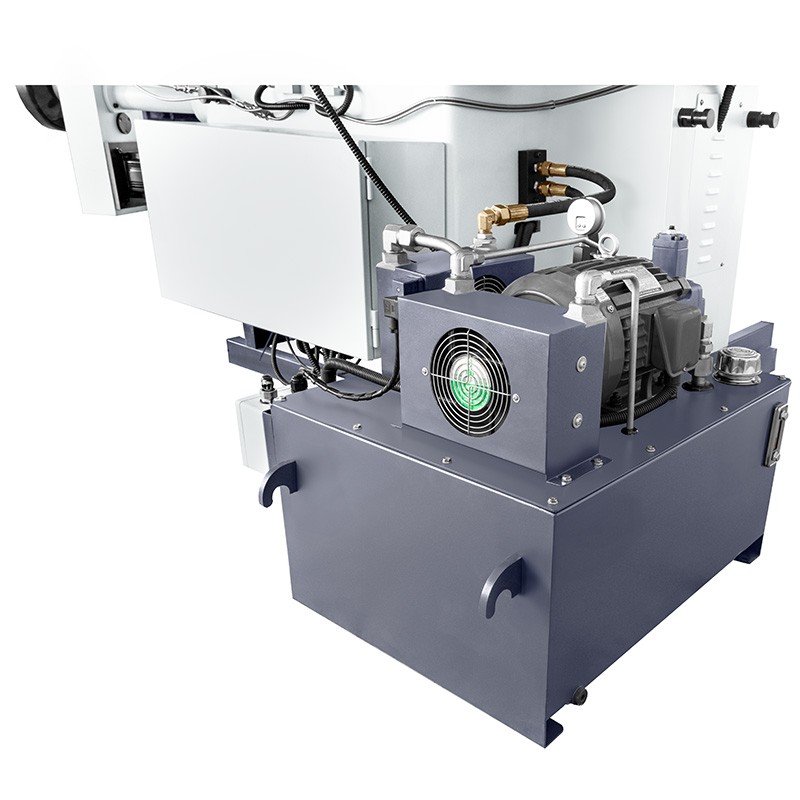

The MYS1632 AUTO magnetic surface grinding machine is equipped with a hydraulic power unit driven by a 2.2kW motor. The oil tank has a capacity of 80L, while the coolant pump has a power rating of 0.09kW.
MYS1632 AUTO is designed for metalworking facilities, toolrooms, single-part and series production, and maintenance departments. It can be used for grinding plates, machine parts, tooling components, reference surfaces, moulds and other workpieces requiring precise flat-surface finishing.
| Technical parameters | |
|---|---|
| TABLE DIMENSIONS | 915x400mm |
| MAX. TABLE TRAVEL | 860x440mm |
| MAGNETIC CHUCK SIZE | 800x400mm |
| MAX. DISTANCE BETWEEN TABLE AND SPINDLE AXIS | 525mm |
| MAX. DISTANCE BETWEEN MAGNETIC CHUCK AND SPINDLE AXIS | 440mm |
| CROSS-FEED HANDWHEEL FEED / GRADUATION | 4mm/rev., graduation 0.02mm |
| MPG VERTICAL FEED – GRADUATION | 001 / 0.01 / 0.1 |
| MPG VERTICAL FEED | 0.1 / 1 / 10mm/rev. |
| WHEEL SPEED (50Hz) | 1450 |
| WHEEL DIMENSIONS (OUTER DIA. x INNER DIA. x THICKNESS) | 350x127x40mm |
| SPINDLE MOTOR POWER | 4.0kW |
| VERTICAL FEED SERVO MOTOR | 0.75kW |
| HYDRAULIC POWER UNIT MOTOR | 2.2kW |
| OIL TANK CAPACITY | 80L |
| COOLANT PUMP | 0.09kW |
| MACHINE WEIGHT | 2720kg |
| MACHINE DIMENSIONS | 2.82 x 2.05 x 1.91m |
*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.
The combination of a 915x400mm table, 800x400mm magnetic chuck, 4.0kW spindle drive, hydraulic system and vertical servo drive makes the MYS1632 AUTO suitable for professional and repeatable grinding of flat surfaces. Contact a CORMAK advisor to select a grinding wheel and additional equipment suitable for the materials being machined and the requirements of the technological process.
