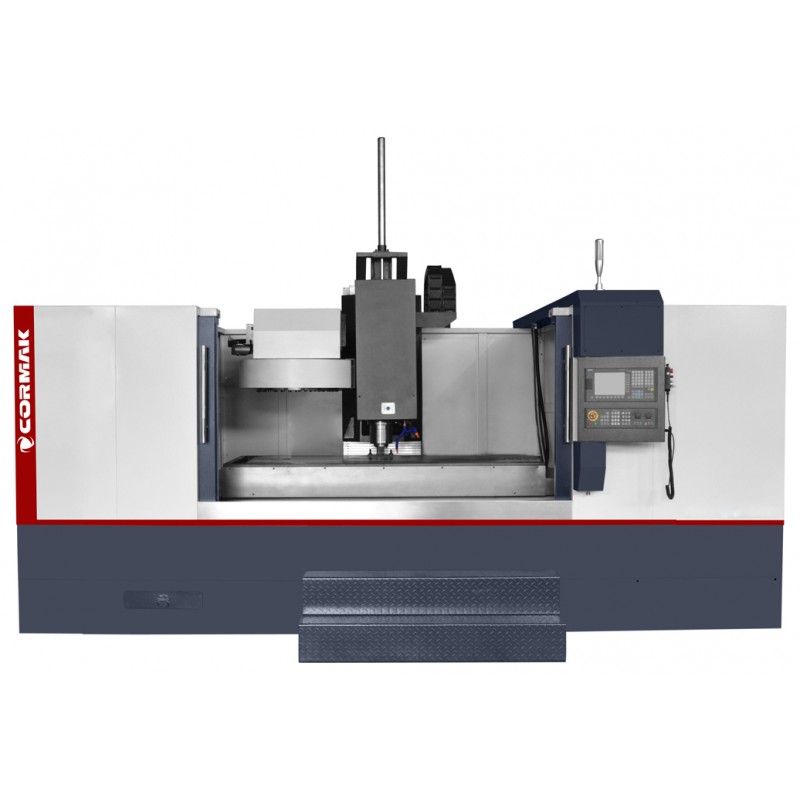

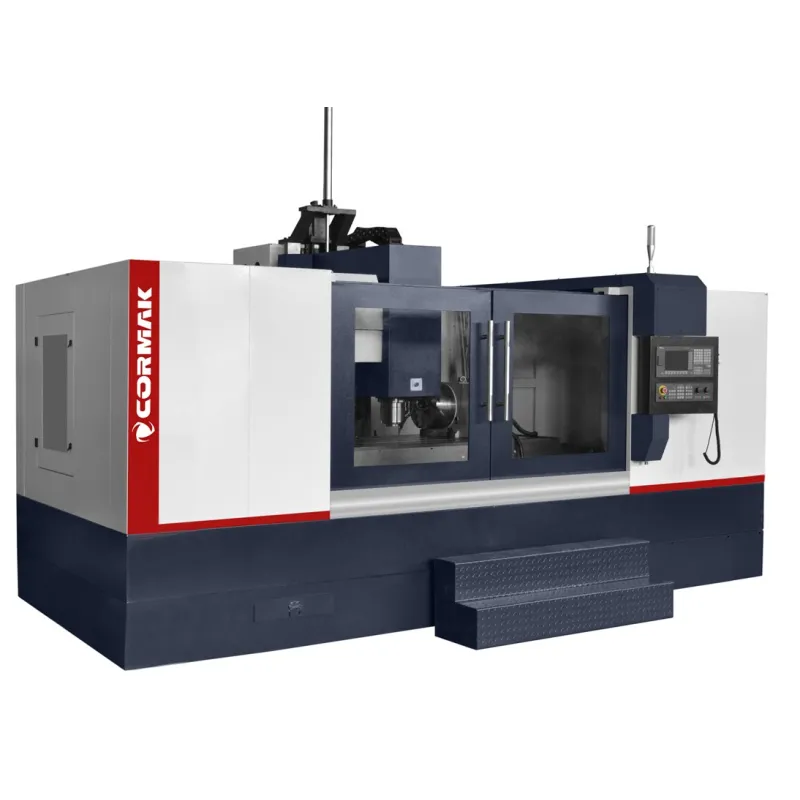

Our machining centre combines strength and advanced technology, built with high-quality components that ensure long-term, uninterrupted performance. Designed for efficient execution of multiple operations such as milling, drilling, tapping and reaming, this machine is an indispensable tool for your production line. Its ability to maintain high machining precision makes it an ideal choice for companies that value quality and reliability. Choose our MILL series to bring a new level of efficiency and precision to your manufacturing process.
• Highest-quality linear guides on all axes
• Four-track guide system on the machine base for heavy table loads
• Rigid cast-iron body with a wide layout of hardened and ground rectangular guideways
• Fully enclosed working area ensuring operator safety
• Maximum precision provided by ball screws on all three axes
Technical Specifications |
|
| Control system options | SIEMENS 808 ADVANCED |
| Table size | 1400×710 mm |
| T-slots | 5×22×135 mm |
| Maximum table load | 960 kg |
| Travel (X/Y/Z) | 1300×700×650 mm |
| Spindle-to-table distance | 200–900 mm |
| Spindle-to-column distance | 830 mm |
| Spindle taper | BT50 |
| Spindle speed | 100–8000 rpm |
| Spindle drive | Belt drive |
| Spindle motor power | 15 kW |
| Servo motor torque (X/Y/Z) | 22/22/22 N·m |
| Ball screws (diameter × pitch) X/Y/Z | 40×08 / 40×08 / 40×08 mm |
| Rapid feed rate (X/Y/Z) | 15/15/12 m/min |
| Cutting feed rate (X/Y/Z) | 8 m/min |
| Tool magazine capacity | BT50-24 |
| Maximum tool length | 300 mm |
| Number of tools | 24 |
| Maximum tool weight | 7.5 kg |
| Electrical supply | 25 kVA |
| Air pressure | 5–7 kgf/cm² |
| Positioning accuracy | ±0.01 mm |
| Machine dimensions | 3920×2800×2810 mm |
| Weight | 10,500 kg |
We offer professional CNC control systems from leading manufacturers Siemens and Fanuc, providing precision, efficiency and ease of operation. These solutions are ideal both for smaller workshops and demanding industrial applications.
Siemens Sinumerik 808D is a modern and economical CNC control system dedicated to basic class milling machines and lathes. It is designed for small and medium-sized enterprises and offers:
Sinumerik 828D is a professional CNC control system designed for machining centres and lathes requiring superior precision and performance. Key features include:
An excellent choice for companies seeking efficient and reliable CNC control for complex machining operations.
Fanuc Oi-TF is one of the most recognised CNC control systems for lathes, valued for reliability and simplicity. It is widely used in metalworking industries due to:
Choosing the right CNC control is key to achieving maximum efficiency and precision. Siemens Sinumerik 808D is ideal for standard tasks, Siemens Sinumerik 828D for more advanced applications, and Fanuc Oi-TF for stable and precise turning operations.
Contact us – we will help you select the CNC control best suited to your production needs.
