CNC Machining Centre MILL 530 is a modern, robustly built vertical milling machine designed for precise metal cutting operations. The machine has been developed for high performance, stability and accuracy, making it suitable for both single-piece and batch production.
CNC Machining Centre MILL 530 900×400 is a modern vertical milling machine designed for precise metalworking. The machine is equipped with G-CODE CNC control, ensuring full compatibility with CAD/CAM systems and easy programming of milling, drilling and tapping processes.
The rigid cast iron construction guarantees stable operation and high machining accuracy. 900 × 400 mm worktable, BT40 spindle up to 8000 rpm and 16-position tool magazine enable efficient single-piece and batch production.
CNC Centre MILL 530 is ideal for manufacturing plants, tool rooms and CNC workshops, offering reliability, precision and an excellent price-to-quality ratio.
CNC Machining Centre MILL 530 has been designed for maximum precision and durability. Key machine components include:
CNC machining centres, such as the MILL 530, combine advanced technology with a rigid construction, resulting in excellent metal cutting performance. High positioning accuracy (0.01 mm) and rapid traverse rates (14 m/min for X and Y, 11 m/min for Z) enable complex milling tasks to be completed in a short time. Thanks to advanced CNC control systems, the machine allows precise programming and optimisation of tool paths, reducing machining time and improving component quality.
Vertical machining centres such as the MILL 530 are used in various industrial sectors, including:
The machine is an excellent choice for production facilities requiring a reliable and versatile machining centre for processing metals and other materials.
| Travel range | |
| X axis | 450 mm |
| Y axis | 340 mm |
| Z axis | 400 mm |
| Distance from spindle nose to worktable | 10–470 mm |
| Distance from spindle centre to column guideway | 350 mm |
| Feed | |
| Rapid traverse X axis | power | torque | 14 m/min | 1 kW | 4.78 Nm |
| Rapid traverse Y axis | power | torque | 14 m/min | 1 kW | 4.78 Nm |
| Rapid traverse Z axis | power | torque | 11 m/min | 1.75 kW | 8.36 Nm |
| Worktable | |

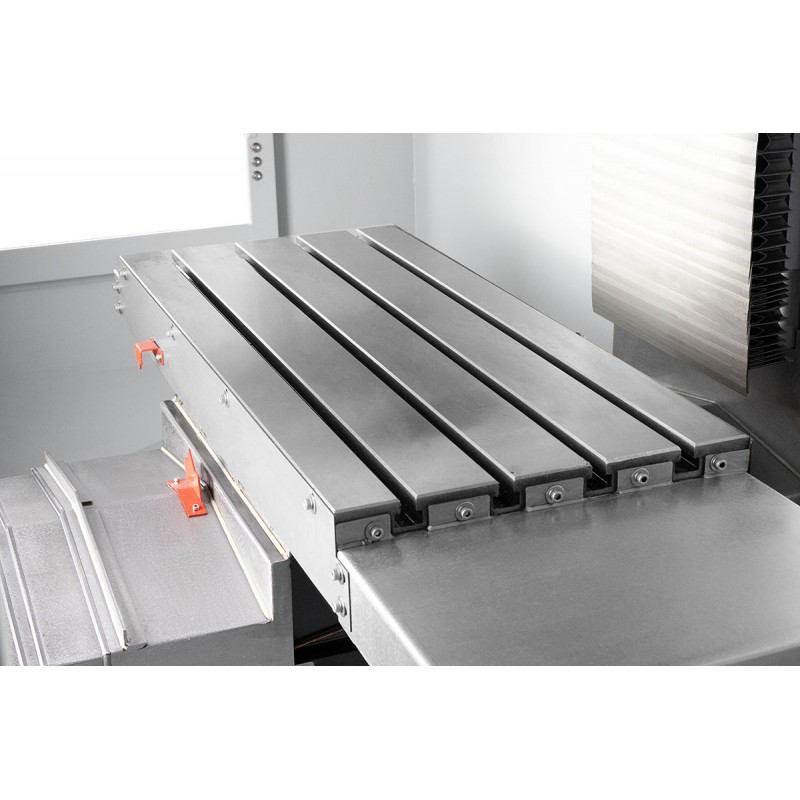

| Worktable surface | 900 x 400 mm |
| T-slot | 4–14 mm |
| Spindle | |
| Rotational speed | 100–8000 rpm (option 10000 rpm) |
| Spindle taper | BT40 |
| Coolant pump | 480W; 2.5-3.3m3/h |
| Main motor power | 3.7 kW |
| Tool magazine | |
| Max. tool diameter | 100 mm |
| Max. tool length | 300 mm |
| Max. tool weight | 7 kg |
| Tool change time | 2-5s |
| Other parameters | |
| Positioning accuracy | 0.01 mm |
| Dimensions (LxWxH) | 2100 x 2250 x 2600 mm |
| Weight | 1800 kg |
MILL 530 machining centres are equipped with professional control systems from renowned manufacturers Siemens, Fanuc and GSK. They provide precision, reliability and flexibility to meet various production requirements, from simple operations to complex machining processes.
Siemens Sinumerik 808D is a cost-effective CNC control dedicated to entry-level lathes and milling machines, ideal for small and medium-sized workshops. Its key features include:
The MILL 530 machining centre offers advanced CNC control systems such as SIEMENS SINUMERIK 808 Advanced, Siemens Sinumerik 828D, and Fanuc Oi-TF, ensuring precision, reliability and ease of operation:
Download Siemens Sinumerik 828/840 manual
Download SIEMENS SINUMERIK 808 Advanced manual
With over 20 years of experience in supplying industrial machinery, CORMAK offers reliable solutions for industry. Our machining centres are designed to meet the highest quality and safety standards, confirmed by European certifications. We provide professional warranty and post-warranty service as well as technical support at every stage of machine operation.
Contact us to learn more about the MILL 530 vertical machining centre and adapt the machine to your plant’s requirements. Our specialists will help you choose the appropriate control system and optional equipment to optimise your production processes. Contact us!
