The Dual-Column Bandsaw CORMAK H65/80 is a technologically advanced machine designed for cutting solid materials and steel, cast iron, and non-ferrous metal profiles. With its rigid dual-column structure and precise linear blade guidance, it ensures maximum accuracy, repeatability, and high cutting performance. This semi-automatic bandsaw is built for heavy-duty industrial applications.
The Dual-Column Bandsaw CORMAK H65/80 is a technologically advanced machine designed for cutting solid materials and steel, cast iron, and non-ferrous metal profiles. Its rigid dual-column construction and precise linear blade guidance guarantee maximum accuracy, repeatability, and performance. This semi-automatic metal bandsaw has been engineered for intensive operation under industrial conditions.
The machine operates in a semi-automatic cycle – after pressing the start button, the material is clamped, the blade starts, the arm lowers smoothly, stops automatically after the cut, and returns to the preset position. The operator only feeds the material to the stop. In case of blade breakage, the CORMAK H65/80 metal bandsaw automatically stops operation, protecting the components from damage.

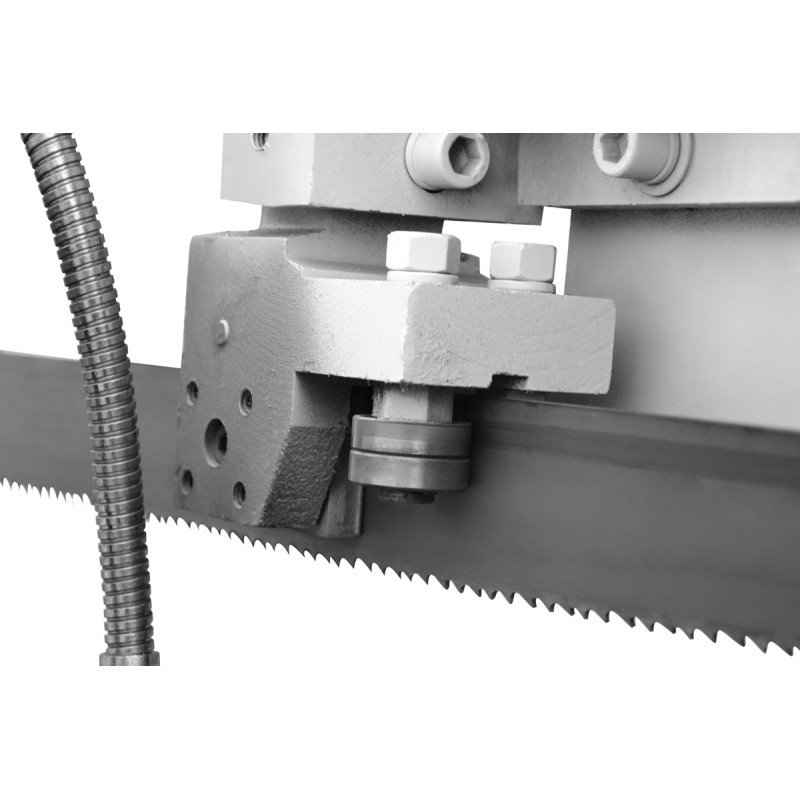

Four cutting speed ranges (40/45/65/76 m/min) allow optimal adjustment to the material being processed. The 54 mm wide cutting blade provides excellent stability and precision even for large cross-sections. The cooling system and wire brush effectively remove chips and extend blade life.
This machine is designed for production plants, fabrication workshops, and machining centres requiring high precision and repeatability. The CORMAK H65/80 is ideal for cutting pipes and profiles, solid materials, stainless steel, and non-ferrous metals.
| Blade speed | 40 / 45 / 65 / 76 m/min |
| Maximum cutting range | Ø 650 mm | 800 × 650 mm |
| Table height | 600 mm |
| Blade dimensions | 7400 × 54 × 1.6 mm |
| Blade cleaning system | wire brush + coolant |
| Vice clamping and blade tension | hydraulic |
| Total power | 9 kW / 400 V |
| Hydraulic motor power | 1.5 kW |
| Coolant pump power | 0.125 kW |
| Machine weight | 3200 kg |
| Dimensions | 3450 × 1550 × 2380 mm |
