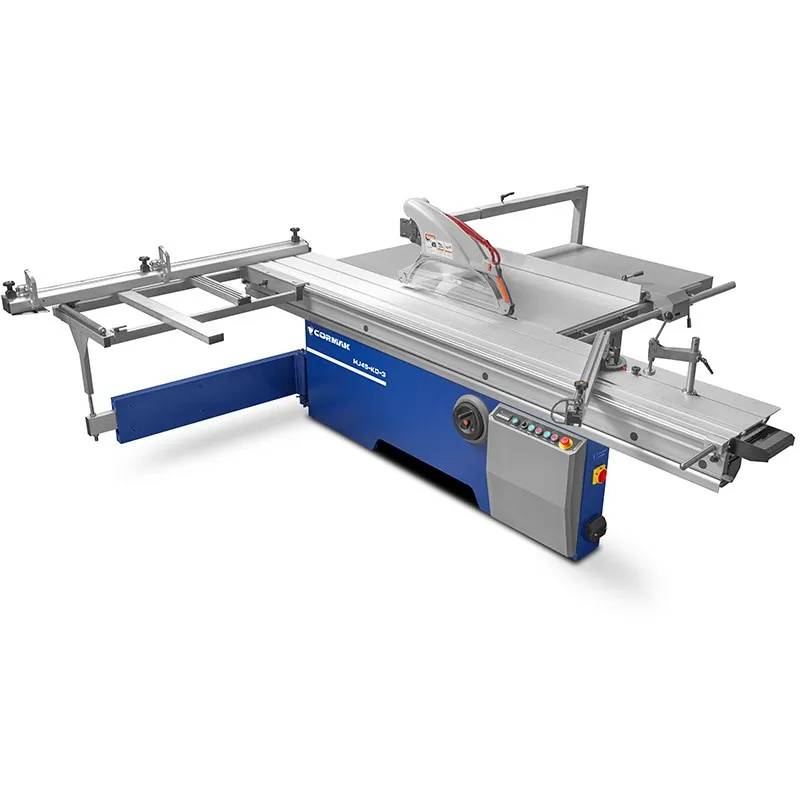

The Panelsaw CORMAK MJ45-KD3 is a precise panelsaw with scoring unit designed for professional cutting of MDF, HDF, ABS, PVC and solid wood panels with a maximum format of 3200×2800 mm. The machine features an electric lifting and lowering system for the cutting unit and a reliable “Kacperek” motor ensuring durability, smooth operation and accuracy with every cut.
The Panelsaw CORMAK MJ45-KD3 is a high-performance panelsaw for accurate cutting of MDF, HDF, chipboard, laminated boards, ABS, PVC and solid wood. With an integrated scoring blade and large sliding table, the machine guarantees clean, chip-free cutting. It is an excellent solution for furniture manufacturers, joinery workshops and woodworking companies that require high efficiency and repeatable precision in daily production.
The design of the CORMAK MJ45-KD3 Panelsaw was developed for industrial use and long-term durability. The machine is built on a rigid steel frame that absorbs vibration and increases cutting accuracy. The cutting unit supports Ø250–350 mm blades and works together with a precise Ø125 mm scoring blade, offering versatility and precision. High-quality components ensure reliability during long-term operation and easy maintenance.
The CORMAK MJ45-KD3 Panelsaw with scoring unit guarantees clean, accurate and repeatable cuts thanks to its precision table guide and high spindle speeds – up to 4800 rpm on the main blade and 7500 rpm on the scoring blade. The maximum cutting height of 100 mm allows processing of thicker materials, greatly expanding its applications.
The MJ45-KD3 is a universal panelsaw ideal for:
This professional panelsaw combines precision, reliability and operator safety for continuous industrial use.
*The price quoted refers to the machine only, excluding optional/additional accessories, installation, transport and training — please contact our consultant for more details.
| Technical Specifications | |
| Blade diameter / bore | 350 / 30 mm |
| Blade tilt range | 0 – 45° |
| Blade speed | 2800 / 4000 / 4800 rpm |
| Scoring blade diameter / bore | 125 / 20 mm |
| Scoring blade speed | 7500 rpm |
| Main table dimensions | 945 × 720 mm |
| Sliding table dimensions | 3200 × 420 mm |
| Maximum cutting height | 100 mm |
| Cutting width at rip fence | 1250 mm |
| Crosscut capacity at cross fence | 3200 mm |
| Under-table extraction port | Ø100 mm |
| Upper guard extraction port | Ø80 mm |
| Minimum air speed | 20 m/s |
| Minimum air flow | 565 mm³/h |
| Main motor power | S1/S6 5.5 kW / 9 HP |
| Scoring motor power | S1/S6 1.1 kW / 1.8 HP |
| Weight | 850 kg |
Order your CORMAK MJ45-KD3 Panelsaw today and enhance precision and productivity in your workshop. Contact our technical consultant for a configuration tailored to your needs.
