Sliding Panelsaw CORMAK MJ45-KB4 – 2600 with Scoring Unit

Sliding Panelsaw with Scoring Unit CORMAK MJ45-KB4 – precise cutting of wood-based materials

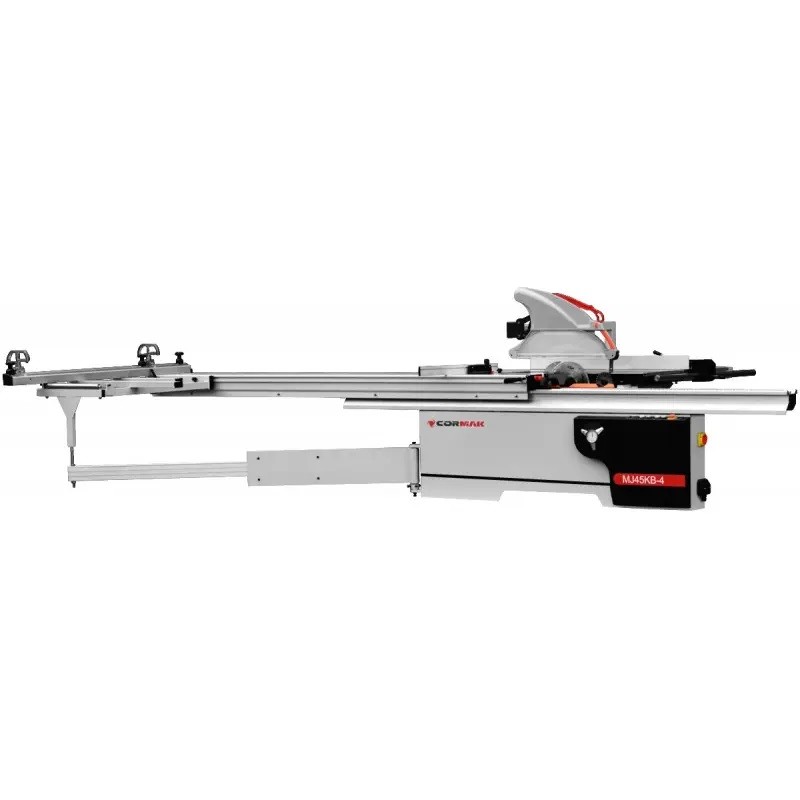

Sliding Panelsaw CORMAK MJ45-KB4 is an industrial sliding panelsaw with a scoring unit, designed for accurate cutting of furniture boards, plywood and other wood-based materials. The 2600 mm sliding table and rigid structure ensure repeatability and high-quality cuts.

Main machine features

• Scoring unit with an independent drive – eliminates chipping on laminates and veneers.
• Aluminium sliding carriage running on hardened rod guides – stability and smooth motion.
• 2600 mm sliding table – precise handling of large and heavy boards.
• 5.5 kW main motor – consistent cutting performance during continuous operation.
• Tilting range 0–45° – flexibility for angled panel cutting.
• Telescopic fence up to 3100 mm – fast, repeatable settings.
• Spindle speeds 4000/6000 rpm (main saw) and 8000 rpm (scoring blade) – optimal settings for every material.
• Cast iron frame – vibration damping and stable cutting geometry.

Construction and technology

The structure is based on a torsion-resistant cast iron body, stabilising the saw unit and minimising vibration. The aluminium carriage runs on hardened steel rods, ensuring long-term cutting precision. The outrigger table facilitates the handling of large workpieces without additional supports. The adjustment mechanisms with clear indicators (including an angle gauge on the handwheel) allow quick and accurate setup.

Precision and efficiency

The MJ45-KB4 Sliding Panelsaw ensures clean edges thanks to the 125 × 20 mm scoring blade and stable geometry. The cutting height range of up to 90 mm at 90° and 65 mm at 45° allows for processing a wide variety of materials and thicknesses. The two main blade speeds allow optimal adjustment to the material type, maintaining dimensional repeatability and reducing the need for rework.

Applications

This machine is intended for workshops and production plants seeking a stable sliding panelsaw with scoring unit for serial cutting of furniture and structural elements. It meets the needs of facilities where quality, dimensional accuracy and reliability in continuous operation are priorities.

Standard equipment

• Scoring unit with independent drive
• 2600 mm sliding table on rod guides
• Angle indicator on handwheel
• Telescopic fence up to 3100 mm (front/rear mounting on support table)
• User manual
• CE Declaration

Optional equipment*

• set of saw blades for wood and laminate
• dust extraction and chip collection systems
• panel transport trolley

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.

Technical specifications
