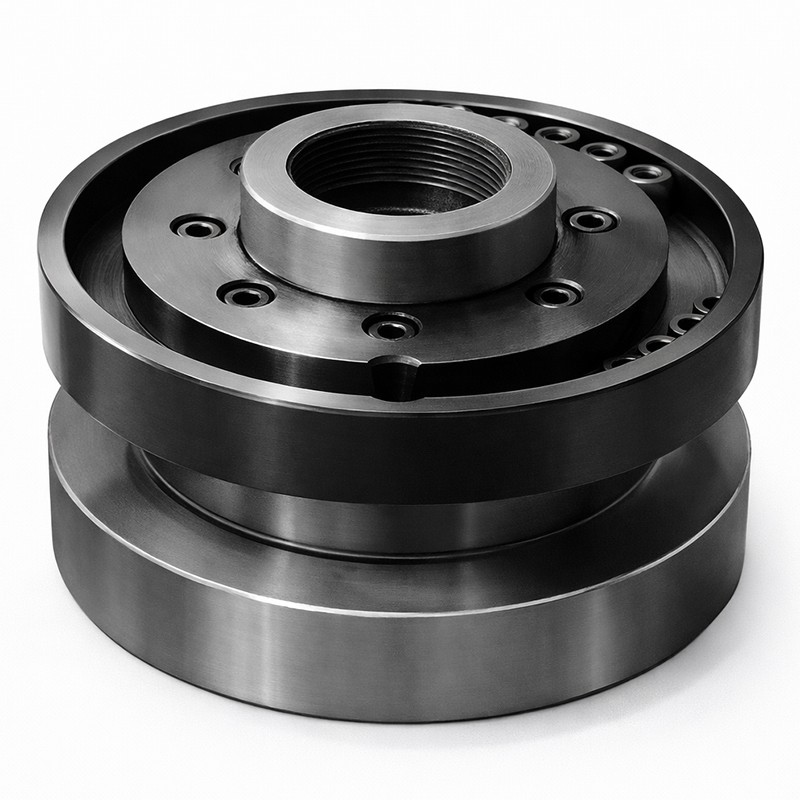

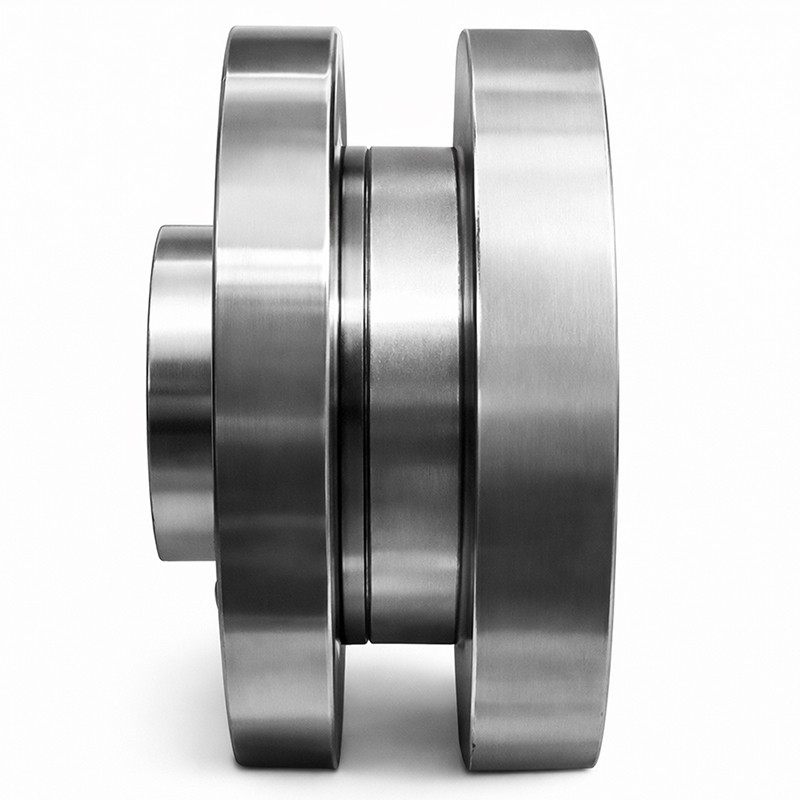

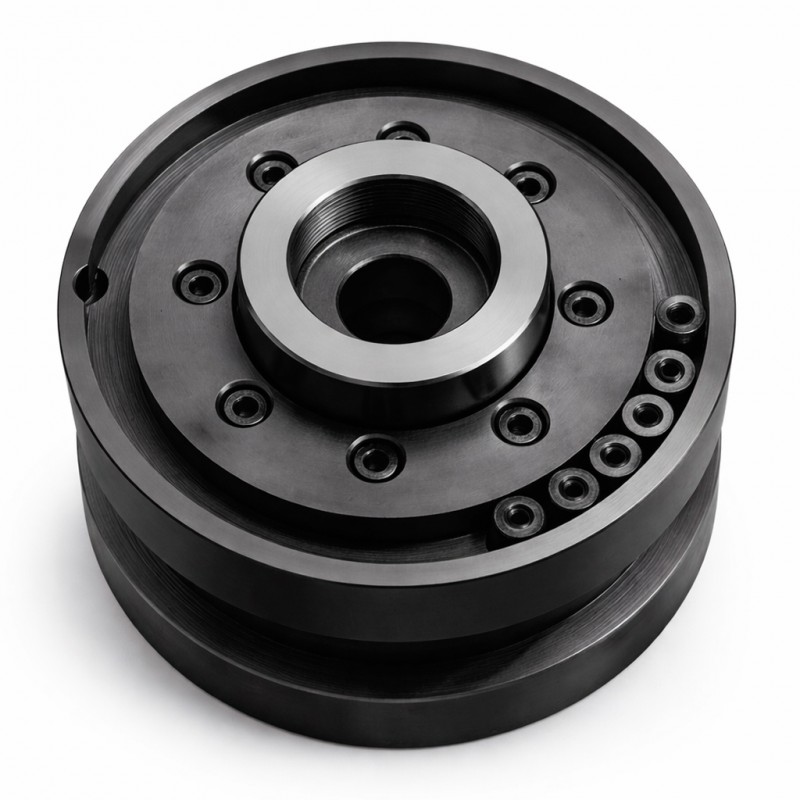

The grinding wheel driving disc (grinding wheel flange) with a diameter of 350mm is key optional* and consumable equipment for surface grinders. It is designed for stable and secure mounting of grinding wheels, ensuring machining precision and eliminating vibration during operation.
Thanks to the integrated balancing system, the flange enables precise static balancing of the wheel before grinding, which directly contributes to a smoother machined surface and extends the service life of the machine spindle.
Precision manufacture: Made of high-quality steel resistant to deformation and dynamic loads.
Balancing system: Features special grooves and balancing weights for precise balancing of the grinding wheel.
Operational safety: Full mounting stability of the grinding wheels eliminates axial and radial runout.
Easy installation: Facilitates quick grinding wheel replacement and reduces workstation preparation time.
Maximum grinding wheel outside diameter: 350mm
Grinding wheel inside diameter (bore): 127mm
Minimum grinding wheel thickness: 30mm
Maximum grinding wheel thickness: 40mm
Application: Surface grinders (e.g. models with a 350x40x127mm grinding wheel)
Using additional grinding wheel flanges (driving discs) significantly speeds up work in a workshop or production facility. It allows different types of grinding wheels (with different grit sizes and hardness levels) to be kept ready for immediate installation on the machine, without the need for repeated, time-consuming removal and rebalancing of the grinding wheel itself.
