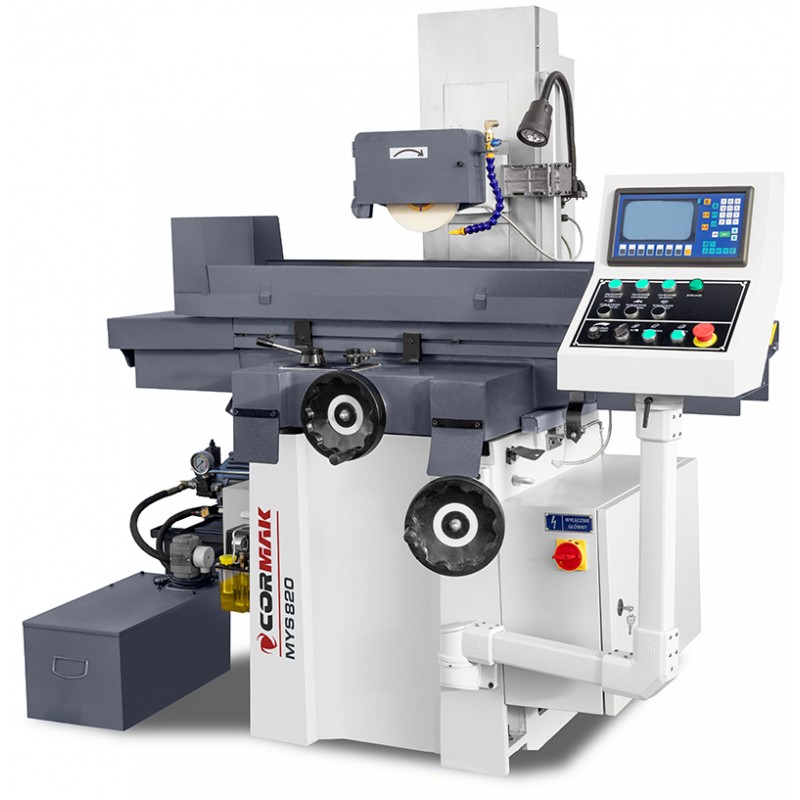

Magnetic Surface Grinder CORMAK 200x480 MYS820 is a precision machine for grinding small and medium-sized metal components in workshops and industrial facilities. Equipped with a 400 × 200mm magnetic table, automatic feed on two axes and a digital readout, it delivers accurate, repeatable surface grinding. Its substantial 800kg construction reduces vibration, while the 1.1kW motor operates with a 200 × 19 × 32mm grinding wheel. Compact dimensions make the machine easy to accommodate even in smaller workshops. The integrated cooling system and extensive standard equipment improve convenience and functionality in everyday operation.
Magnetic Surface Grinder CORMAK 200x480 MYS820 – Compact Precision for Industrial Applications
The Magnetic Surface Grinder CORMAK 200x480 MYS820 is an advanced machine designed for precision grinding of small and medium-sized metal components. Its compact construction and modern technology ensure high machining accuracy and reliable operation in industrial environments.
The Magnetic Surface Grinder CORMAK 200x480 MYS820 is an ideal solution for industrial facilities requiring precision grinding in a compact machine. Designed for professional applications, it combines advanced technology, including automatic feed on two axes and precision guideways, with robust construction to ensure reliability and efficiency. Its compact dimensions (1,680 × 1,140 × 1,800mm) and weight of 800kg make it an excellent choice for smaller workshops and facilities with limited space. Key benefits include:
The Magnetic Surface Grinder CORMAK 200x480 MYS820 features a heavy-duty construction weighing 800kg, providing stability during machining. Hardened and ground linear guideways eliminate vibration, ensuring smooth table movement and high surface finish quality. The spindle, driven by a 1.1kW motor, operates with a grinding wheel measuring 200 × 19 × 32mm.

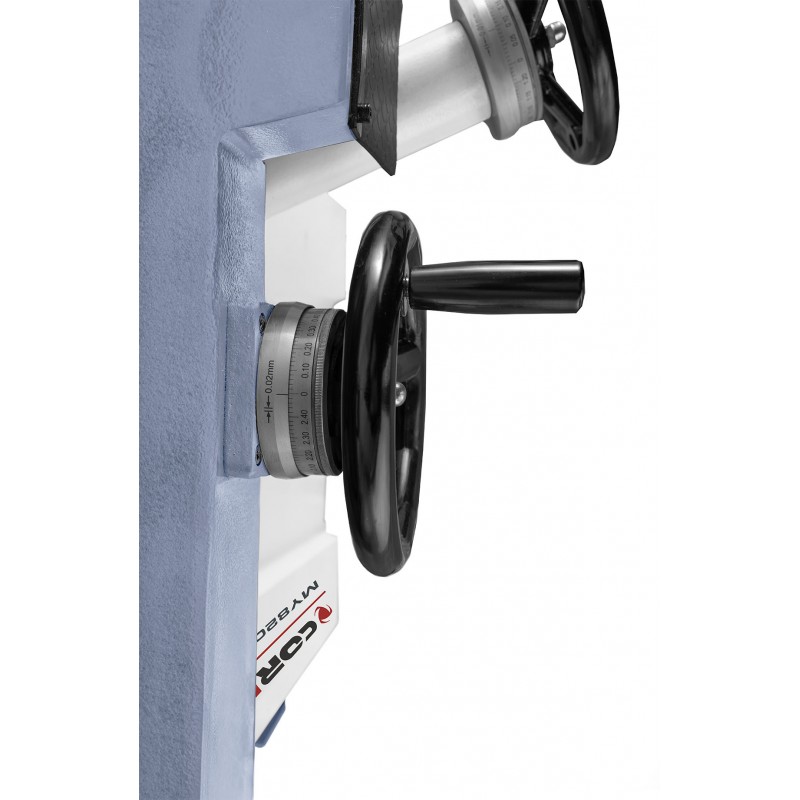

The machine is equipped with automatic feed on two axes, with a maximum longitudinal travel of 530mm and transverse travel of 220mm. The precise transverse feed per revolution is 2.5mm, while the vertical feed is 1.25mm.

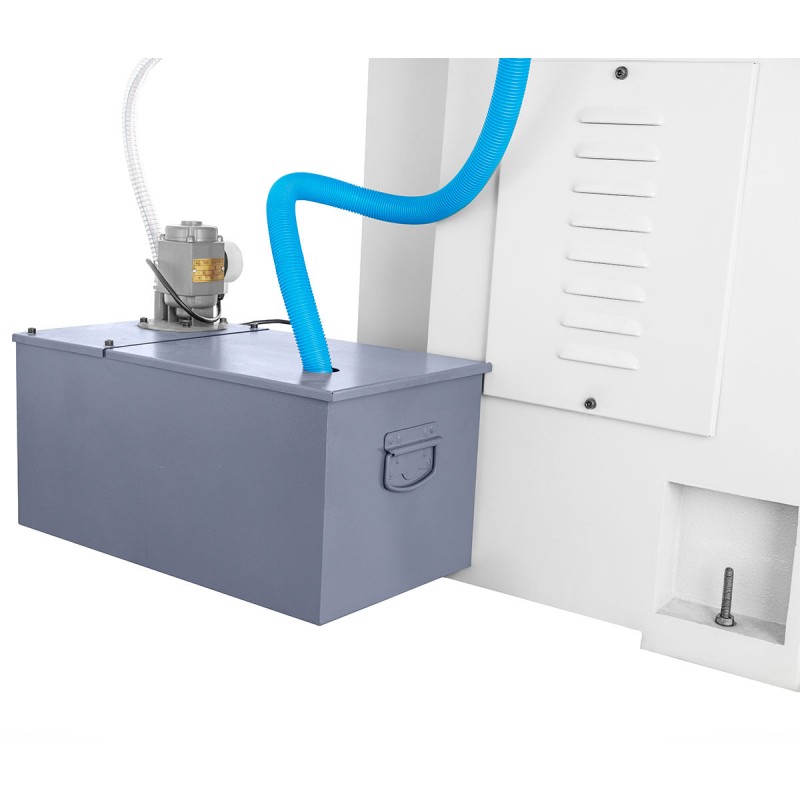

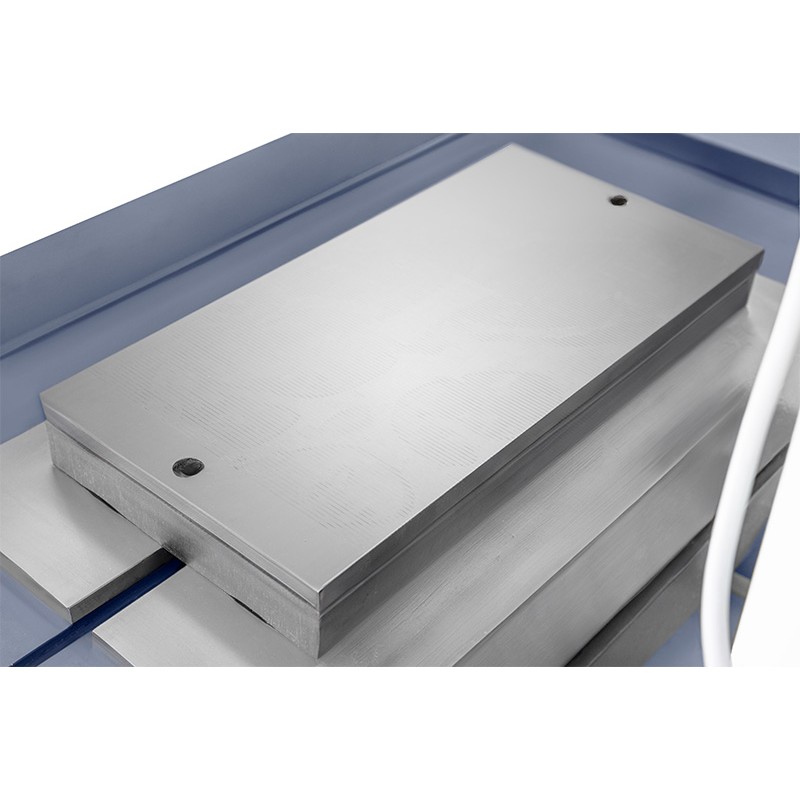

The magnetic surface grinder features an efficient cooling system that protects the workpiece and grinding wheel against overheating. The magnetic table measuring 400 × 200mm ensures secure workpiece clamping.
The Magnetic Surface Grinder CORMAK 200x480 MYS820 delivers a high-quality surface finish through precise feed control and stable construction. The maximum spindle-to-table distance of 490mm enables the machining of workpieces of various sizes.
The Magnetic Surface Grinder CORMAK 200x480 MYS820 is designed for industrial facilities requiring precision grinding of small and medium-sized components. It is suitable for:
|
Technical Parameters |
|
|---|---|
| TABLE DIMENSIONS | 400 × 200mm |
| MAXIMUM LONGITUDINAL TRAVEL | 530mm |
| MAXIMUM TRANSVERSE TRAVEL | 220mm |
| SPINDLE-TO-TABLE DISTANCE | 490mm |
| GRINDING WHEEL | 200 × 19 × 32mm |
| MANUAL TRANSVERSE FEED | 2.5mm/rev |
| MANUAL VERTICAL FEED | 1.25mm/rev |
| SPINDLE SPEED | 2,850rpm |
| MOTOR POWER | 1.1kW |
| MACHINE DIMENSIONS | 1,680 × 1,140 × 1,800mm |
| WEIGHT | 800kg |
Increase your production efficiency with the Magnetic Surface Grinder CORMAK 200x480 MYS820. Contact us for a detailed quotation or to arrange a machine demonstration. Choose precision and reliability – choose CORMAK surface grinders!
▶
