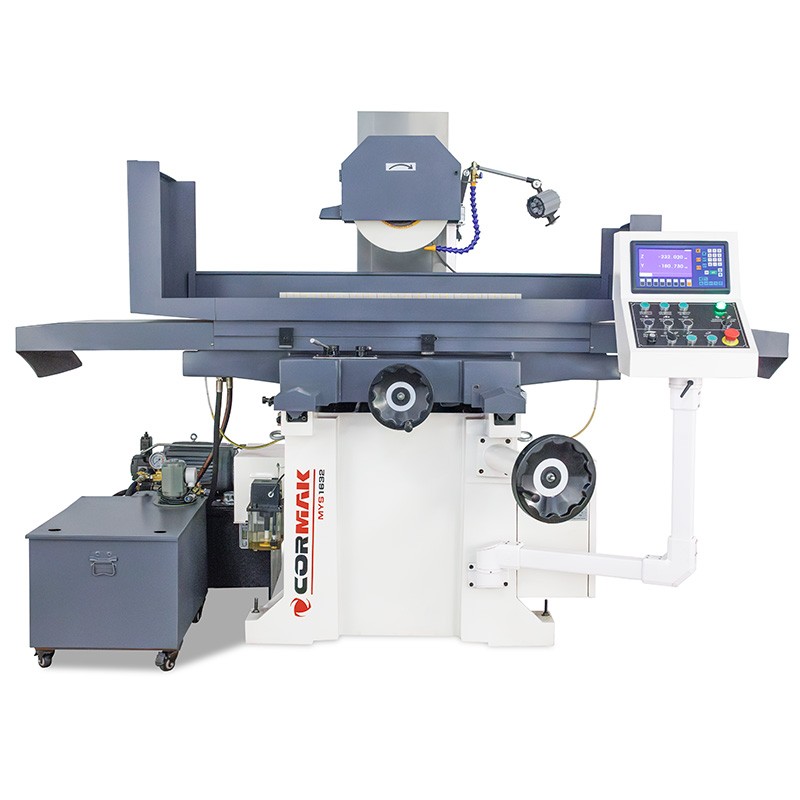

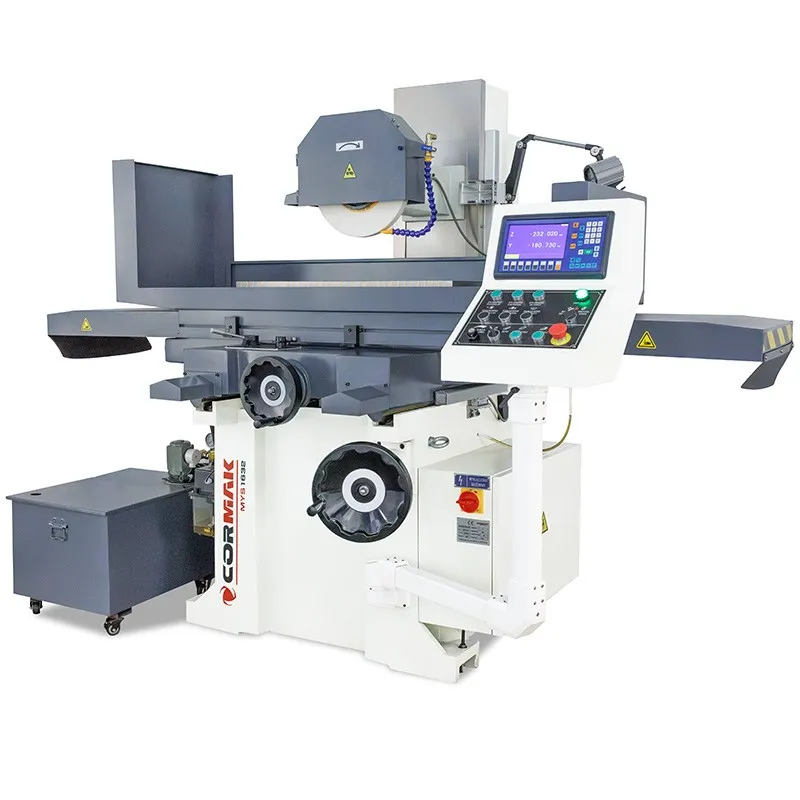

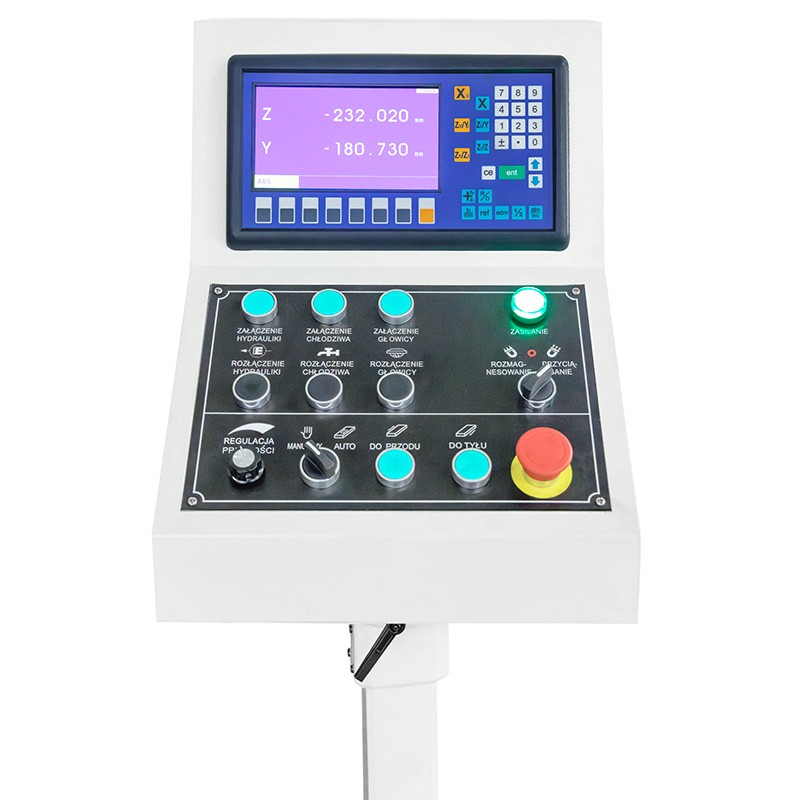

Our Surface Grinding Machine 800x400 is the perfect tool for continuous operation in production, toolrooms, and maintenance departments. Its modern and rigid construction makes it ideal for intensive production environments. The spindle head operates on two pairs of guideways, ensuring precise and reliable grinding. In addition, hydraulic feeds for two axes and a standard digital readout make your work more efficient and precise. Choose the MYS 1632 to experience modernity, stability, and excellent results in every application.
Surface Grinding Machine 800x400 is an advanced device designed for precision grinding of medium and large metal surfaces. Its robust construction and modern technological solutions ensure high machining accuracy and reliability under demanding production conditions.
The magnetic surface grinder 800x400 is a dependable solution for industrial facilities requiring precise machining while maintaining high productivity. Designed for professionals, it combines advanced technologies with a solid structure to meet the most demanding challenges. Key benefits include:

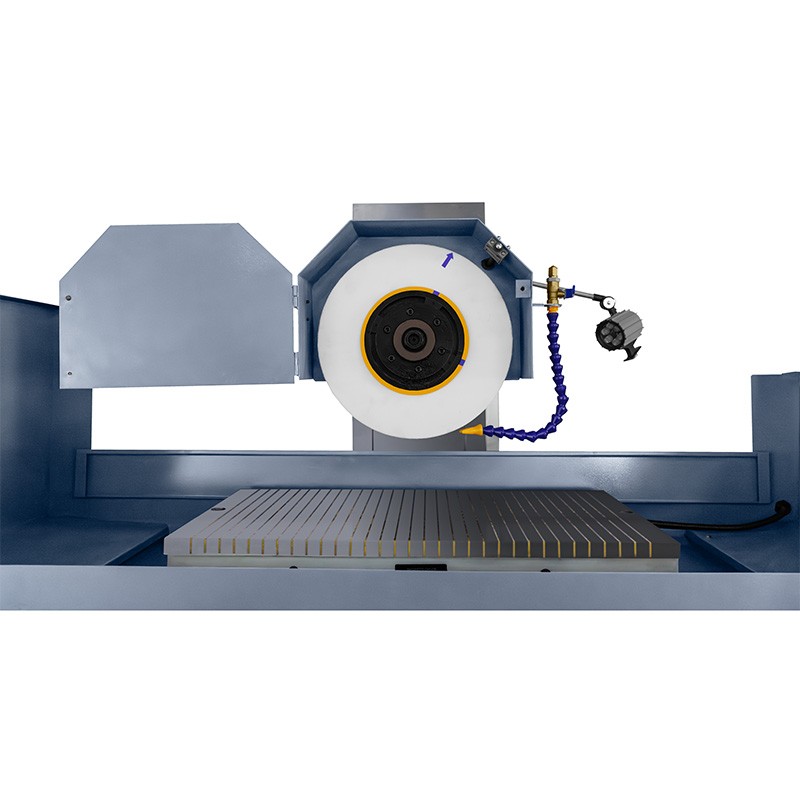

The Surface Grinding Machine 800x400 features a rigid 1800 kg structure that ensures stability when machining various materials. Hardened and ground linear guideways eliminate vibration, providing smooth table movement and high-quality surface finish. The spindle, powered by a 4 kW motor, operates with a 300x30x76.2 mm grinding wheel, allowing efficient material removal.
The machine is equipped with a two-axis hydraulic feed system, with a longitudinal table speed range of 3–20 m/min and crossfeed up to 600 mm/min. The precise crossfeed per vernier division is 0.01 mm, enabling accurate machining parameter settings.
The magnetic surface grinder is fitted with an efficient cooling system driven by a 40 W motor, which effectively prevents overheating of both the workpiece and the grinding wheel. The magnetic table provides secure clamping, ensuring safety and precision during operation.
The Surface Grinding Machine 800x400 guarantees excellent surface finish due to precise feed control and a stable design. With grinding accuracy of 300:0.005 mm and surface roughness Ra 0.32, this machine is ideal for producing precision components such as tools, injection moulds, and machine parts. The maximum table feed (800x415 mm) and spindle-to-table distance (600 mm) offer flexibility for machining various component sizes.
The Surface Grinding Machine 800x400 is used in industrial plants requiring precision machining of medium and large components. It is ideal for:
| Table dimensions | 800x400 mm |
| Maximum table feed | 800x415 mm |
| Distance from table surface to spindle centre | 600 mm |
| Table T-slot | 1x14 mm |
| Longitudinal table speed | 3–20 m/min |
| Rapid vertical feed speed | 360 mm/min |
| Crossfeed per vernier division | 0.01 mm |
| Crossfeed per handwheel revolution | 2 mm |
| Crossfeed addition | 0–8 mm/min |
| Crossfeed speed | 600 mm/min |
| Grinding wheel size | 300x30x76.2 mm |
| Grinding wheel speed | 2850 rpm |
| Manual vertical feed per vernier division | 0.01 mm |
| Grinding accuracy | 300:0.005 mm |
| Surface roughness | Ra 0.32 |
| Manual vertical feed per revolution | 2 mm |
| Main motor power | 4 kW |
| Hydraulic power unit motor | 2.2 kW |
| Coolant pump motor power | 40 W |
| Machine dimensions | 1960x1480x1850 mm |
| Machine weight | 1800 kg |
