Professional three-roll machine RM-2550/150 with an asymmetric roll arrangement is designed for the production of cylindrical and conical forms of various diameters. This model is intended for bending sheet metal up to 6 mm thick and up to 2550 mm wide. The diameter of the top roll is 150 mm. Mechanical plate rolling machines of the RM series are ideal for workshops as well as craft and medium-batch production.

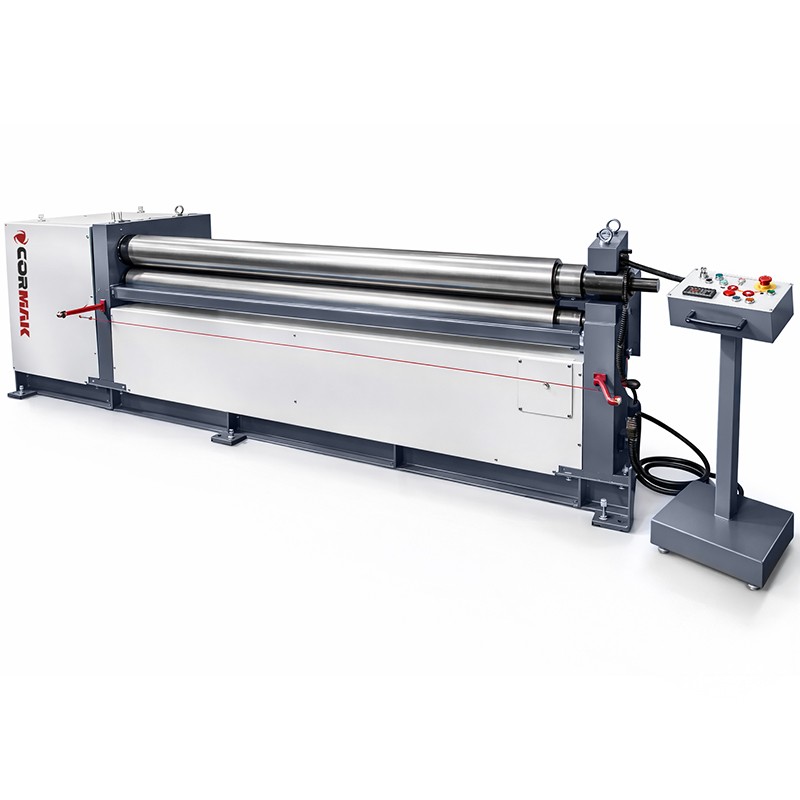

Sheet Metal Rolling Machine CORMAK RM 2550x6 is an industrial three-roll machine designed for precise rolling of sheet metal up to 2550 mm in length and up to 6.0 mm in thickness. This model has been developed for intensive use in production facilities where structural rigidity, high torque and repeatability of the bending process are essential.
Thanks to rolls with a large diameter of 190 mm and a powerful 5.5 kW drive, the rolling machine ensures stable operation when processing structural steel, enabling both cylindrical and conical bending.
Plate rolling machines in the industrial class must combine high load capacity, precise material guidance and an efficient drive system. The RM 2550x6 model meets these requirements thanks to the optimised roll system design and appropriately selected operating parameters.
The machine weight of approx. 3352 kg confirms the solid frame construction. High rigidity reduces vibration and ensures repeatability of parameters even at maximum working capacity.

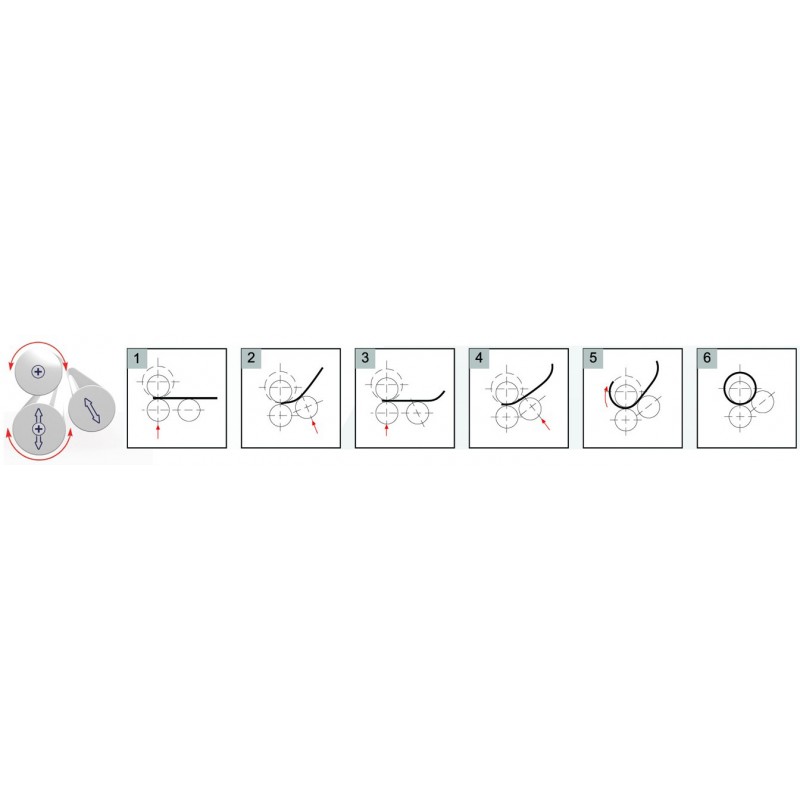

The three-roll bending system based on rolls with a diameter of 190 mm enables even distribution of pressure forces. The top roll is tilting, facilitating removal of the finished workpiece. Motorised adjustment of the rear roll allows fast and precise setting of bending parameters.
The main motor with a power of 5.5 kW provides sufficient torque for working with thicker sheets. A mobile foot pedal enables change of rotation direction (left/right), increasing ergonomics and control over the process.
The large roll diameter and stable drive minimise the risk of unwanted deformation and edge waviness. The possibility of cone bending (device included as standard) extends production capabilities to non-standard elements and special structures.
| Parameter | Value |
|---|---|
| Working length | 2550 mm |
| Max. sheet thickness | 6.0 mm |
| Pre-bending | 5.0 mm |
| Roll diameter | 190 mm |
| Minimum bending diameter | 290 mm |
| Roll rotational speed | 9 rpm |
| Width | 4020 mm |
| Depth | 1410 mm |
| Height | 1170 mm |
| Main motor power | 5.5 kW |
| Rear roll motor power | 2.2 kW |
| Weight (approx.) | 3352 kg |
Sheet Metal Rolling Machine CORMAK RM 2550x6 is a solution for companies expecting high performance, structural stability and precise control of the rolling process. Contact us to receive a detailed offer and adapt the machine to your production requirements.
