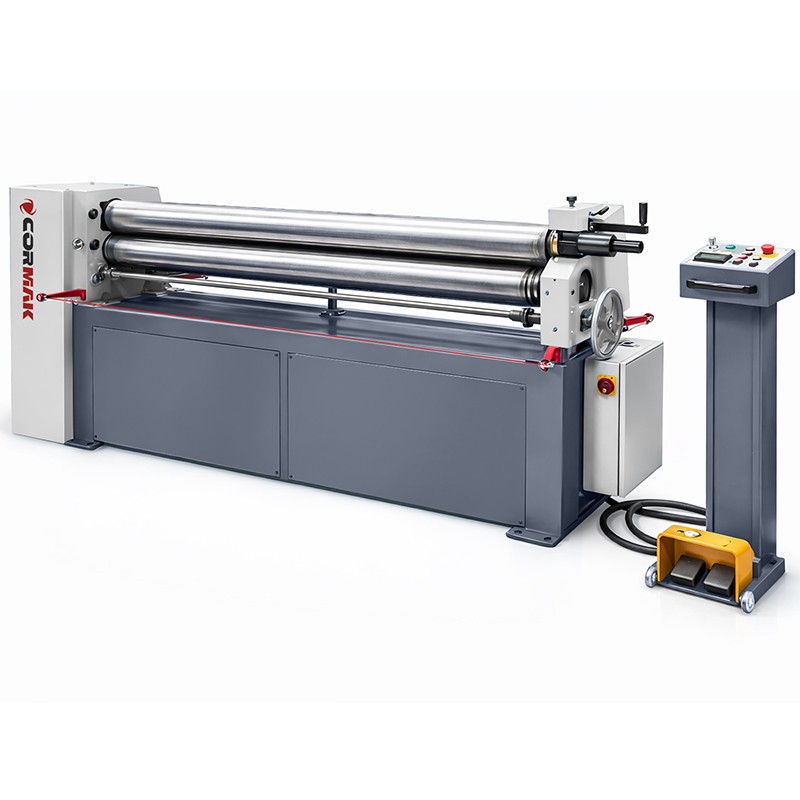

Professional three-roll machine RM-2050/150 with an asymmetric roll arrangement is designed for the production of cylindrical and conical forms of various diameters. This model is intended for bending sheet metal with a thickness of up to 4 mm and a width of up to 2050 mm. The diameter of the upper roll is 150 mm. Mechanical rolling machines of the RM series are ideal for workshops as well as craft and medium-batch production.
Sheet metal rolling machine CORMAK RM 2050x4 is a professional, three-roll machine designed for precise rolling of steel sheets up to 2050 mm in length and up to 4.0 mm in thickness (S235JR+AR). This model combines a stable construction with an efficient electric drive, ensuring process repeatability and high bending quality in production conditions.
The machine has been designed for metalworking shops, steel structure manufacturing and companies producing cylindrical and conical elements. Thanks to solid rolls of large diameter and an independent rear roll drive, the rolling machine guarantees stable operation even under maximum load.
Sheet metal rolling machines used in industry must ensure not only an appropriate working range, but also structural rigidity and repeatability of parameters. The MRC 2050x4 model meets these requirements thanks to its well-thought-out design and carefully selected components.
The machine body with a weight of approx. 1680 kg ensures adequate rigidity during rolling. This reduces vibration and directly affects the accuracy of the bending radius.

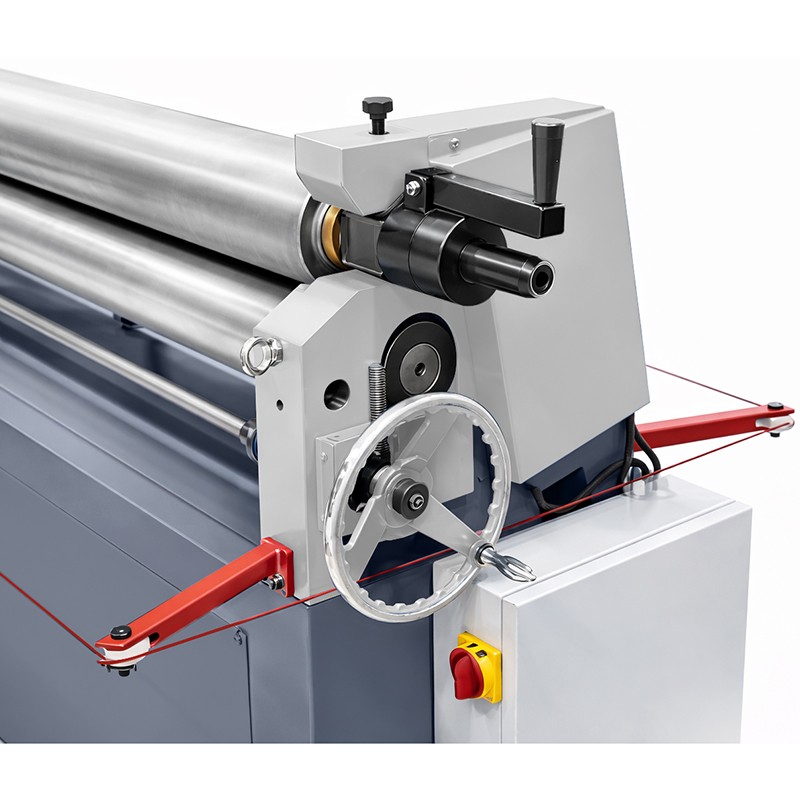

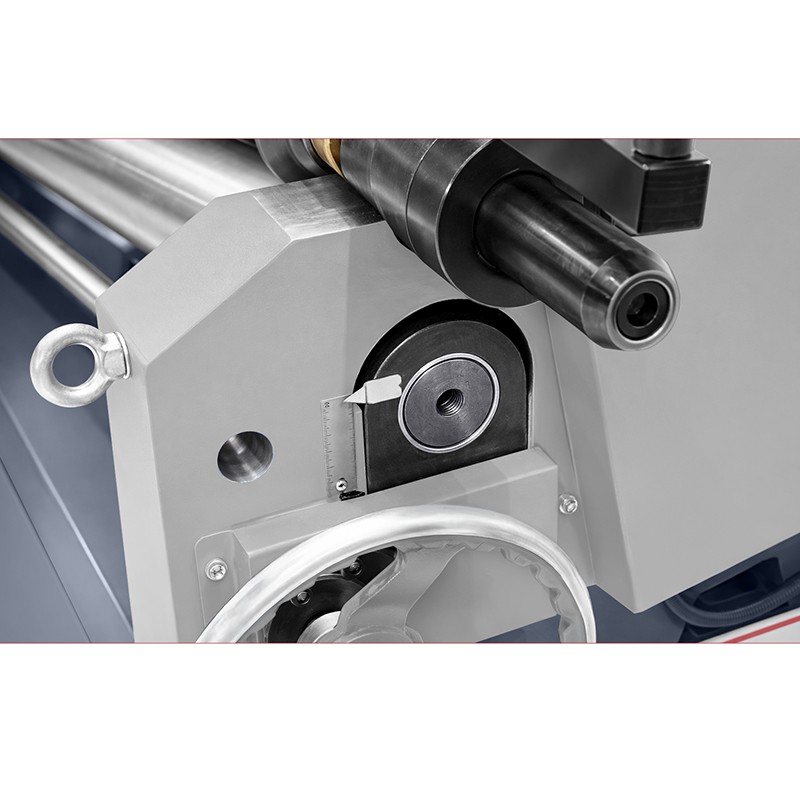

The machine is equipped with three precision-made rolls with a diameter of 150 mm. The upper roll is tilting, which facilitates removal of the finished workpiece. Adjustment of the upper and rear rolls is manual using a handwheel, allowing precise pressure setting.

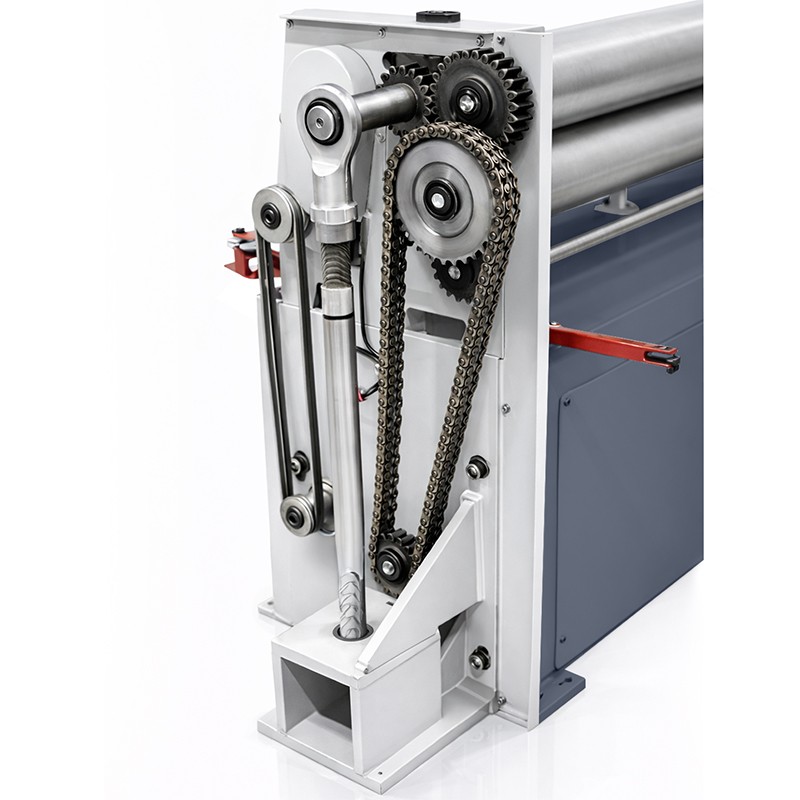

The main motor with a power of 2.2 kW and an additional rear roll drive of 1.5 kW provide stable torque at a speed of 6 rpm. A mobile foot pedal enables left and right rotation control, increasing operator ergonomics.
The large roll diameter and appropriately selected rotational speed allow controlled material forming without edge waviness. Cone bending capability (device included as standard) extends the machine’s range of applications to non-standard components.
Three grooves for wire bending in the lower and rear rolls with a limiter enable additional processing of round profiles, increasing the machine’s functionality in daily production.
| Parameter | Value |
|---|---|
| Working length | 2050 mm |
| Max. sheet thickness (S235JR+AR) | 4.0 mm |
| Pre-bending | 3.0 mm |
| Roll diameter | 150 mm |
| Minimum bending diameter | 230 mm |
| Roll rotational speed | 6 rpm |
| Width | 2800 mm |
| Depth | 1050 mm |
| Height | 1180 mm |
| Main motor power | 2.2 kW |
| Rear roll motor power | 1.5 kW |
| Weight (approx.) | 1680 kg |
Sheet metal rolling machine CORMAK RM 2050x150 is a solution for companies expecting a stable structure, precise operating parameters and repeatable bending results. Contact us to receive a detailed offer and select a configuration tailored to your production.
