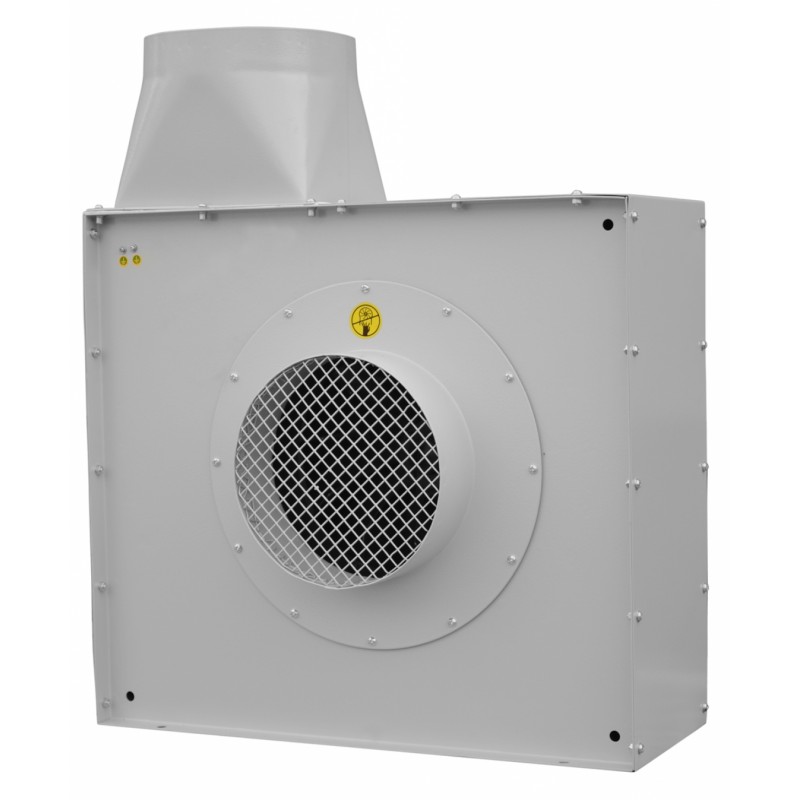

FAN4000 – high-performance radial extraction and transport blower for sawdust and dust

Transport Fan FAN4000 by CORMAK is a professional device designed for industrial systems of sawdust, dust and chip extraction. Thanks to the use of a radial fan and a powerful 4kW motor, this model achieves an impressive airflow rate of 6500m³/h, making it an ideal solution for large woodworking and production facilities. Designed for continuous operation, it enables efficient cooperation with multiple machines generating dry waste.

Main advantages of the machine

• Airflow 6500m³/h – effective removal of airborne contaminants from multiple workstations
• Motor 4.0kW / 400V – suitable for use in industrial installations
• Rotational speed 2850rpm – stable operation even under heavy load
• Large nozzle diameters – Ø250mm (inlet and outlet) – easy integration with ducts and extraction systems
• Compact dimensions – 670 × 600 × 600mm – easy installation in confined technical spaces
• Robust steel housing – resistant to vibration, damage and corrosion

Construction and technology

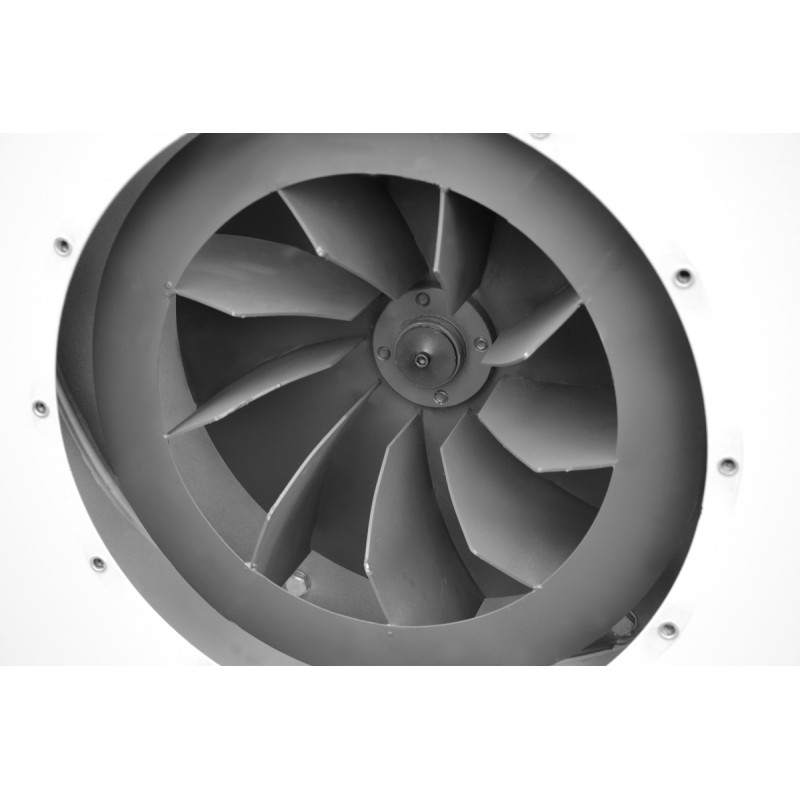

The FAN4000 is designed for operation in demanding industrial environments. Its core component is a radial fan with a dynamically balanced impeller mounted directly on the motor shaft. This configuration minimises power losses and eliminates the need for drive belts. The powder-coated steel housing protects the mechanism from dust, moisture and chemical agents. The use of high-quality bearings extends the service life of the unit and ensures quiet operation.

Precision and performance

Thanks to its high airflow capacity, the FAN4000 sawdust blower effectively removes large amounts of dry waste in real time. By maintaining constant negative pressure in the extraction system, it prevents filter, duct and machine clogging. This is essential for maintaining process stability and protecting machine components from excessive wear. The fan works perfectly as a central sawdust extraction unit in integrated dust collection systems.

Applications

FAN4000 sawdust extraction fan is used in various industries, including:

• industrial woodworking,
• furniture, window and door manufacturing,
• wood, MDF and HDF processing workshops,
• dust extraction systems for CNC machines and machining centres,
• chip and sawdust transport lines to silos or containers.

Standard equipment

• Three-phase motor 4.0kW, 400V
• Radial impeller mounted directly on the shaft
• Powder-coated steel housing
• Inlet nozzle Ø250mm
• Outlet nozzle Ø250mm

Optional equipment

• Flexible suction and discharge hoses Ø250mm
• Connection reducers and adapters for machines
• Cyclone separators and end filters
• Flap valves, bends and T-ducts
• Automatic start-up systems synchronised with the machine

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.

Technical data – Radial Extraction and Transport Blower FAN4000

FAN4000 is an industrial extraction and transport blower that combines high performance with a durable construction. By choosing this model, you invest in efficient sawdust extraction and a safe working environment. Contact a CORMAK technical consultant to select the right configuration and accessories tailored to your production needs.
