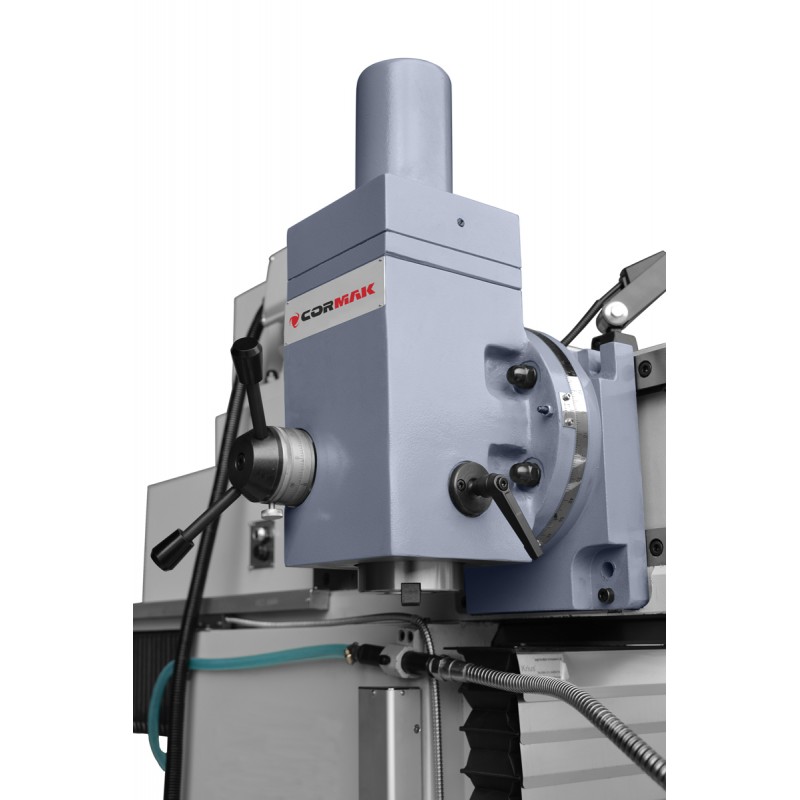

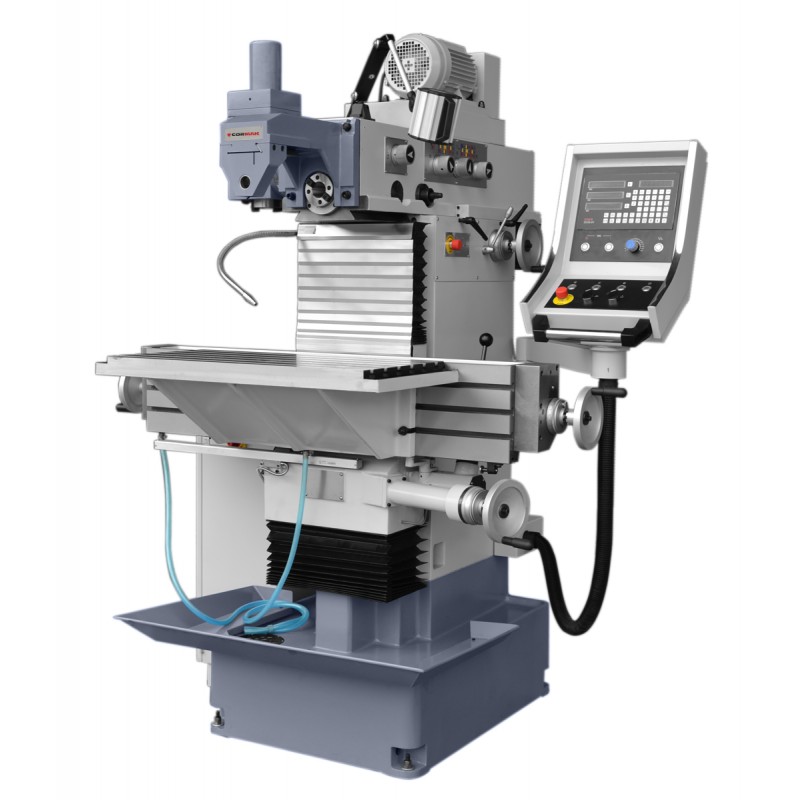

The CORMAK XN840 Toolroom Milling Machine is ideal for the production of high-quality components. Designed primarily for toolrooms, it offers versatile machining capabilities thanks to its swivelling vertical head and horizontal milling setup.
When equipped with the appropriate tooling, the milling machine can perform operations such as:
|
Table dimensions |
800 mm x 400 mm |
|
Number of T-slots |
6 |
|
T-slot width |
14 mm |
|
Vertical table dimensions |
1200 x 250 mm |
|
Number of vertical table T-slots |
3 |
|
Vertical table T-slot width |
14 mm |
|
T-slot spacing |
63 mm |
|
Distance between table surface and column |
165 mm |
|
Maximum table load |
200 kg |
|
Spindle taper |
ISO40 |
|
Distance between horizontal spindle and table |
180 - 580 mm |
|
Distance between vertical spindle and table |
150 - 550 mm |
|
Swivel range of vertical milling head |
±60° |
|
Maximum distance from spindle centre to column guide |
565 mm |
|
Spindle speed range (vertical and horizontal) |
40–2000 rpm (18 steps) |
|
Feed speed (X/Y/Z) |
5–500 mm/min |
|
Rapid feed speed (X/Y/Z) |
1200 mm/min |
|
Feed motor power |
1.3 kW |
|
Main motor power |
3.0 kW |
|
Coolant pump motor power |
0.9 kW |
|
Overall dimensions |
1740 x 1540 x 2012 mm |
|
Weight |
2450 kg |
